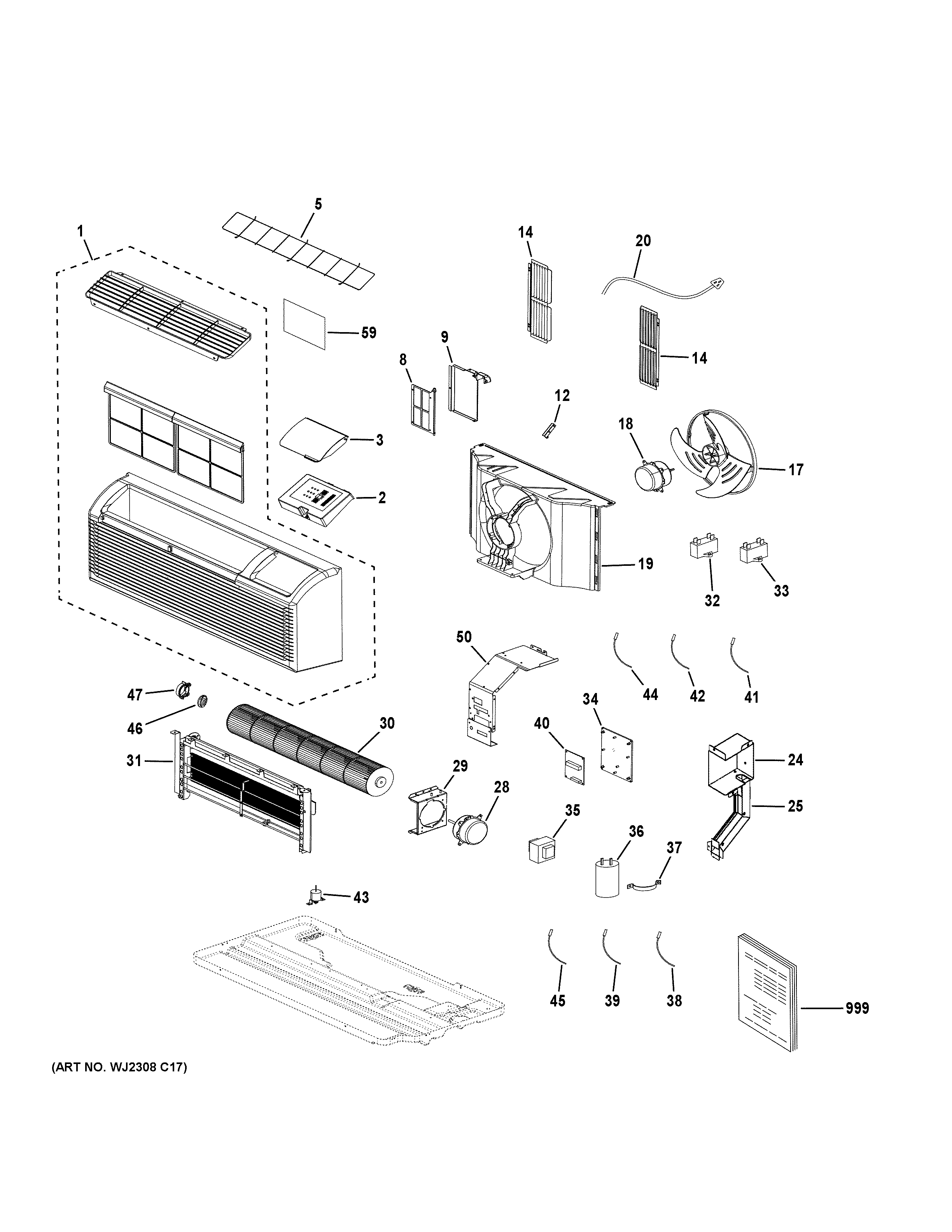

AH12H09E3BK1 ROOM AIR CONDITIONER

Products

Position	Product
1	WP71X24798 GE Room Front Assembly
2	WP76X27489 GE Appliance Housing Assembly
3	UI HOUSING COVER
5	WP71X24879 GE Wire Grid
8	WP85X24872 GE Vent Door Filter
9	WP76X24875 GE Vent Door Assembly
12	WP65X24876 GE Vent Door Rod
14	WP71X24878 GE Horizontal Louver
17	WP73X24870 GE Outdoor Fan
18	WP94X27474 GE Outdoor Fan Motor
19	WP76X24871 GE Outdoor Fan Shroud
20	WP35X28699 GE Assembly Power Cord
24	WP76X29134 GE Junction Box
25	WP76X29133 GE Chase Way Assembly
28	INDOOR FAN MOTOR
29	WP65X33477 GE Indoor Fan Motor Bracket
30	WP73X24869 GE Indoor Fan
31	WP70X33478 GE Heater 3500W
32	WP20X28693 GE Capacitor Fan Motor
33	FAN MOTOR CAPACITOR
34	MAIN CONTROL BOARD
35	WP27X28697 GE Transformer Linear
36	WP20X27491 GE Compressor Capacitor
37	WP01X27484 GE Clamp Capacitor
38	WP26X27479 GE Thermistor
39	DISCHARGE THERMISTOR
40	WP26X27488 GE Air Conditioner Thermostat Board
41	WP26X27478 GE Thermistor
42	PIPE THERMISTOR
43	WP26X24900 GE Drain Valve
44	INDOOR THERMISTOR
45	WP26X27481 GE Thermistor
46	FAN BEARING
47	BEARING BRACKET
50	MAIN CONTROL BOARD FRAME
59	WP71X29273 GE Wall Thermostat for Hotpoint Use
999	PM OWNERS MANUAL
