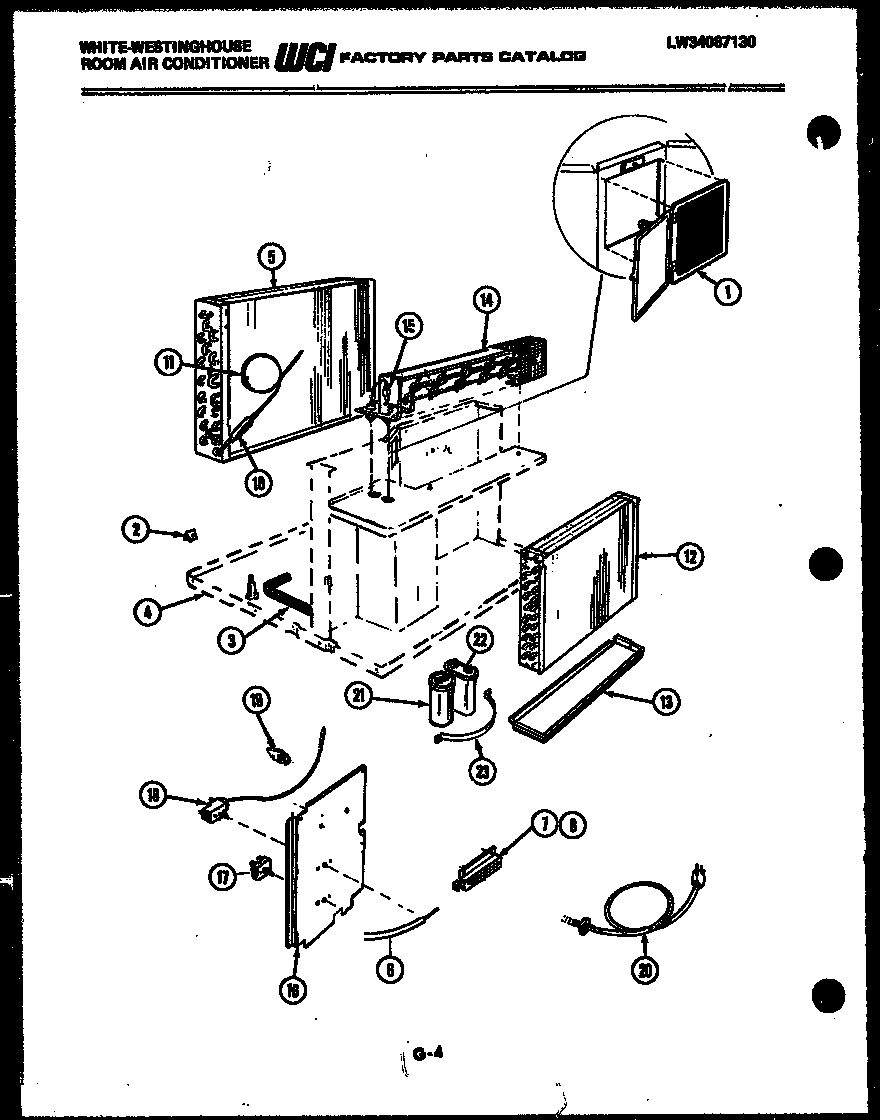

AH15EK2T1 03 – ELECTRICAL PARTS

Products

Position	Product
1	WCI 2627D77H02
2	WCI C313218
3	HOSE, DRAIN
4	CLIP-DRAIN TUBE (NON-ILLUSTRATED)
5	WCI 2627D49A10
6	CABLE VENT
7	BRKT-ACTUATOR
8	WCI A350804
9	VALVE-DRAIN (NON-ILLUSTRATED)
10	WCI A265301
11	WCI A112104
12	WCI A409407
13	TRAY EVAP.
14	HEATER ASSY
15	THERMOS-HEATER
16	WCI A462504
17	SWITCH, SELECTOR
18	WCI A365802
19	CLIP-BULB
20	WCI A435021
21	CAPACITOR-COMP.
22	FAN CAPACITOR
23	WCI A116301
