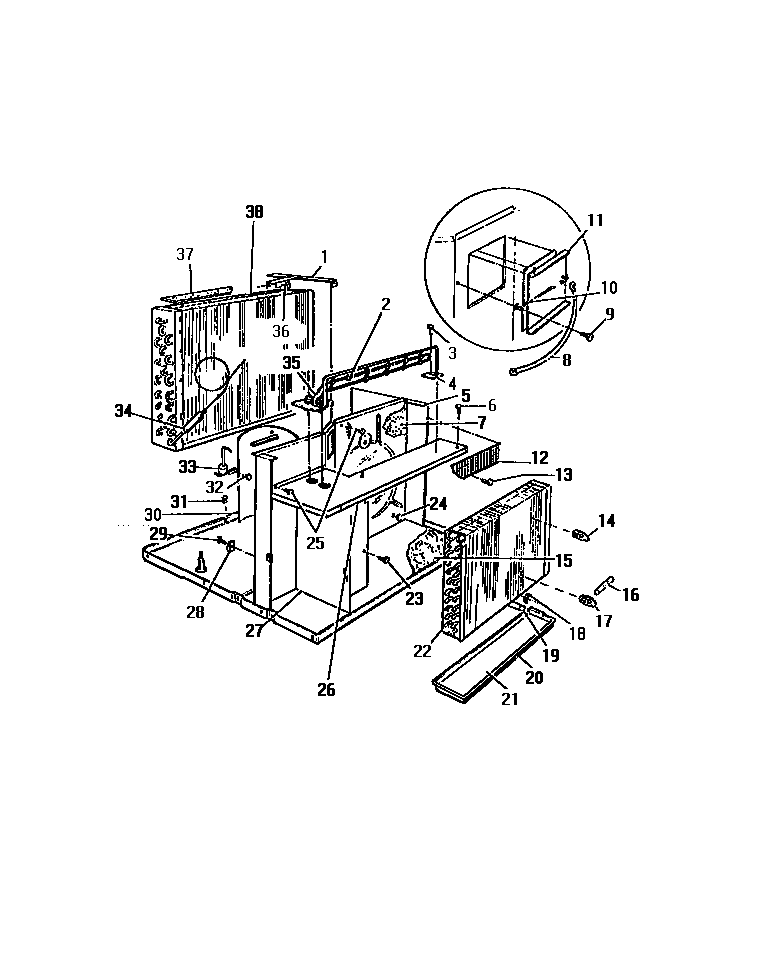

AH8MECUC2 19 – EVAPORATOR, CONDENSER (`B` CABINET – Aparts

AH8MECUC2 19 – EVAPORATOR, CONDENSER (`B` CABINET

Products

Position	Product
1	WCI 8007696
2	WCI 9948988
3	SCREW-SCROLL
4	WCI 8009091
5	WCI 8007689
7	INSULATION-REAR
8	CABLE-VENT DOOR
10	WCI 8003049
11	WCI 8003023
12	WCI 8006842
15	WCI 8007537
16	INSULATOR-TUBE
16	4`` INSULATOR
17	CLIP-CAP. TUBE
18	WCI 8009027
19	WCI 8009022
20	WCI 8007535
21	TRAY
22	WCI 8013718
22	WCI 8014111
24	WCI 8007565
26	PARTITION-HORIZONTAL
26	WCI 8011108
27	DIVIDER-VERTICAL
28	WCI 8009025
29	SCREW (4)
30	WCI 8007703
31	CLIP-CONDENSER
32	WCI 8007702
33	WCI 8007698
34	DRIER
35	WCI 9948813
36	WCI 8002951
37	CONDENSER, TOP
37	WCI 8007704
38	WCI 8013765
38	WCI 8014108
