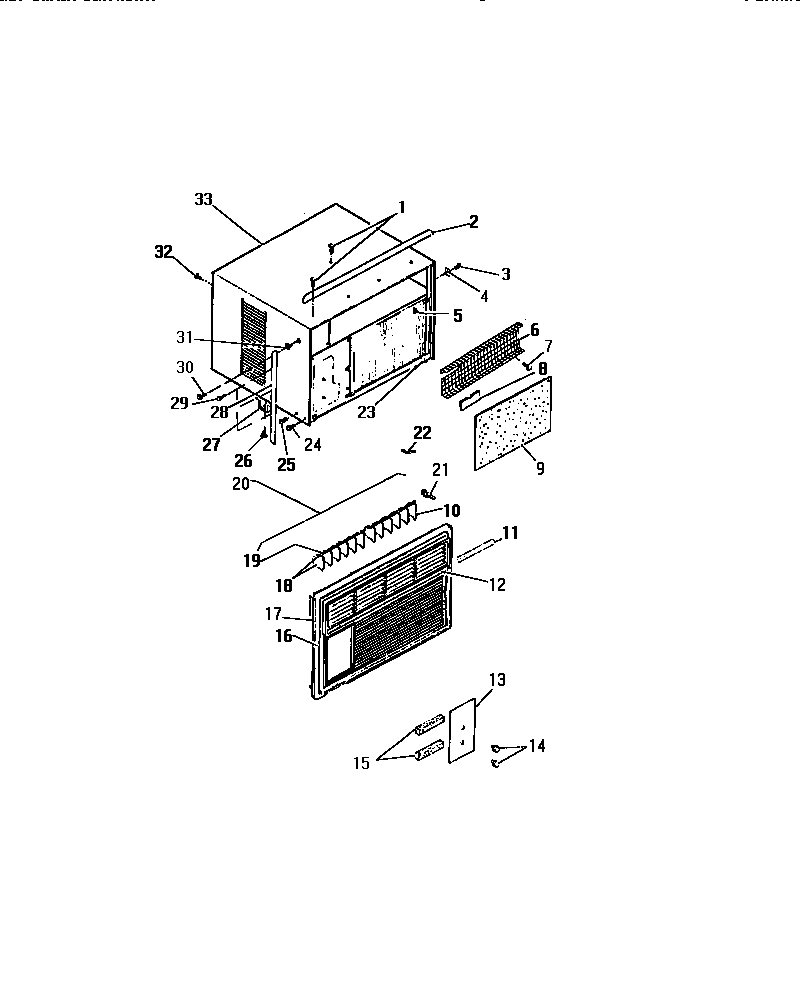

AH8MECUD2 07 – CABINET, FRONT (`AAA` CABINET MODEL
Products
| Position | Product |
|---|---|
| *23125 | WCI 8007474 |
| 2 | WCI 8007493 |
| 5 | CLIP-CAP. TUBE |
| 6 | WCI 8013091 |
| 7 | SCREW-SCROLL |
| 8 | WCI 8012956 |
| 9 | WCI 8009018 |
| 11A | WCI 8013056 |
| 13 | WCI 8016170 |
| 14 | WCI 8016109 |
| 15 | SEAL |
| 16 | WCI 8016232 |
| 17 | WCI 8007461 |
| 18 | LOUVER (12) |
| 20 | WCI 8016233 |
| 21 | WCI 8013141 |
| 22 | WCI 8009030 |
| 23 | CLIP (2) |
| 25 | SCREW (4) |
| 26 | SCREW (2) |
| 27 | SUPPORT |
| 28 | RETAINER (2) |
| 29 | SCREW |
| 30 | SCREW-FRONT LOCKING |
| 31 | NUT |
| 32 | SCREW |
| 33 | SHELL |
