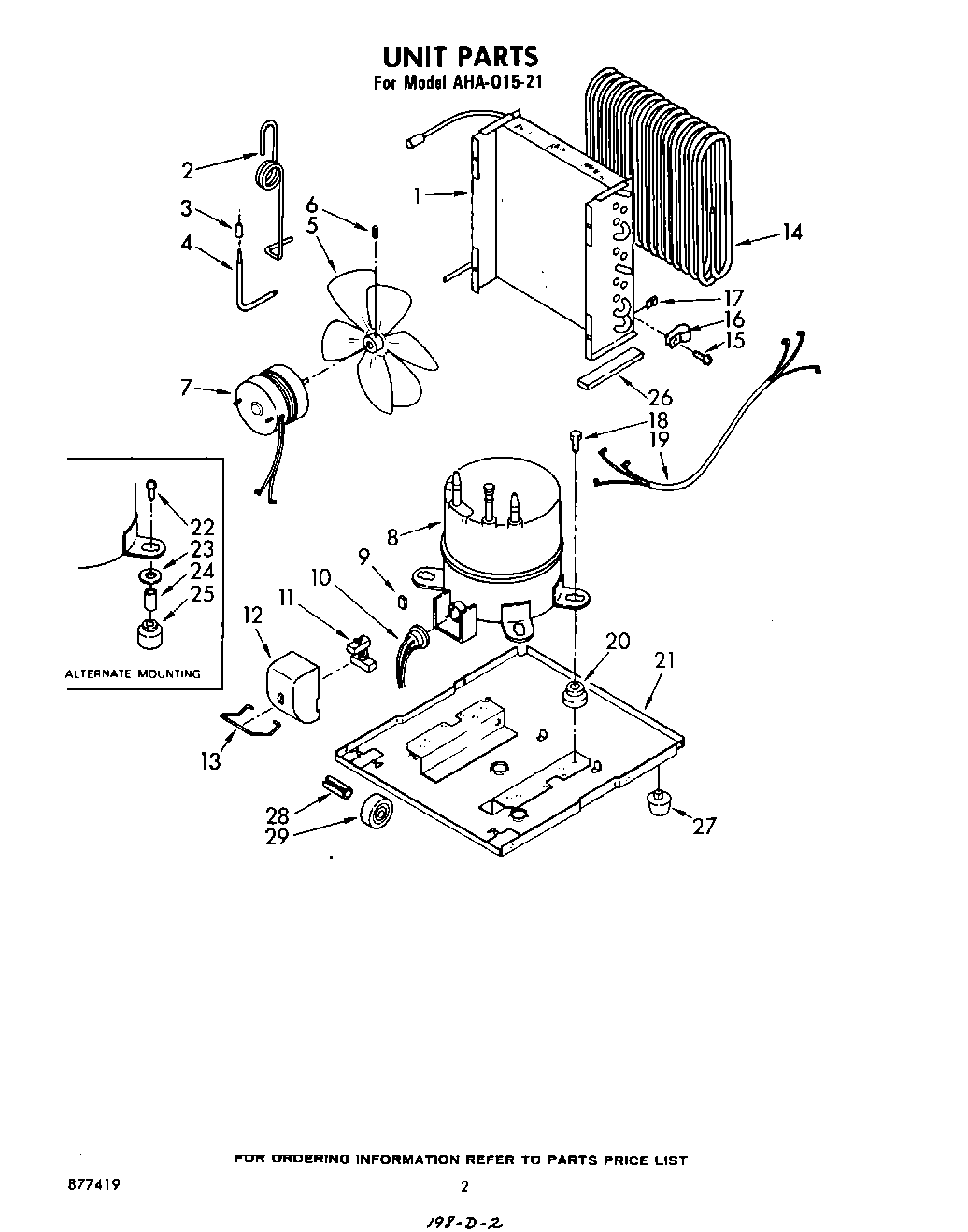

AHA01521 02 – SECTION

Products

Position	Product
1	Condenser
2	Tube, Restrictor
3	Strainer
4	Tube, Outlet (Includes No.3)
5	Blade, Fan (Includes Setscrew, Part No. 488035)
6	Setscrew, 1/4 x 5/16
7	Motor, Fan
8	Compressor
9	Bumper
10	Overload
11	4318083 Whirlpool Air Conditioner Start Relay
12	Case, Relay
13	Spring
14	Evaporator
15	WP488729 Whirlpool Refrigerator Door Screw
16	488946 Whirlpool Air Conditioner Clamp
17	488660 Whirlpool Refrigerator Nut
18	Screw, 1/4-28 x 1“ (4)
19	Harness, Wiring
20	Grommet (4)
21	Base
22	xScrew, 1/4-28 x 1-1/4
23	xWasher, Cup
24	xSleeve
25	Grommet, Compressor (3)
26	Seal
27	Glide (2)
28	Pin, Roller (2)
29	Roller (2)
