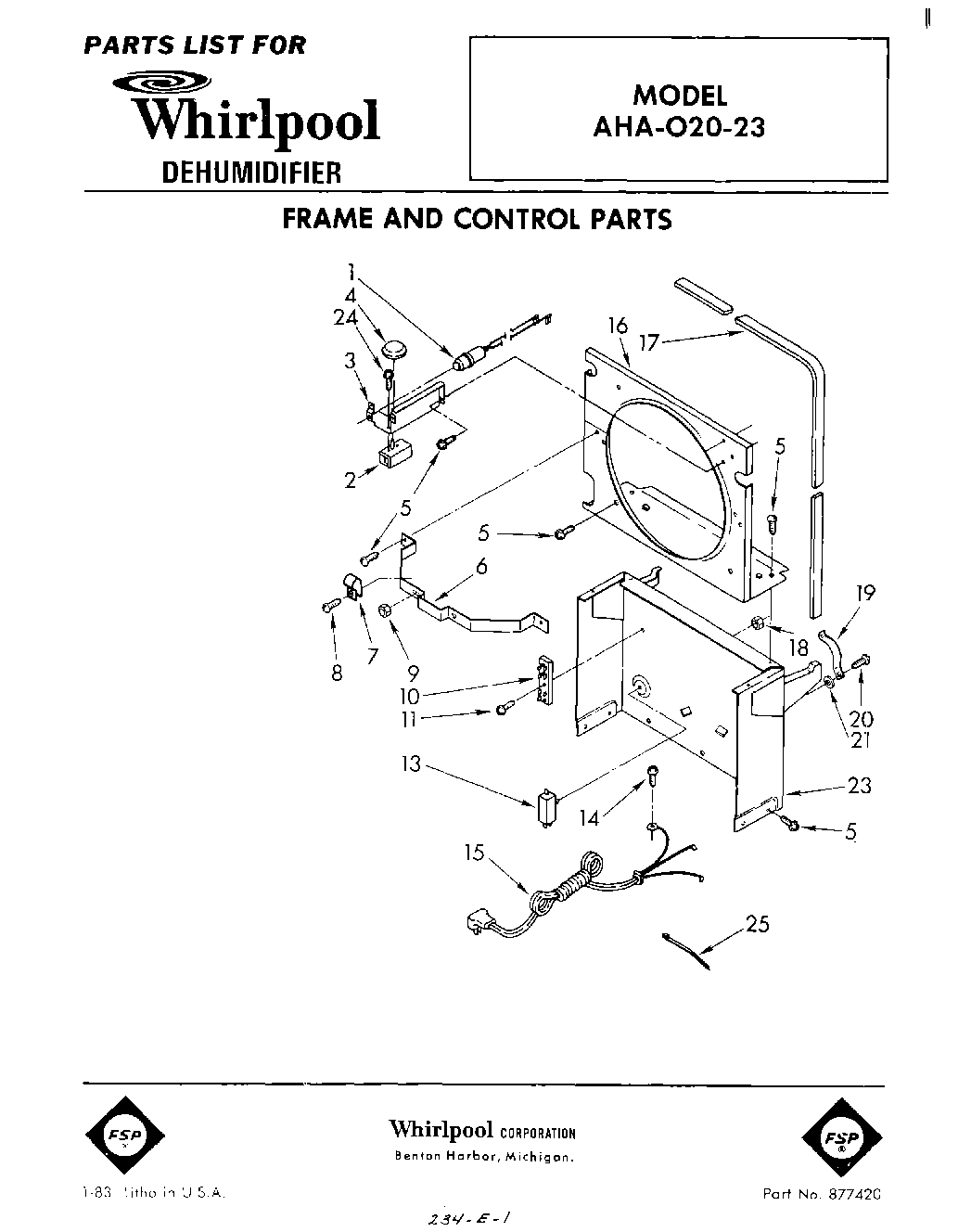

AHA02023 01 – SECTION

AHA02023 01 – SECTION

Written by

in

AHA02023 01 – SECTION

Products

PositionProduct
1Light Assembly
2Humidistat Assembly
3Bracket, Humidistat & Light Assembly
4Knob, Humidistat Control
5Screw, 8 x 3/8
6Bracket, Fan Motor Mounting
7488946 Whirlpool Air Conditioner Clamp
8WP488729 Whirlpool Refrigerator Door Screw
9WP488130 Whirlpool Air Conditioner Nut
10Board, Terminal
11WPL 488966
13Switch, Water Level Control
15Cord, Appliance
16Plate, Orifice
17Seal
18Palnut, 3/8-32
19Spring, Water Level
20WP489069 Whirlpool Compactor Screw
21Washer (Repair) (.091 Thickness)
21Washer, Repair (.045 Thickness)
21Washer (Repair) (.062 Thickness)
23Support
24WP488234 Whirlpool Air Conditioner Screw
25WPW10339879 Whirlpool Wire Tie
