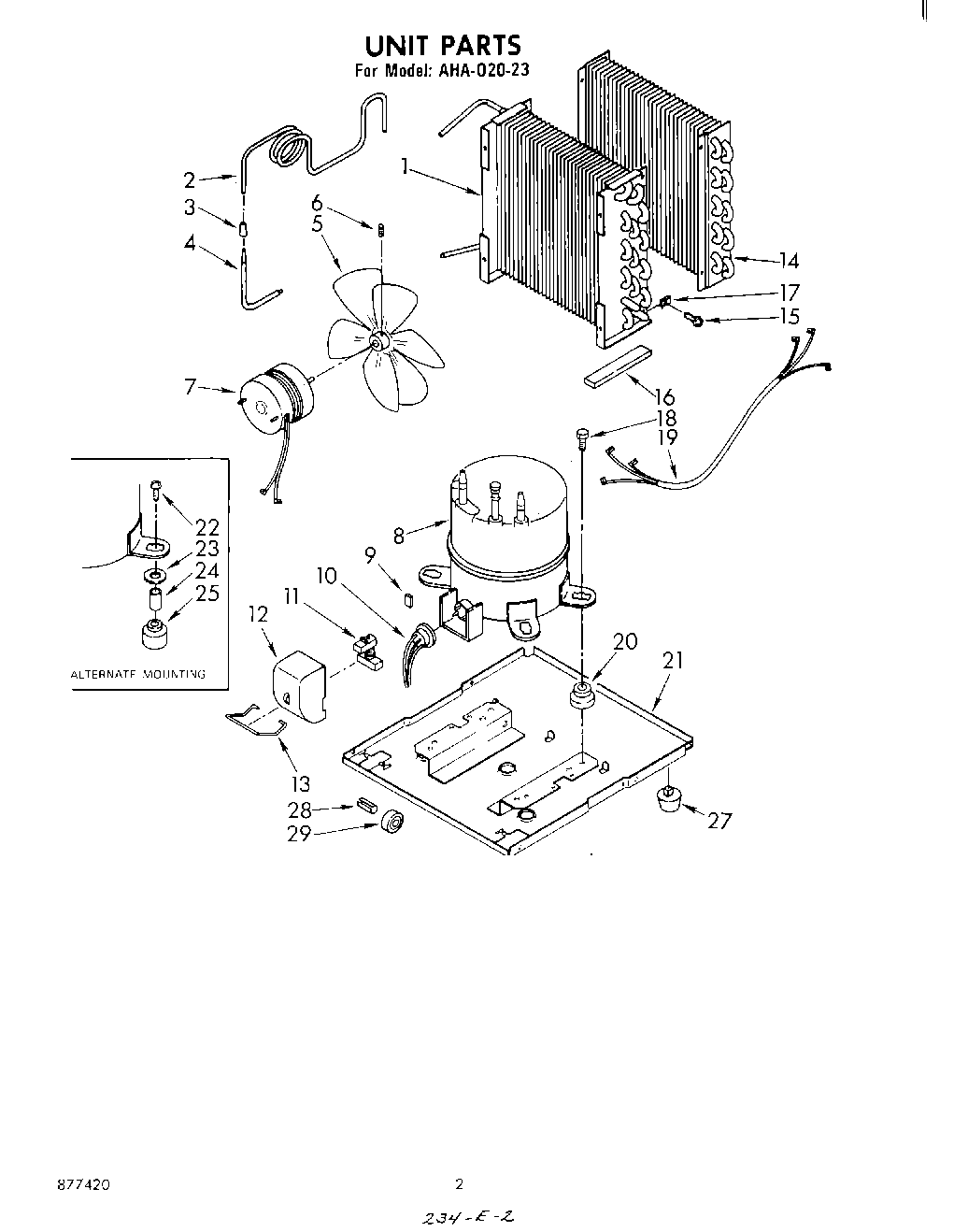

| 1 | Condenser |
| 2 | Tube, Restrictor |
| 3 | Strainer |
| 4 | Tube, Outlet (Includes No.3) |
| 5 | Blade, Fan (Includes Setscrew, Part No. 488035) |
| 6 | Setscrew, 1/4 x 5/16 |
| 7 | Motor, Fan |
| 8 | Compressor |
| 9 | Bumper |
| 10 | Overload |
| 11 | 4318083 Whirlpool Air Conditioner Start Relay |
| 12 | Case, Relay |
| 13 | Spring |
| 14 | Evaporator |
| 15 | Screw, 8 x 3/8 |
| 16 | Seal |
| 17 | 488660 Whirlpool Refrigerator Nut |
| 18 | Screw, 1/4-28 x 1`` (4) |
| 19 | Harness, Wiring |
| 20 | Grommet (4) |
| 21 | Base |
| 22 | xScrew, 1/4-28 x 1-1/4 |
| 23 | xWasher, Cup |
| 24 | xSleeve |
| 25 | Grommet, Compressor (3) |
| 27 | Glide (2) |
| 28 | Pin, Roller (2) |
| 29 | Roller (2) |
