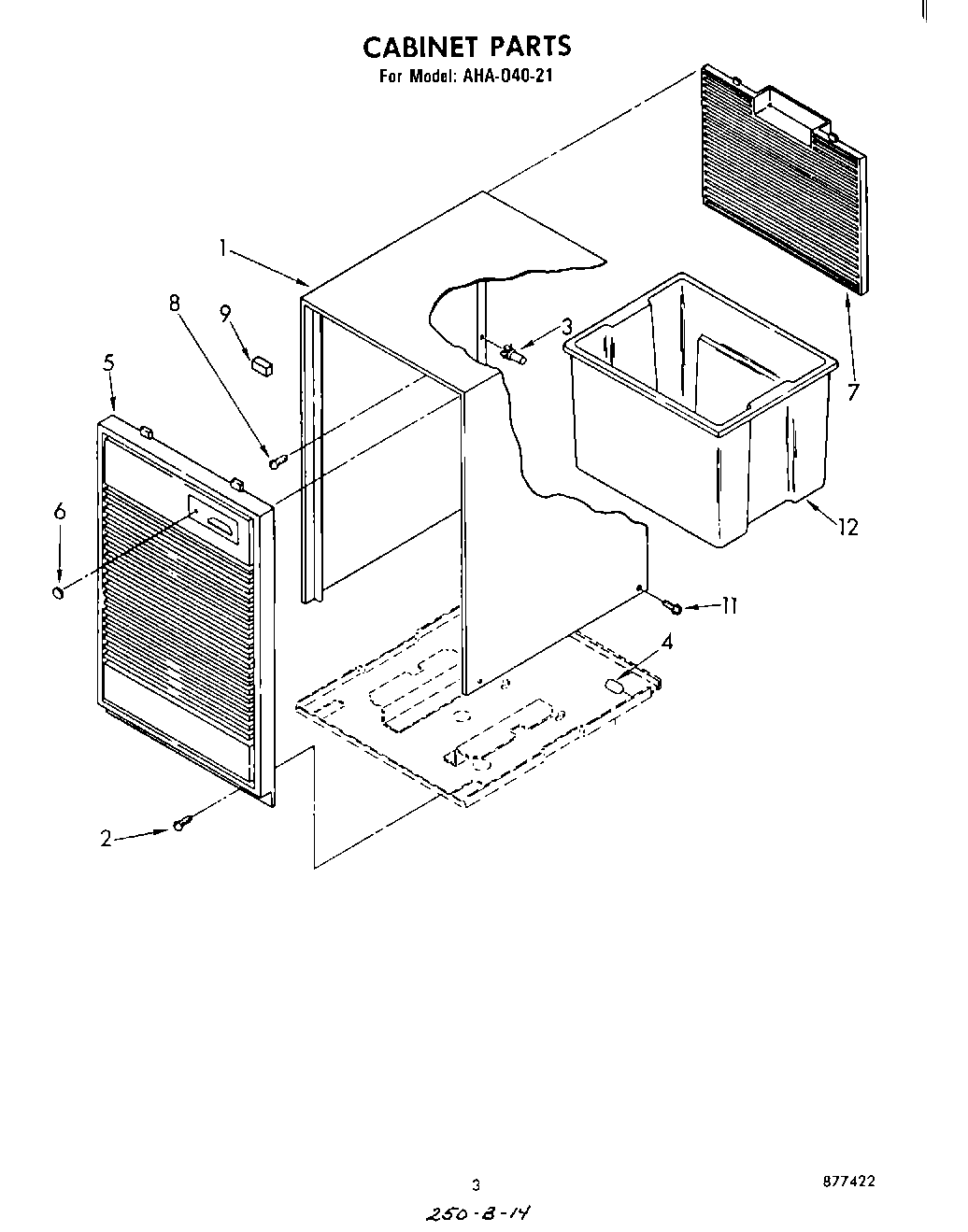

AHA04021 03 – SECTION

Products

PositionProduct
1Cabinet
2WPW10141625 Whirlpool Refrigerator Screw Assembly
3Retainer Pin (Rear Grille)
4cap, thread
5Grille, Front
6Lens, Light
7Grille, Rear
8WP488729 Whirlpool Refrigerator Door Screw
9Spacer, Grille
11Screw, 8-32 x 3/8 (6)
12Pan, Condensate
12Guide, Use & Care
12List, Repair Parts
12Sheet, Service Tech
12Cap, Condensate Pan
12VALVE, ACCESS (5/8“)
12WP16123 Whirlpool Washer
12978026 Whirlpool Refrigerator Primary Valve
12978027 Whirlpool Refrigerator Primary Valve
12978030 Whirlpool Refrigerator Valve
12WP978025 Whirlpool Refrigerator Valve
12VALVE, ACCESS (1/2“)
12WPL 799351
12Kit, Evaporator Repair (Aluminum Epoxy)
12Lacquer, Starlight Gray (1/2 Pt. Uncut)
12No Drip Tape (For Sweating Tubes)
12Guide, Consumer Buy
