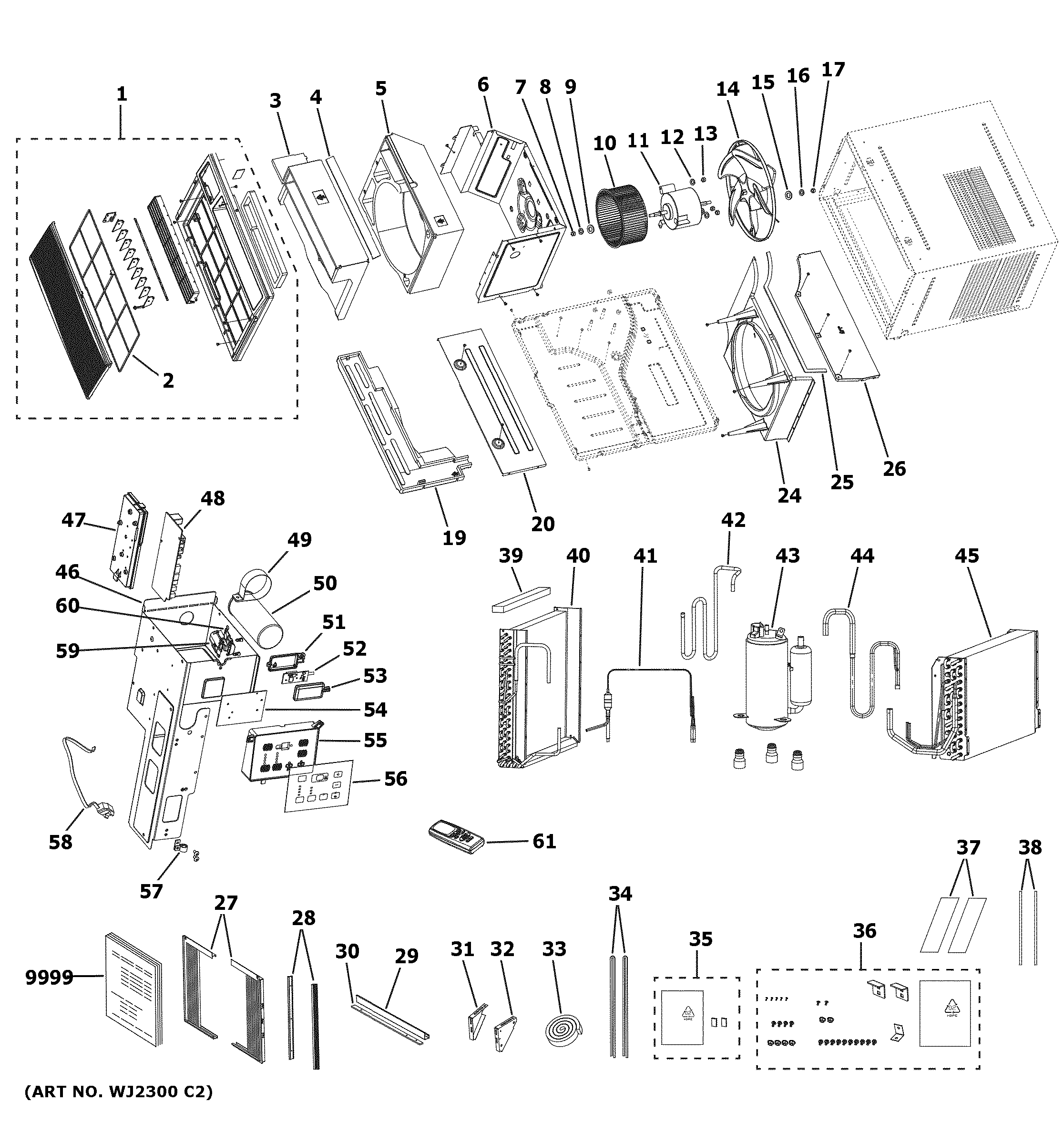

AHC24DYL1 ROOM AIR CONDITIONERadmin2025-04-26T08:37:45+00:00AHC24DYL1 ROOM AIR CONDITIONER ProductsPositionProduct1WJ71X23462 GE Air Conditioner Front Panel Assembly2WJ71X10710 GE Air Conditioner Filter3WJ76X10338 GE Foam Air Outlet4WJ01X24841 GE Foam5WJ76X10310 GE Propeller Housing6WJ01X20212 GE Motor Support Assembly7WJ01X10265 GE Washer Nut8WJ43X10075 GE Gasket (Diameter 10mm)9WJ01X10266 GE Washer Assembly10WJ73X21249 GE Centrifugal Fan11WJ95X10036 GE Air Conditioner Fan Motor12WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)13WJ01X10329 GE Air Conditioner Nut14WJ73X21247 GE Air Conditioner Axial Flow Fan15WJ43X10076 GE Gasket Diameter 8mm16WJ43X10077 GE Gasket (Diameter 8mm)17WJ01X10374 GE Levo Nut (M8)19WJ05X10064 GE Water Tray20WJ79X10244 GE Top Plate24WJ88X21256 GE Condenser Cover25WJ66X10094 GE Sponge Rear Clapboard26WJ79X10246 GE Top Plate27WJ86X23363 GE Air Conditioner Curtain Assembly28WJ68X23364 GE Air Conditioner Support Cabinet29WJ82X23361 GE Air Conditioner Top Guide30WJ43X10082 GE Gasket Form31WJ65X30606 GE Support Triangle Left32WJ65X30605 GE Support Triangle Right33WJ43X10079 GE Window Top Foam Gasket34WJ43X10080 GE Window Seal Sash35WJ01X10415 GE Hardware Kit36WJ01X21257 GE Installation Hardware37WJ43X21258 GE Sealing Sponge39WJ43X20215 GE Condenser Support40WJ88X21929 GE Condenser Assembly41WJ53X21927 GE Air Conditioner Capillary Assembly42DISCHARGE TUBE43WJ98X21928 GE Compressor and Fittings Assembly44WJ53X21933 GE Inhalation Tube Subassembly45WJ87X21931 GE Air Conditioner Evaporator Assembly46WJ26X24842 GE Electric Box Assembly47WJ26X24833 GE Mount Board48WJ26X24837 GE Air Conditioner Main Control Board49WJ02X10033 GE Capacitor Clamp50WJ20X24725 GE Capacitor51WIFI BOX COVER52WIFI MODULE53WIFI BOX54WJ26X21846 GE Air Conditioner Display Board55WJ07X20210 GE LCD Cover56WJ01X24838 GE Membrane57CABLE CLAMP58WJ35X24839 GE Power Cord59WJ79X10255 GE OLP Cover60WJ23X10162 GE Overload Protector61WJ26X20522 GE Air Conditioner Remote Controller9999PM MINI MANUAL AND WIRING9999PM OWNERS AND INSTALL
