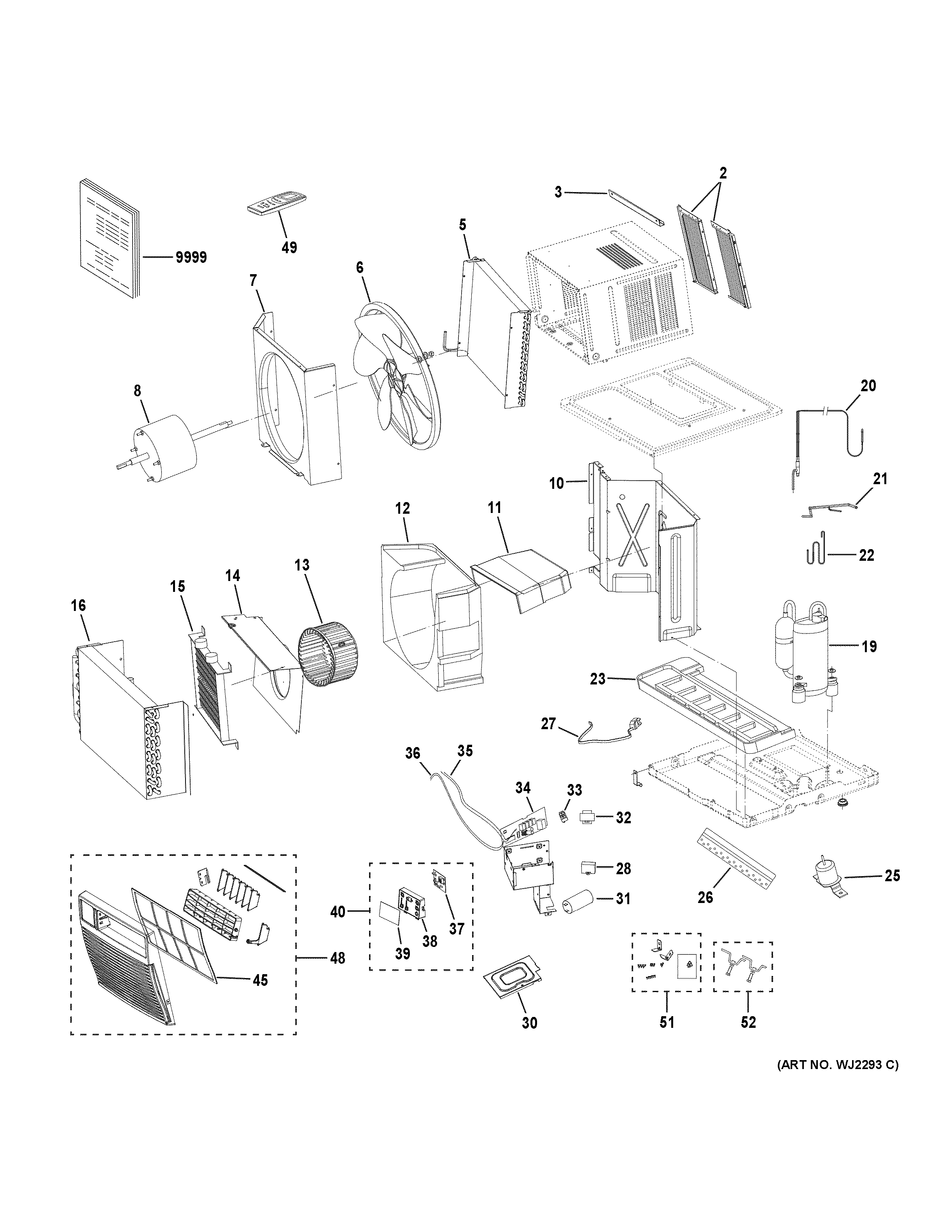

AHE08AXL1 ROOM AIR CONDITIONER

Products

Position	Product
2	WJ01X10359 GE Curtain Assembly
3	WJ68X10063 GE Air Conditioner Top Guide Assembly
5	GEN WJ88X10220
6	WJ73X20314 GE Air Conditioner Axial Flow Fan
7	GEN WJ79X10206
8	WJ95X10029 GE Air Conditioner Fan Motor
10	WJ65X24281 GE Insulation Plate
11	WJ76X10340 GE Air Conditioner Upper Airflow Housing
12	WJ76X10255 GE Lower Snail Shell
13	WJ73X20320 GE Air Conditioner Centrifugal Fan Assembly
14	WJ65X24280 GE Heater Cover
15	WJ27X10167 GE Air Conditioner Electric Heater
16	WJ88X10264 GE Evaporator Assembly
19	WJ01X10435 GE Rubber Grommet
20	WJ53X24283 GE Capillary Tube
21	WJ57X10025 GE Suction Pipe
22	DISCHARGE TUBE
23	WJ70X10058 GE Drain Pan
25	WJ58X10044 GE Drain Valve
26	WJ26X24282 GE Thermal Control
27	WJ35X10136 GE Air Conditioner Power Cord (LCDI)
28	WJ20X22690 GE 15µF Capacitor
30	WJ26X10279 GE Electric Box Cover
31	WJ20X20441 GE Air Conditioner CBB65 Capacitor
32	WJ27X10170 GE Transformer
33	TERMINAL BOARD
34	WJ29X10052 GE Air Conditioner Main Board
35	WJ26X25108 GE Temperature Sensor
36	WJ27X10168 GE Air Conditioner Room Temperature Sensor
37	WJ26X10375 GE Air Conditioner Display Board
38	WJ82X10099 GE Air Conditioner Control Panel
39	WJ07X10265 GE Air Conditioner Escutcheon
40	WJ26X20612 GE Air Conditioner Display Board Assembly
45	WJ71X20614 GE Air Conditioner Filter
48	WJ71X10777 GE Air Conditioner Front Panel Assembly
49	WJ26X20522 GE Air Conditioner Remote Controller
51	WJ01X20615 GE Installation Hardware Assembly
52	WJ79X10208 GE Air Conditioner Mounting Rack Assembly
9999	PM MINI-MANUAL
9999	PM USE & CARE
