AHEK24ACW1 ROOM AIR CONDITIONER

AHEK24ACW1 ROOM AIR CONDITIONER

Written by

in

AHEK24ACW1 ROOM AIR CONDITIONER

Products

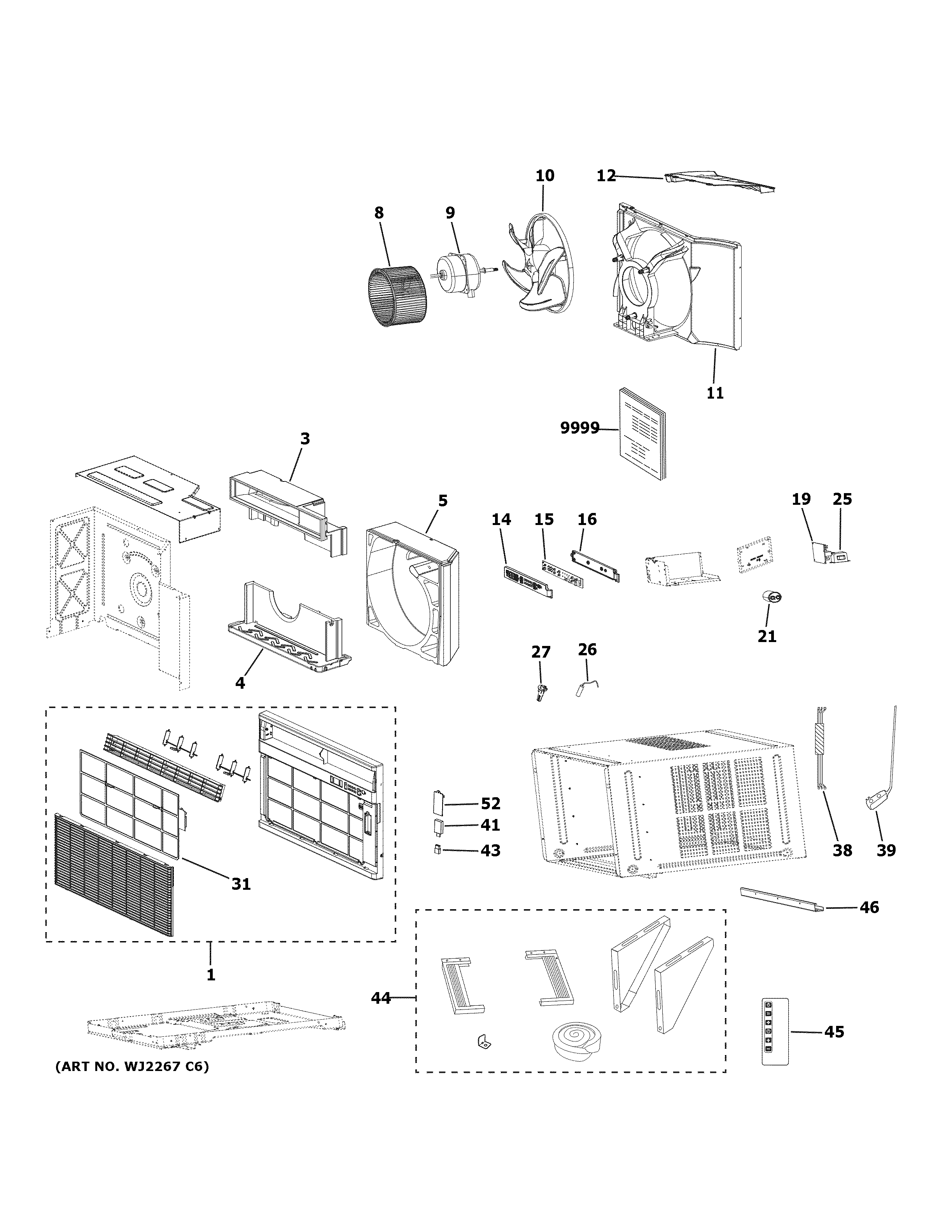

PositionProduct
1WJ71X24435 GE Air Conditioner FrontPanel Assembly
3WJ76X25899 GE Upper Indoor Fan Shroud
4WJ76X25900 GE Indoor Fan Shroud
5WJ76X25901 GE Indoor Fan Shroud Lower
8WJ73X25902 GE Indoor Fan Blade
9WJ94X25904 GE Air Conditioner Fan Motor
10WJ73X20130 GE Air Conditioner Axial Fan
11WJ76X23948 GE Outdoor Shroud Fan
12WJ76X20154 GE Rear Cover Board
14WJ26X23868 GE Air Conditioner UI Board Cover
15UI BOARD
16WJ26X23867 GE Air Conditioner UI Board Support
19WJ26X27741 GE Air Conditioner Main Control Board
21WJ20X24430 GE Capacitor
25TRANSFORMER
26WJ26X22173 GE Air Conditioner Thermistor
27WJ01X23351 GE Induction Thermo Pipe Clip
31WJ85X23947 GE Air Conditioner Filter
38WJ36X10023 GE Harness
39POWER CORD
41WJ26X28017 GE Wi-Fi Module
43WJ35X23893 GE Wiring Harness
44WJ01X25911 GE Air Conditioner Installation Parts
45WJ26X27734 GE Remote
46WJ86X23672 GE Top Rail
52WJ76X23891 GE Air Conditioner Cover Board
9999PM MINI MANUAL AND WIRING
9999PM OWNERS AND INSTALL
