AHES09D2XXA1 ROOM AIR CONDITIONER

Products

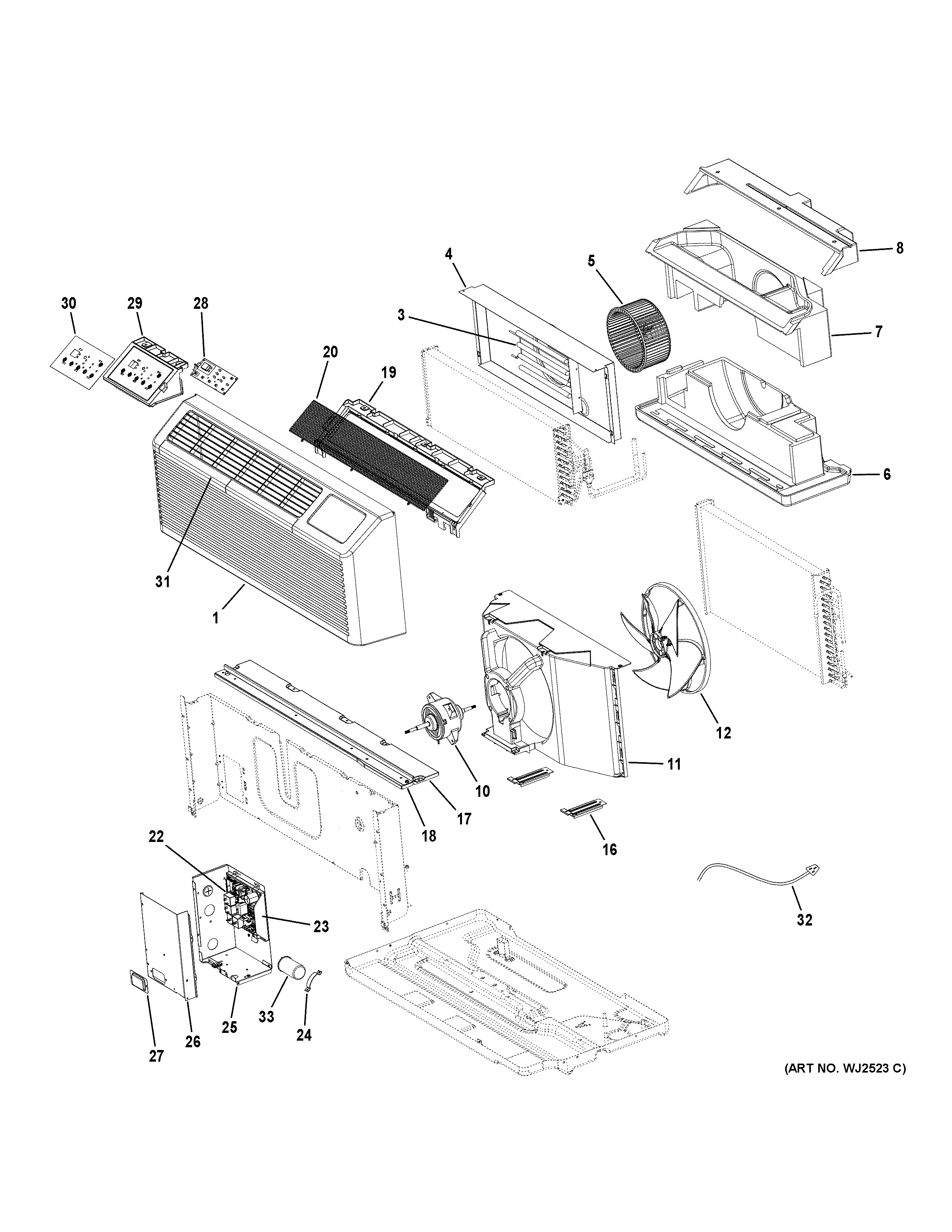

PositionProduct
1FRONT PANEL
3HEATER ASSEMBLY
4HEATER SHROUD
5INDOOR FAN BLADE
6INDOOR FAN SHROUD, BOTTOM
7INDOOR FAN SHROUD, MIDDLE
8INDOOR FAN SHROUD, UPPER
10FAN MOTOR
11FAN SHROUD
12OUTDOOR FAN BLADE
16FAN SHROUD BRACKETS
17BULK HEAD TOP COVER
18BULKHEAD TOP COVER BRACKET
19AIR OUTLET FRAME
20AIR VENT MESH
22MAIN PCB
23MAIN PCB SUPPORT
24CAPACITOR BRACKET
25ELECTRICAL CONTROL BOX
26ELECTRICAL BOX COVER
27TERMINAL COVER
28UI BOARD
29UI CONTROL PANEL
30UI OVERLAY
31AIR FILTER
32POWER CORD
33CAPACITOR
