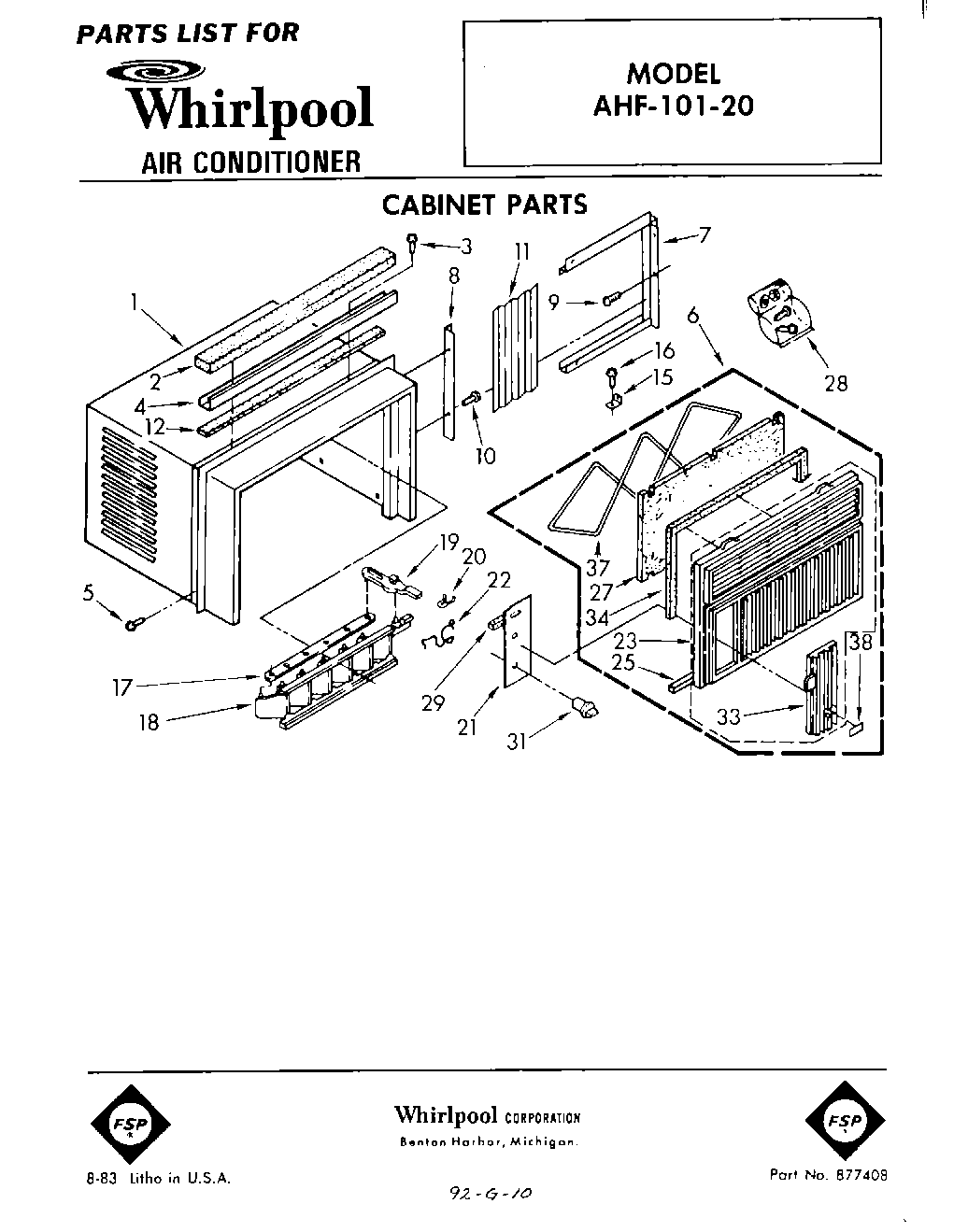

AHF10120 01 – SECTION

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP308685 Whirlpool Microwave Screw
4	Channel, Top Mounting
5	WP489128 Whirlpool Refrigerator Screw
6	Cabinet Assembly, Front
7	Housing, Curtain (R.S.)
7	Housing, Curtain L.S.
8	Retainer, Curtain
9	Thumbscrew (2)
10	Screw, 8 x 7/16
11	Curtain (2)
12	Strip, Seal
15	Bracket
16	Screw, Wood 8-15 x .750
17	Link, Louver
18	Louver, Vertical
19	Handle, Louver
20	Detent Spring (2)
21	Plate, Escutcheon
22	Clip, Mtg. (2) (Base to Front)
23	Front, Frame (Includes Illus. 33)
25	Seal, Front
27	Filter
28	Bag, Accessory
29	Spacer, Escutcheon Plate (3)
31	Knob, Control
33	Door, Control
34	Seal, Top & Sides
37	Retainer, Filter
38	Nameplate
