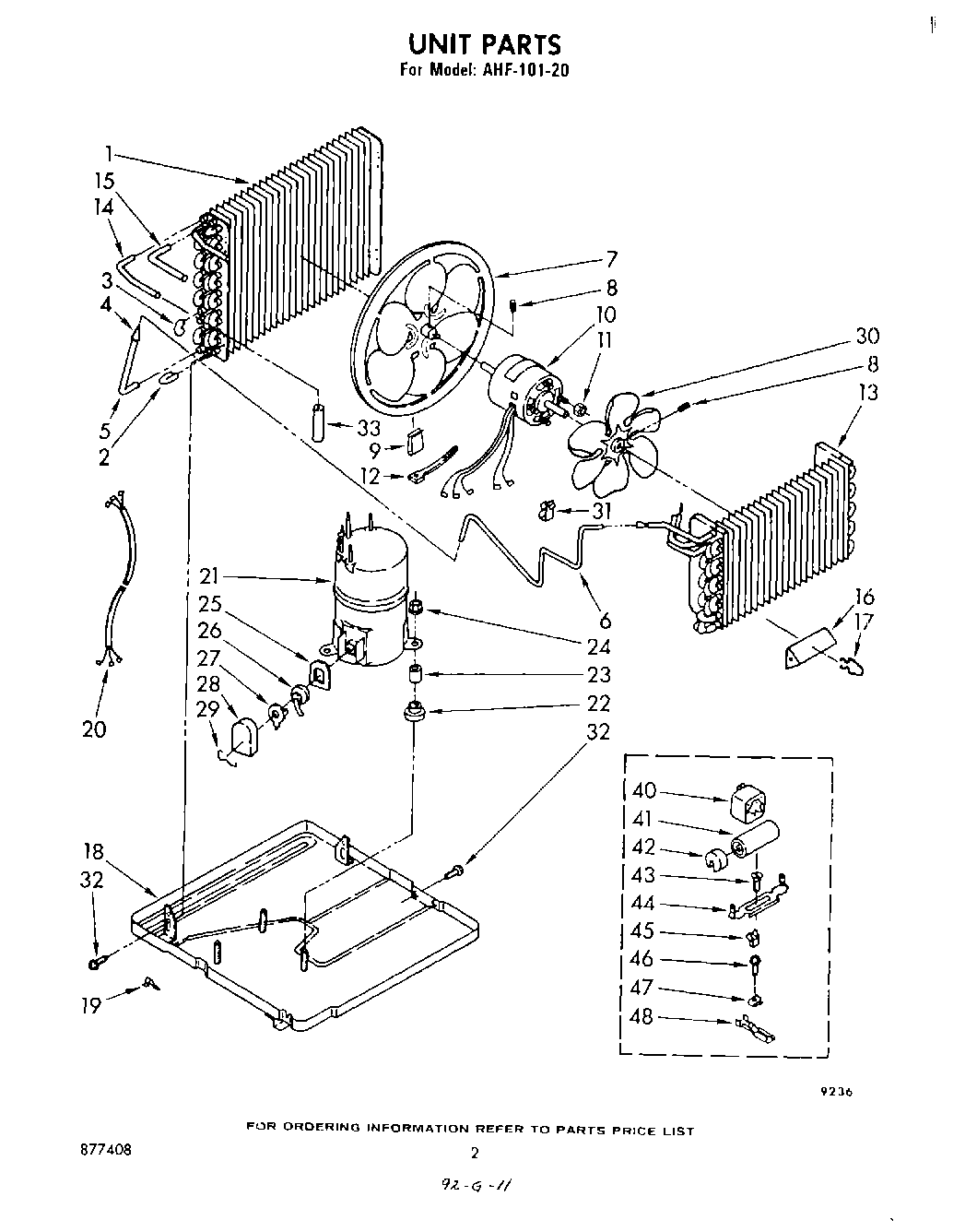

AHF10120 02 – SECTION

Products

Position	Product
1	Condenser
2	Bend, Return Evaporator (4)
3	Bend, Return Evaporator (11)
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Tube, Restrictor
7	Blade, Condenser Fan
8	Setscrew, 5/16 x 1/4
9	Clip, Balancing
10	WPL 995303
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	WPL 948367
14	Tube, 90~ Connect
15	Tube, Outlet Or Inlet (2)
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	Clamp, Tube (2)
20	Harness, Wiring
21	Compressor
22	Grommet, Compressor (3)
23	Sleeve, Compressor (3)
24	Locknut (3)
25	Gasket, Terminal Cover
26	Overload
27	Spring, Overload
28	Cover, Terminal
29	Strap, Terminal Cover
30	Blade, Fan (Evaporator)
31	Clamp, Wiring
32	WP308685 Whirlpool Microwave Screw
32	WP489069 Whirlpool Compactor Screw
33	Split Dampener
40	Relay (Component Of Start Kit)
41	capacitor (component of start kit)
42	cap, capacitor (component of start kit)
43	Screw, 10 x 5/8 (Component Of Start Kit)
44	Bracket, Capacitor (Component Of Start Kit)
45	Multiplier, Terminal (Component Of Start Kit)
46	WP965173 Whirlpool Dishwasher Screw
47	488660 Whirlpool Refrigerator Nut
48	WPL 484220
48	978026 Whirlpool Refrigerator Primary Valve
48	978027 Whirlpool Refrigerator Primary Valve
48	WP978025 Whirlpool Refrigerator Valve
48	VALVE, ACCESS (1/2“)
48	VALVE, ACCESS (5/8“)
48	978030 Whirlpool Refrigerator Valve
48	Oil, Turbine 1 Fl. Oz.
48	Kit, Evaporator Repair (Aluminum Epoxy)
48	484184 Whirlpool Air Conditioner Winter Cover
48	WPL 485608
48	Clip, Terminal (Component Of Start Kit)
48	No Drip Tape (For Sweating Tubes)
