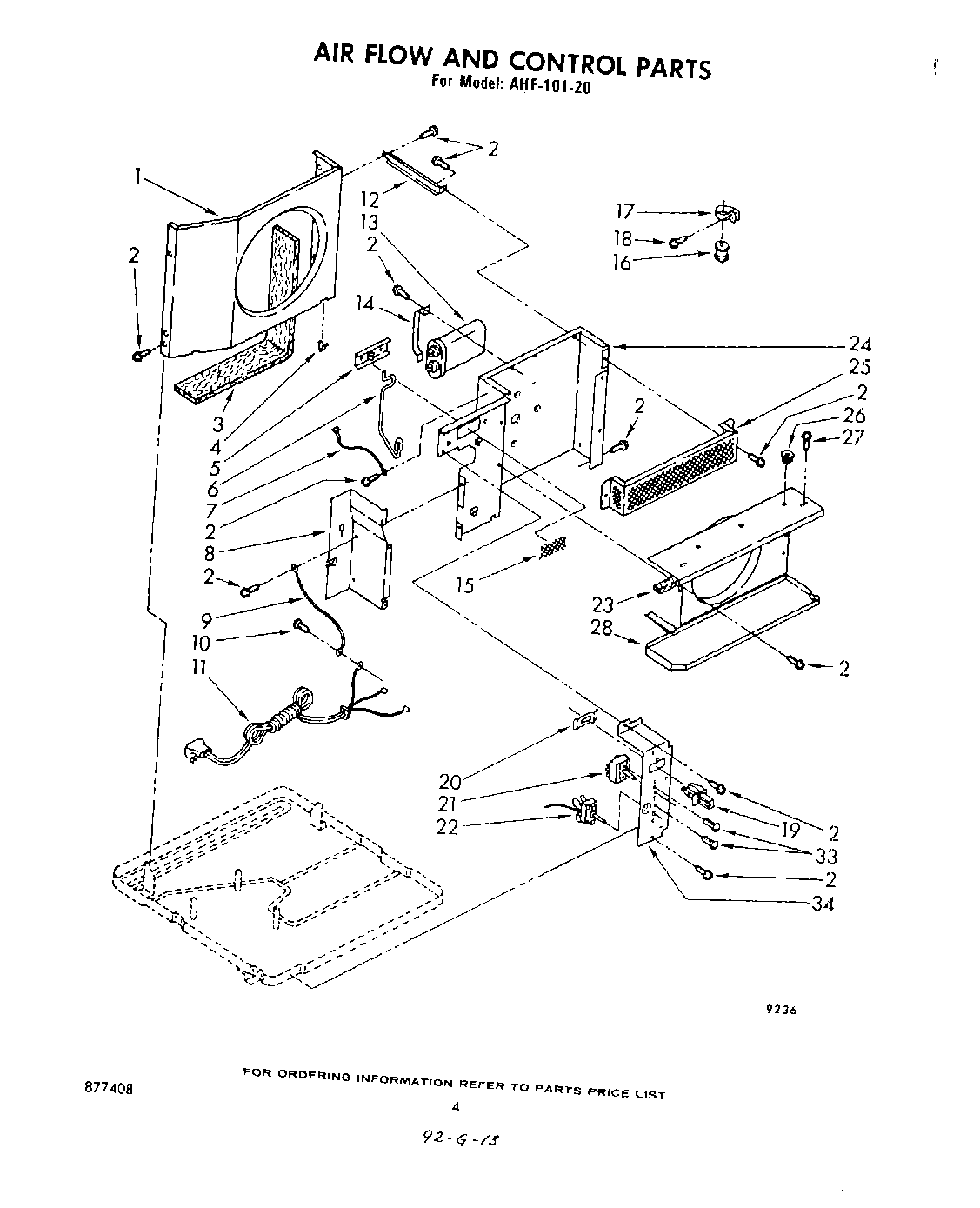

AHF10120 03 – SECTION

Products

Position	Product
1	Shroud, Condenser
2	WP489069 Whirlpool Compactor Screw
2	WP308685 Whirlpool Microwave Screw
3	Seal, Condenser Top
3	WP854334 Whirlpool Air Conditioner Sealing Strip
4	Clip, Retainer
5	Door, Exhaust
6	Arm, Door
7	Wire, Ground
8	Extension, Dividing Wall (Requires Insulation Part No. 469938)
9	Wire, Ground
10	WPW10141604 Whirlpool Screw
11	Cable, Appliance
12	support, unit (2)
13	Capacitor, Running
14	Bracket (Upper)
15	Screen, Exhaust Door
16	WPL 949177
17	Clamp, Mounting
18	WP965173 Whirlpool Dishwasher Screw
19	Actuator, Exhaust Door
20	Spring, Retainer
21	Switch, Rotary
22	Control, Tempetature
23	Insulation, Evaporator Cover
24	Dividing Wall Assembly (Requires Insulation Part No. 469938)
25	Guard, Evaporator Impeller
26	Fastener, snap (2)
27	WP488729 Whirlpool Refrigerator Door Screw
28	Shro\ud,\ Evaporator (Includes Item 11)
33	Screw, 6-32 x .175
34	Tech Sheet (Ser
34	List, Repair Parts
34	Panel, Control
34	WPL 949846
34	WPL 949787
34	WPL 649939
34	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
34	Wire, 25“ Roll (Black 12 GA.)
34	Wire, 25“ Roll (White 12 GA.)
34	WPL 799351
34	Insulation, Fiberglass (1/4“ x 24“ x 48“)
34	Wire, Red, (25 Ft.)
34	Lacquer, Starlight Gray (1/2 Pt. Uncut)
34	WPL 947596
34	212643 Whirlpool Refrigerator Permagum Sealer
