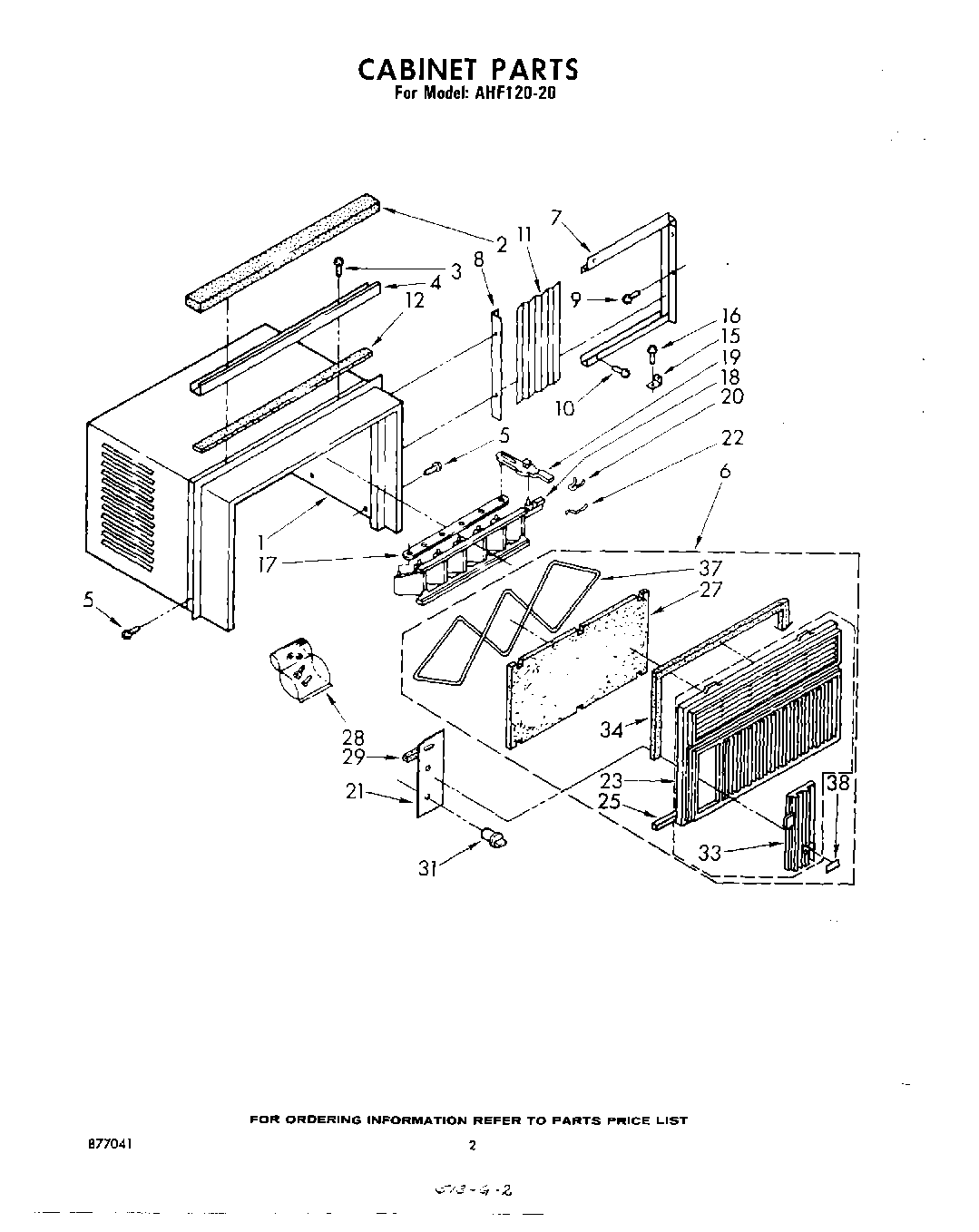

| 1 | Cabinet |
| 2 | Gasket, Meeting Rail |
| 3 | WP308685 Whirlpool Microwave Screw |
| 4 | Channel, Top Mounting |
| 5 | WP489128 Whirlpool Refrigerator Screw |
| 6 | (See Optional Parts) |
| 6 | Front, Frame (Includes Illus. 33) |
| 7 | Housing, Curtain L.S. |
| 7 | Housing, Curtain (R.S.) |
| 8 | Retainer, Curtain |
| 9 | Thumbscrew (2) |
| 10 | Screw, 8 x 7/16 |
| 11 | Curtain (2) |
| 12 | Strip, Seal |
| 15 | Bracket |
| 16 | Screw, Wood 8-15 x .750 |
| 17 | Link, Louver |
| 18 | Louver, Vertical |
| 19 | Handle, Louver |
| 20 | Detent Spring (2) |
| 21 | Plate, Escutcheon |
| 22 | Clip (2) |
| 23 | front frame (includes item 33) |
| 23 | (See Optional Parts) |
| 25 | Seal, Front |
| 27 | Filter |
| 28 | Bag, Accessory |
| 29 | Spacer, Escutcheon Plate (3) |
| 31 | Knob, Control |
| 33 | Door, Control |
| 34 | Seal, Top & Sides |
| 37 | Retainer, Filter |
| 38 | Nameplate |
