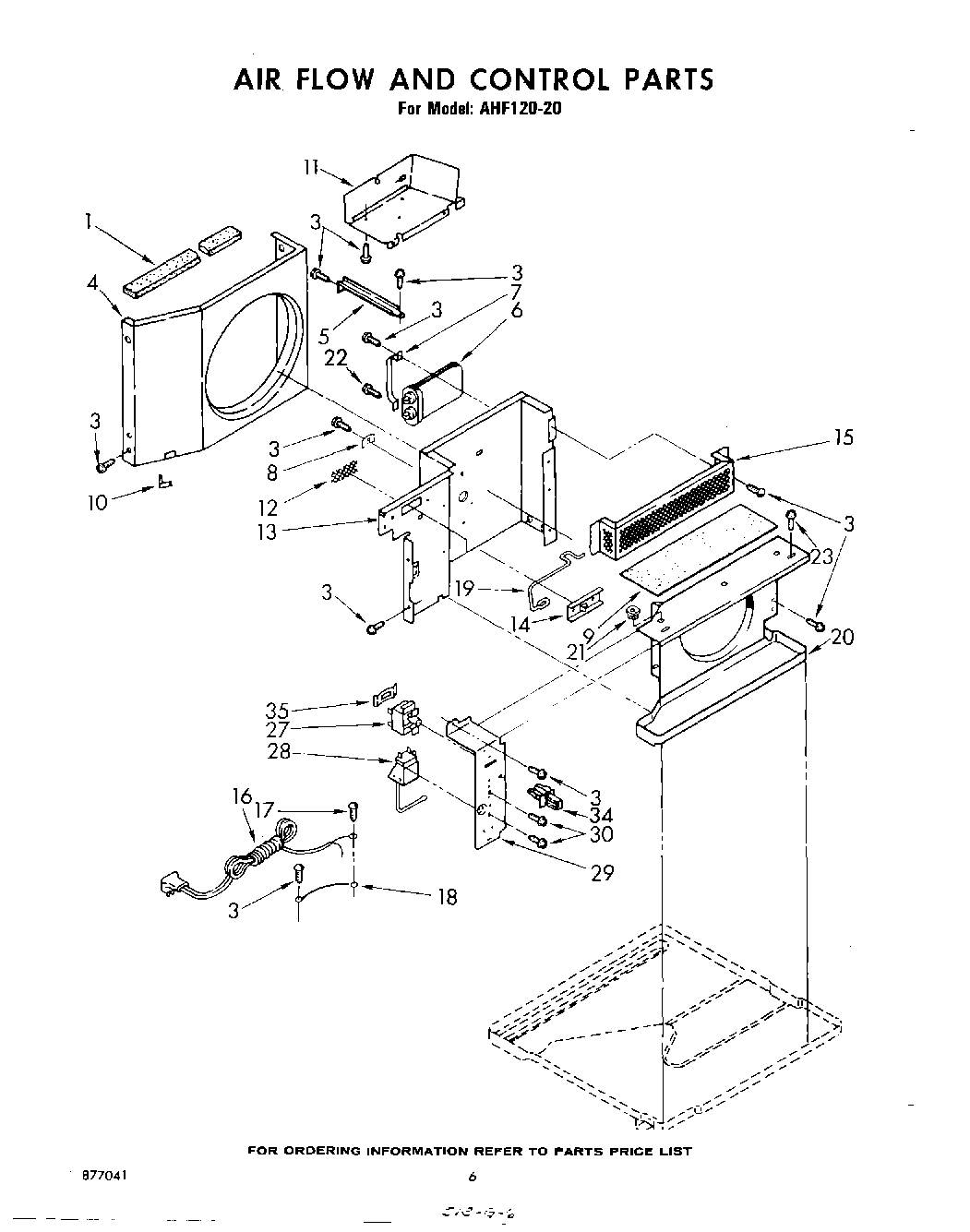

AHF12020 04 – SECTION

Products

Position	Product
1	WP854334 Whirlpool Air Conditioner Sealing Strip
3	WP489069 Whirlpool Compactor Screw
3	WP308685 Whirlpool Microwave Screw
4	Shroud, Condenser
5	support, unit (2)
6	capacitor, running
7	Bracket (Upper)
8	Clamp, Capacitor Ground
9	Insulation, Evaporator Cover
10	Clip, Retainer
11	Extension, Dividing Wall (Requires Insulation Part No. 469938)
12	Screen, Exhaust Door
13	Dividing Wall Assembly (Requires Insulation Part No. 469938)
14	Door, Exhaust
15	Guard, Evaporator Impeller
16	Cable, Appliance
17	WPW10141604 Whirlpool Screw
18	Wire, Ground
19	Arm, Door
20	Shroud, Evaporator
21	Fastener, snap (2)
22	WP488163 Whirlpool Refrigerator Screw
23	WP488729 Whirlpool Refrigerator Door Screw
27	switch, rotary
28	Control, Temperature
29	Panel, Control
30	Screw, 6-32 x .175
34	Actuator, Exhaust Door
35	978026 Whirlpool Refrigerator Primary Valve
35	978027 Whirlpool Refrigerator Primary Valve
35	Oil, Turbine 1 Fl. Oz.
35	Spring, Retainer
35	Guide,
35	212643 Whirlpool Refrigerator Permagum Sealer
35	insulation, fiberglass (cabinet only)
35	978030 Whirlpool Refrigerator Valve
35	WP978025 Whirlpool Refrigerator Valve
35	Insulation, Fiberglass (1/4“ x 24“ x 48“)
35	Wire, Red, (25 Ft.)
35	Lacquer, Starlight Gray (1/2 Pt. Uncut)
35	WPL 799351
35	484184 Whirlpool Air Conditioner Winter Cover
35	WPL 484220
35	Wire, 25“ Roll (White 12 GA.)
35	WPL 485608
35	Wire, 25“ Roll (Black 12 GA.)
35	VALVE, ACCESS (5/8“)
35	WPL 947596
35	No Drip Tape (For Sweating Tubes)
35	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
35	VALVE, ACCESS (1/2“)
35	list, parts
