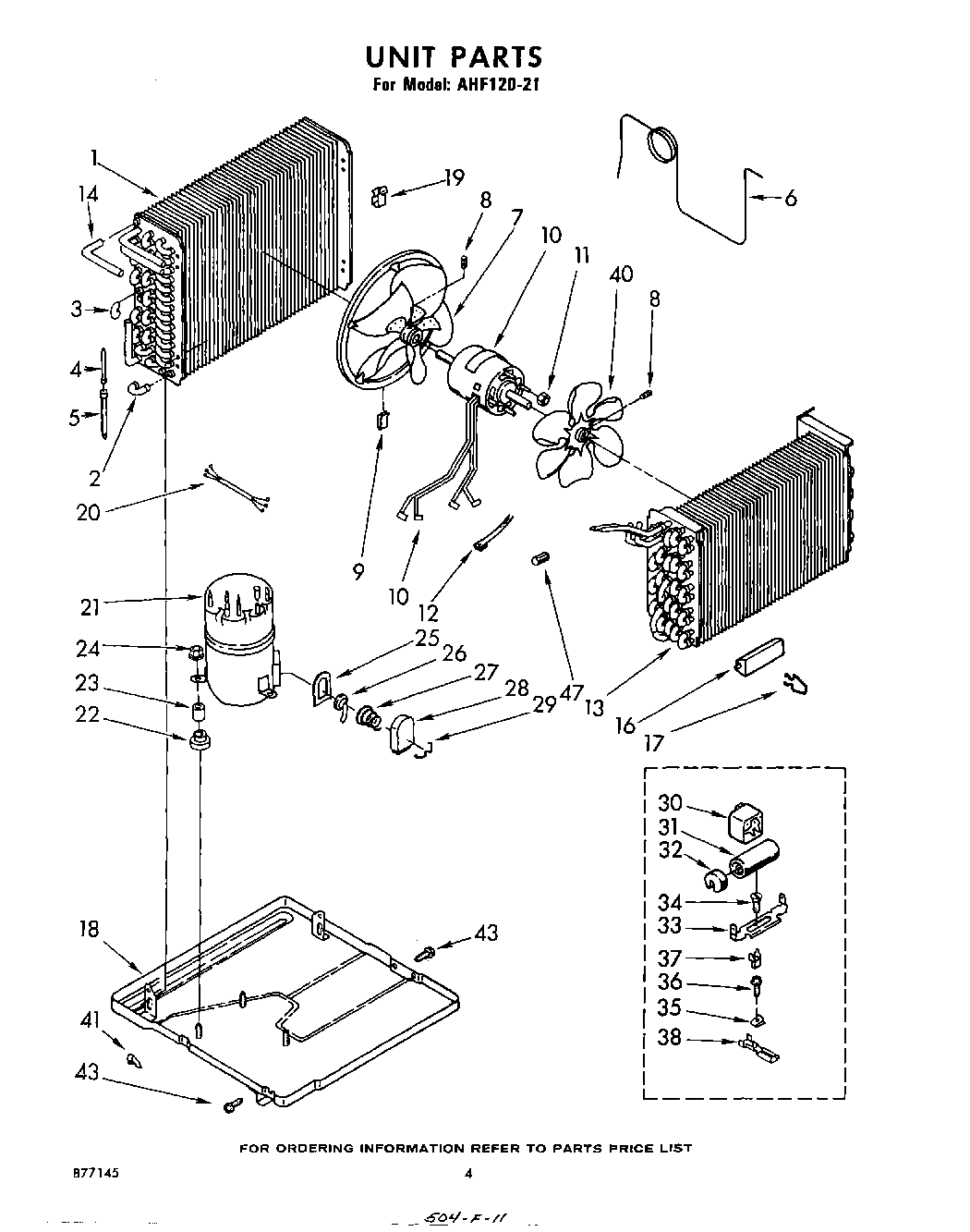

AHF12021 03 – SECTION

Products

Position	Product
1	Condenser
2	Bend, Return Evaporator (4)
3	Bend, Return Evaporator (11)
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Tube, Restrictor (2)
7	Blade, Condenser Fan
8	Setscrew, 5/16 x 1/4
9	Clip, Balancing
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Tube, 90~ Connect
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	Clamp, Wiring
20	Harness, Wiring
21	Compressor
22	Grommet, Compressor (3)
23	Sleeve, Compressor (3)
24	Locknut (3)
25	Gasket, Terminal Cover
26	Overload
27	Spring, Overload
28	Cover, Terminal
29	Strap, Terminal Cover
30	Relay (Component Of Start Kit)
31	capacitor (component of start kit)
32	cap, capacitor (component of start kit)
33	Bracket, Capacitor (Component Of Start Kit)
34	Screw, 10 x 5/8 (Component Of Start Kit)
35	488660 Whirlpool Refrigerator Nut
36	WP965173 Whirlpool Dishwasher Screw
37	Multiplier, Terminal (Component Of Start Kit)
38	Clip, Terminal (Component Of Start Kit)
40	Blade, Fan (Evaporator)
41	Clamp, Tube (2)
43	WP308685 Whirlpool Microwave Screw
43	WP489069 Whirlpool Compactor Screw
47	Split Dampener
