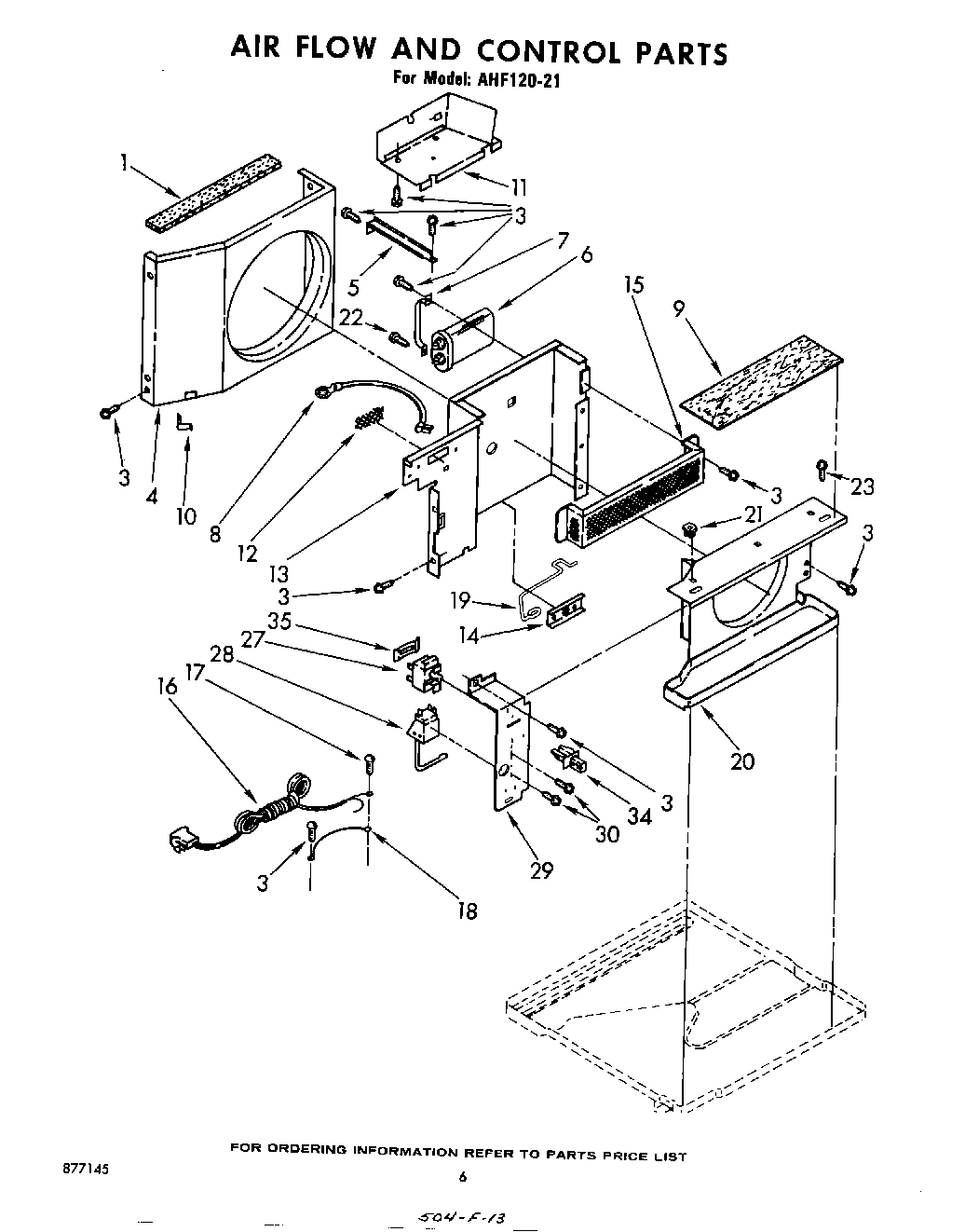

AHF12021 04 – SECTION

Products

Position	Product
1	WP854334 Whirlpool Air Conditioner Sealing Strip
3	WP489069 Whirlpool Compactor Screw
3	WP308685 Whirlpool Microwave Screw
4	Shroud, Condenser
5	support, unit (2)
6	Capacitor, Running
7	Bracket (Upper)
8	Wire, Ground
9	Insulation, Evaporator Cover
10	Clip, Retainer
11	Extension, Dividing Wall (Requires Insulation Part No. 469938)
12	Screen, Exhaust Door
13	Dividing Wall Assembly (Requires Insulation Part No. 469938)
14	Door, Exhaust
15	Guard, Evaporator Impeller
16	Cable, Appliance
17	WPW10141604 Whirlpool Screw
18	Wire, Ground
19	Arm, Door
20	Shroud, Evaporator
21	Fastener, snap (2)
22	WP488163 Whirlpool Refrigerator Screw
23	WP488729 Whirlpool Refrigerator Door Screw
27	Switch, Rotary
28	Control, Temperature
29	Panel, Control
30	Screw, 6-32 x .175
34	Actuator, Exhaust Door
35	Spring, Retainer
35	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
35	VALVE, ACCESS (1/2“)
35	WP978025 Whirlpool Refrigerator Valve
35	978030 Whirlpool Refrigerator Valve
35	978027 Whirlpool Refrigerator Primary Valve
35	List, Parts
35	212643 Whirlpool Refrigerator Permagum Sealer
35	978026 Whirlpool Refrigerator Primary Valve
35	VALVE, ACCESS (5/8“)
35	Wire, 25“ Roll (Black 12 GA.)
35	Wire, 25“ Roll (White 12 GA.)
35	WPL 484220
35	484184 Whirlpool Air Conditioner Winter Cover
35	WPL 485608
35	Lacquer, Starlight Gray (1/2 Pt. Uncut)
35	WPL 649939
35	Wire, Red, (25 Ft.)
35	No Drip Tape (For Sweating Tubes)
35	WPL 947596
35	Insulation, Fiberglass (1/4“ x 24“ x 48“)
35	Oil, Turbine 1 Fl. Oz.
35	WPL 799351
35	Guide,
