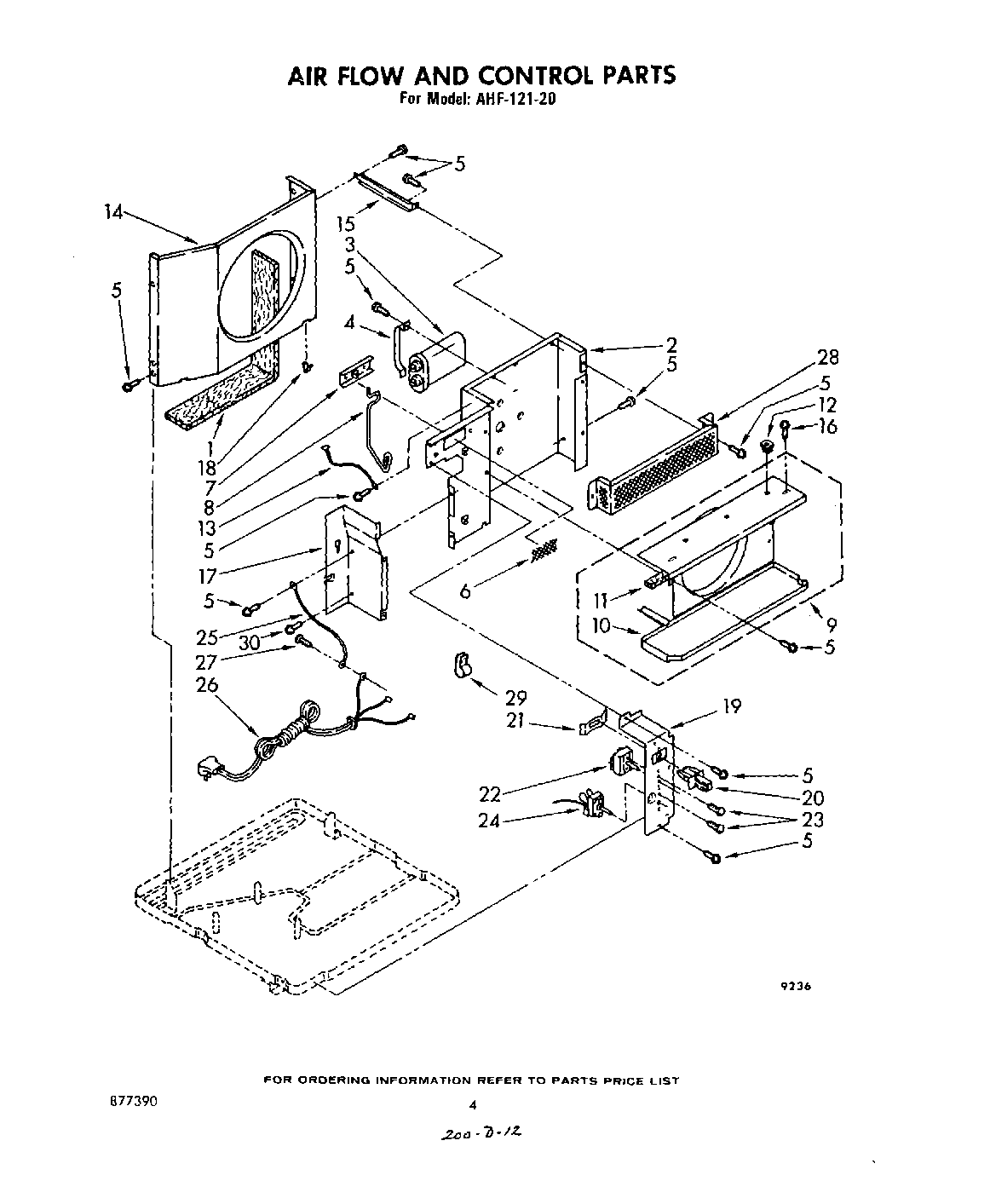

| 1 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 2 | Dividing Wall Assembly (Requires Insulation Part No. 469938) |
| 3 | Capacitor, Running |
| 4 | Bracket (Upper) |
| 5 | WP489069 Whirlpool Compactor Screw |
| 6 | Screen, Exhaust Door |
| 7 | Door, Exhaust |
| 8 | Arm, Door |
| 9 | Shro\ud,\ Evaporator (Includes Item 11) |
| 10 | Shroud, Evaporator |
| 11 | Insulation, Evaporator Cover |
| 12 | Fastener, snap (2) |
| 13 | Wire, Ground |
| 14 | Shroud, Condenser |
| 15 | support, unit (2) |
| 16 | WP488729 Whirlpool Refrigerator Door Screw |
| 17 | Extension, Dividing Wall (Requires Insulation Part No. 469938) |
| 18 | Clip, Retainer |
| 19 | Panel, Control |
| 20 | Actuator, Exhaust Door |
| 21 | Spring, Retainer |
| 22 | Switch, Rotary |
| 23 | Screw, 6-32 x .175 |
| 24 | Control, Tempetature |
| 25 | Wire, Ground |
| 26 | Cable, Appliance |
| 27 | WPW10141604 Whirlpool Screw |
| 28 | Guard, Evaporator Impeller |
| 29 | Clip, Wiring |
| 30 | WPL 649939 |
| 30 | WPL 949762 |
| 30 | Sheet, Service Tech (Service Information) |
| 30 | List, Repair Parts |
| 30 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 30 | Wire, 25`` Roll (Black 12 GA.) |
| 30 | WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive |
| 30 | Wire, 25`` Roll (White 12 GA.) |
| 30 | Screw, 8 x 3/8 |
| 30 | WPL 799351 |
| 30 | Insulation, Fiberglass (1/4`` x 24`` x 48``) |
| 30 | Wire, Red, (25 Ft.) |
| 30 | Lacquer, Starlight Gray (1/2 Pt. Uncut) |
| 30 | WPL 947596 |
| 30 | WPL 949763 |
