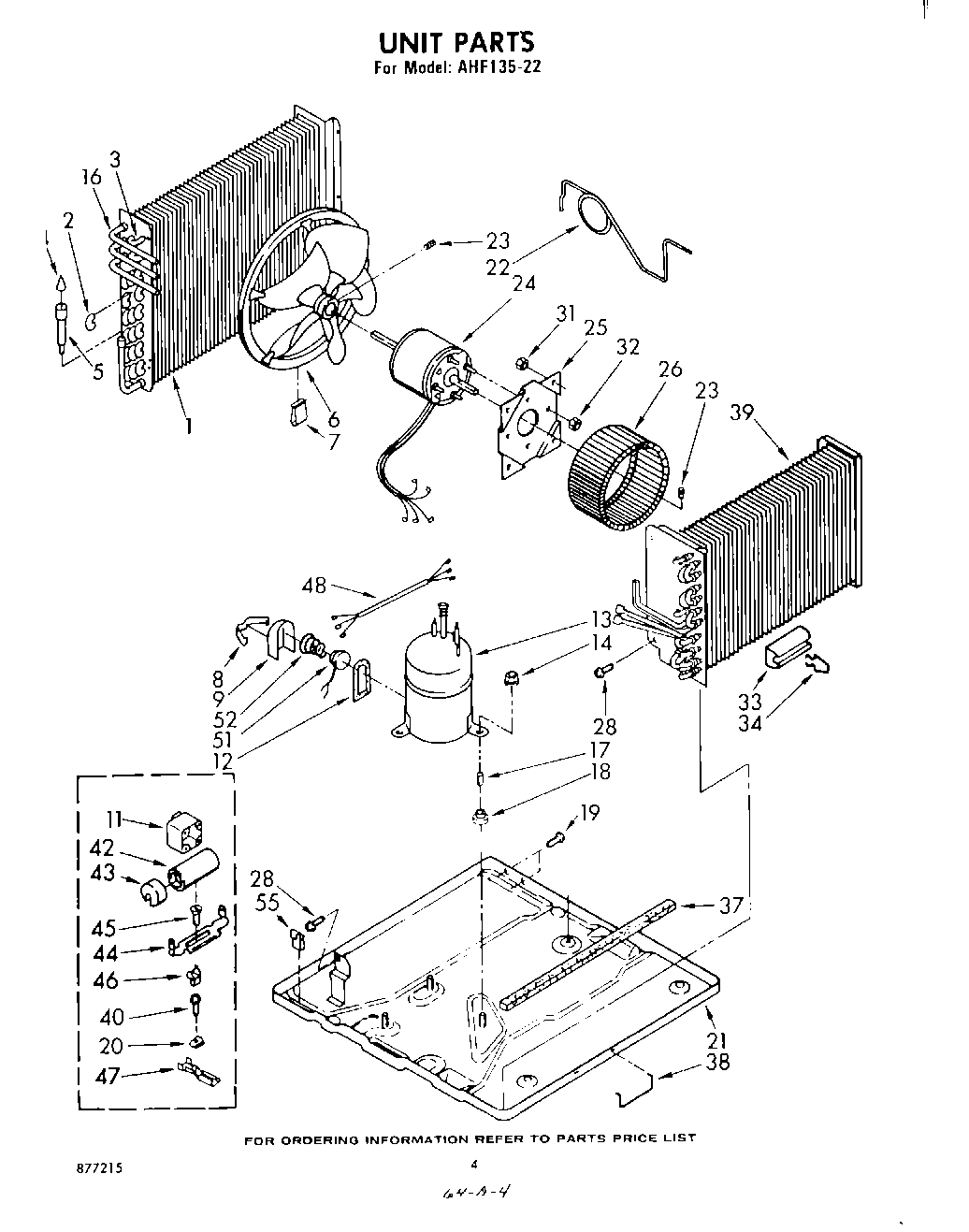

AHF13522 03 – UNIT

Products

Position	Product
1	Condenser
2	Bend, Return Evaporator (11)
3	WP855199 Whirlpool Bend Return
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Blade, Fan
7	Clip, Balancing
8	Strap, Terminal Cover
9	Cover, Terminal
11	Relay (Component Of Start Kit)
12	Gasket, Terminal Cover
13	Compressor
14	Locknut (3)
16	Tube, 90~ Connect
17	Sleeve (4)
18	Grommet (4)
19	WP488729 Whirlpool Refrigerator Door Screw
20	488660 Whirlpool Refrigerator Nut
21	Base
22	Tube, Restrictor (2)
23	Setscrew, 5/16 x 1/4
24	Motor, Fan
25	WPL 998024
26	Wheel, Blower
28	WP308685 Whirlpool Microwave Screw
28	WP489069 Whirlpool Compactor Screw
31	Nut, Hex (4)
32	WP488130 Whirlpool Air Conditioner Nut
33	Anticipator
34	Clip
37	Seal
38	WPL 647971
39	Evaporator
40	WP965173 Whirlpool Dishwasher Screw
42	capacitor (component of start kit)
43	cap, capacitor (component of start kit)
44	Bracket, Capacitor (Component Of Start Kit)
45	Screw, 10 x 5/8 (Component Of Start Kit)
46	Multiplier, Terminal (Component Of Start Kit)
47	Clip, Terminal (Component Of Start Kit)
48	Harness, Wiring
51	Overload
52	Spring, Overload
55	WPL 485608
55	Clamp (2)
55	978027 Whirlpool Refrigerator Primary Valve
55	978026 Whirlpool Refrigerator Primary Valve
55	978030 Whirlpool Refrigerator Valve
55	WP978025 Whirlpool Refrigerator Valve
55	VALVE, ACCESS (1/2“)
55	VALVE, ACCESS (5/8“)
55	WPL 484220
