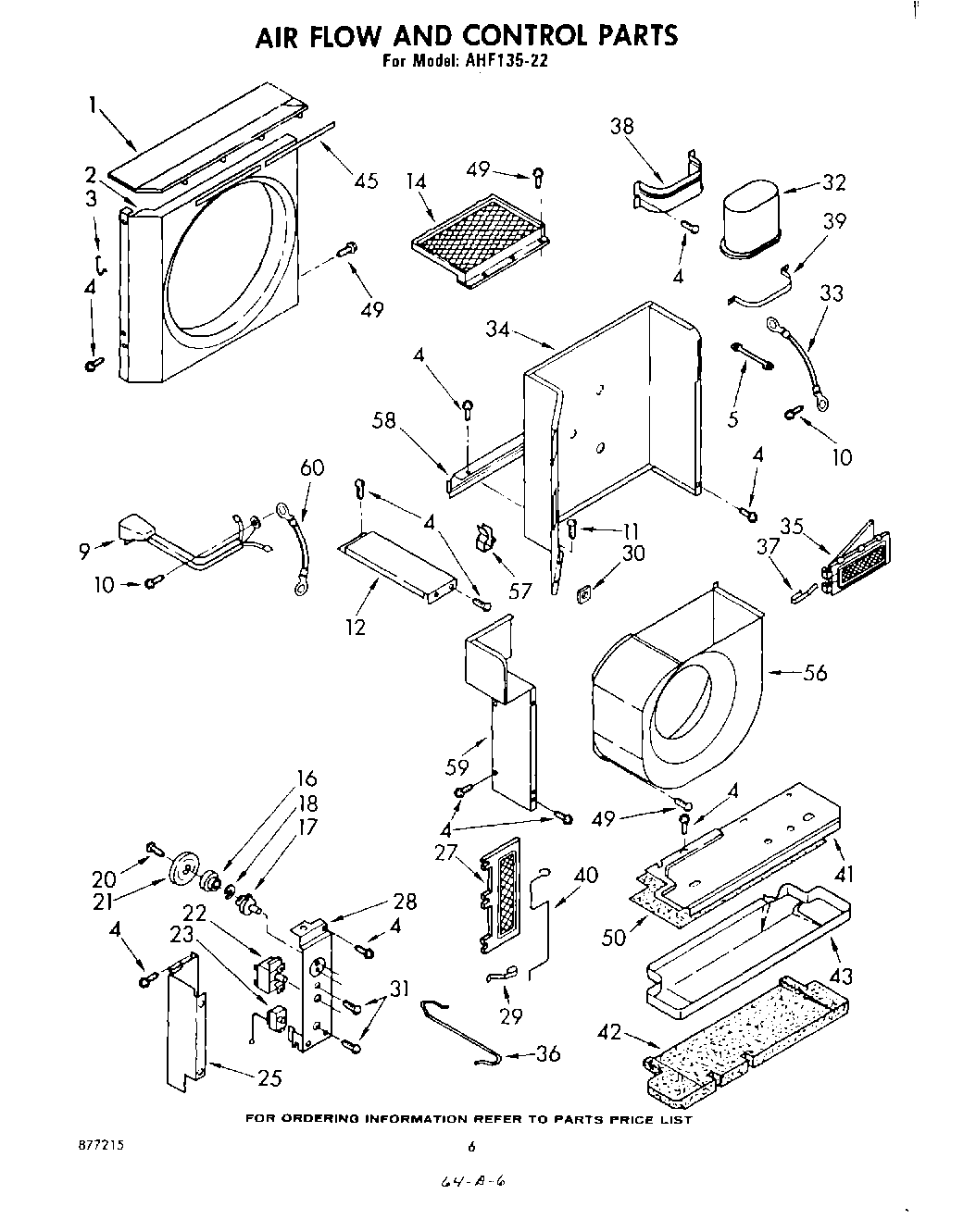

AHF13522 04 – AIR FLOW AND CONTROL

Products

Position	Product
1	Cover, Condenser Shroud
2	Shroud (Requires Insulation No. 469938)
3	Clip, Shroud (2)
4	WP489069 Whirlpool Compactor Screw
4	WP308685 Whirlpool Microwave Screw
5	Clamp, Cable
9	Cable, Appliance
10	WPW10141604 Whirlpool Screw
11	Screw, 8 x 3/8
12	Support, Unit
14	Guard, Evaporator Impeller
16	Bushing, Shaft
17	Shaft, Control
18	Washer
20	WP488787 Whirlpool Refrigerator Screw
21	Cam, Exhaust
22	Switch, Rotary
23	Control, Temperature
25	Cover, Control Access
27	Door, Fresh Air
28	Panel, Control
29	Spring, Door
30	Seal, Tube
31	Screw, 6-32 x .175
32	Capacitor
33	Wire, Ground (2)
34	Wall, Dividing (Requires Insulation No. 469938)
35	Door, Exhaust
36	Wire, Control
36	Wire, C
37	Spring, Door
38	Bracket (Upper)
39	Bracket (Lower)
40	Actuator, Door
41	Cover, Evaporator
42	Insulation, Pan
43	Pan, Condensate
45	seal, strip (shroud) (side)
45	WP854334 Whirlpool Air Conditioner Sealing Strip
45	Seal, Condenser Fin
49	WP488729 Whirlpool Refrigerator Door Screw
50	Insulation, Evaporator Cover
56	Housing, Blower Wheel
57	Clamp, Cable
58	Adapter, Evaporator Header Plate
59	Extension, Dividing Wall
60	WPL 649939
60	Wire, 25“ Roll (White 12 GA.)
60	WPL 799351
60	WPL 998179
60	Wire, 25“ Roll (Black 12 GA.)
60	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
60	212643 Whirlpool Refrigerator Permagum Sealer
60	WPL 877215
60	Oil, Turbine 1 Fl. Oz.
60	Insulation, Fiberglass (1/4“ x 24“ x 48“)
60	Wire, Red, (25 Ft.)
60	WPL 947598
60	WPL 855438
60	Insulation, Base
60	Cover, Winter (27 x 19 x 6 to 27“)
60	No Drip Tape (For Sweating Tubes)
60	Lacquer, Starlight Gray (1/2 Pt. Uncut)
60	Ground Wire
60	Kit, Evaporator Repair (Aluminum Epoxy)
60	WPL 948437
