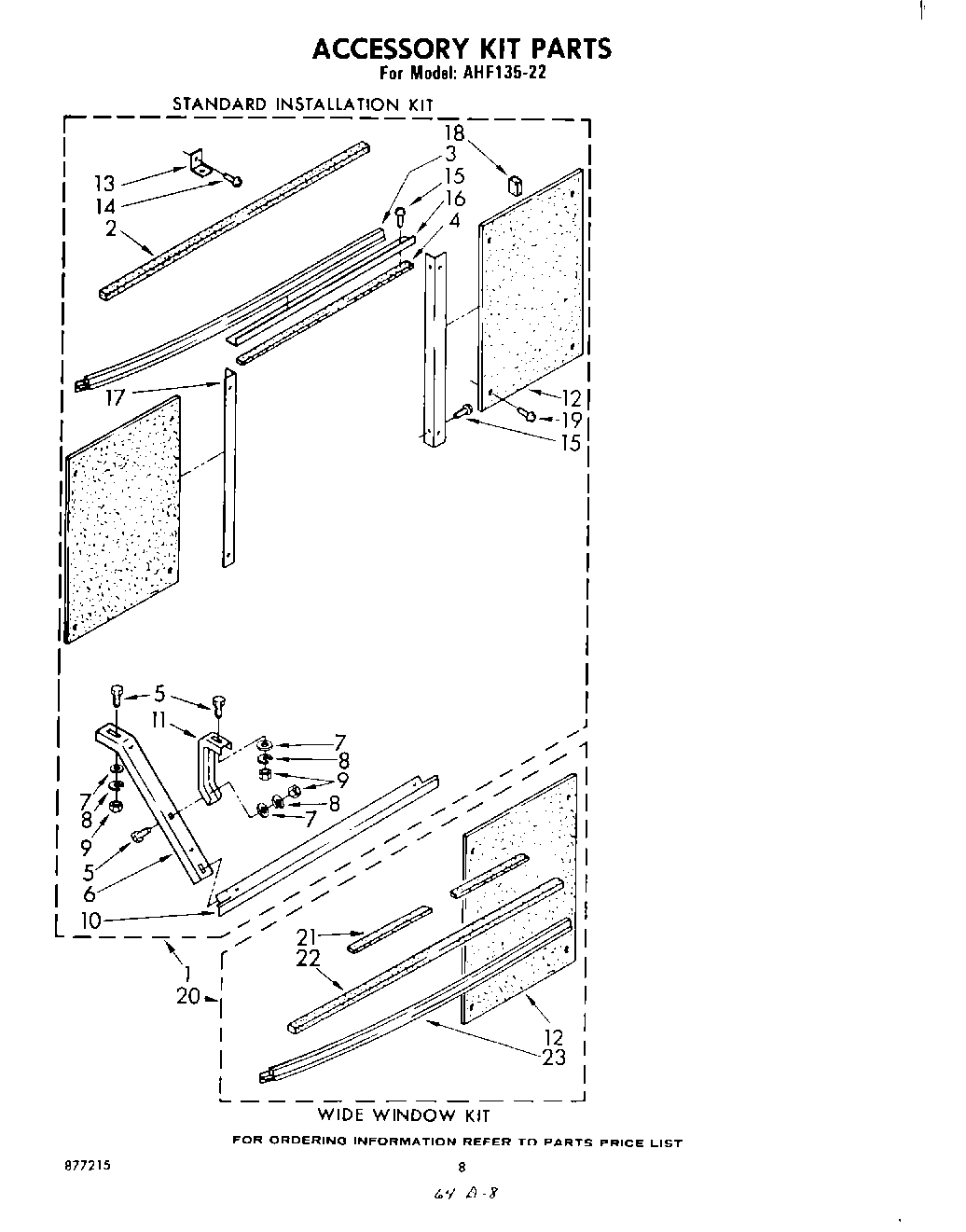

AHF13522 05 – ACCESSORY , LIT/OPTIONAL

Products

PositionProduct
1Kit, Standard Installation
2Gasket, Meeting Rail
3Gasket, Sash
4Strip, Seal
5Bolt, 1/4 x 3/4 (6)
6Support, Cabinet (2)
7WP120393 Whirlpool Washer Assembly
8Lockwasher (6)
9Nut, Hex (6)
10Bracket, Support
11Support, Retainer (2)
12Board, Filler
13Bracket
14Screw (Window Lock Bracket)
15WP308685 Whirlpool Microwave Screw
16Angle, Top Mounting
17Angle (2)
18Spacer, Block (4)
19WP965173 Whirlpool Dishwasher Screw
20Kit, Wide Window
21Strip, Seal
22Seal, Meeting Rail
23Gasket, Sash (54“)
23Instructions, Installation (Wide Window Standard Installation)
