AHF14042 02 – UNIT

AHF14042 02 – UNIT

Written by

in

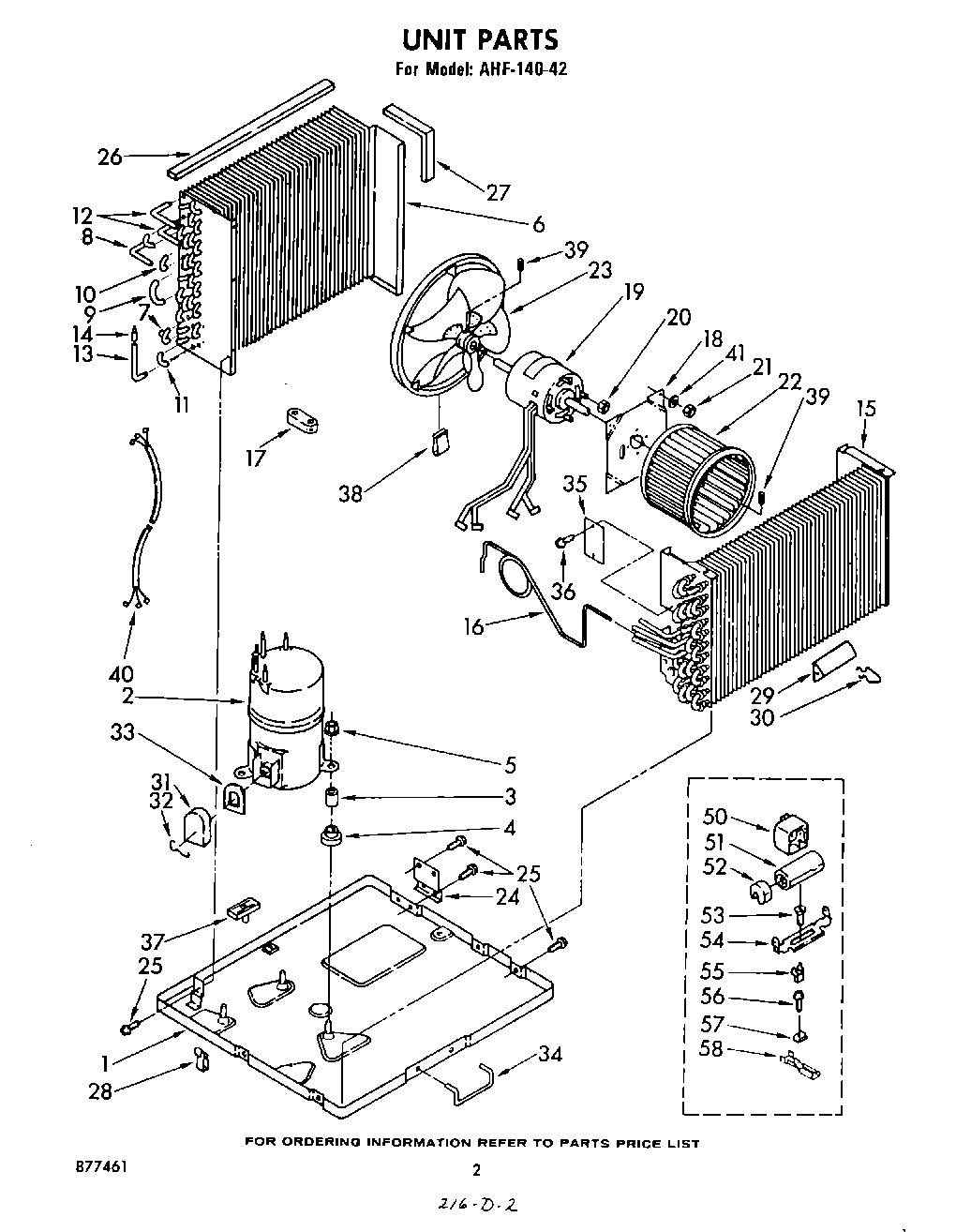

AHF14042 02 – UNIT

Products

PositionProduct
WPL ARI144157A
1Base
2Compressor
3Sleeve, Compressor (3)
4Grommet, Compressor (3)
5Locknut (3)
6Condenser Assembly
7Bend, Return 3-Way
8Bend, Return (3-Way)
9Bend, Return Evaporator (4)
10Bend, Return Evaporator (11)
11Bend, Return Condenser (4) Evaportor (10)
12Tube Inlet
13Tube & Strainer (Includes Item 23)
14Strainer
15Evaporator
16Tube, Restrictor (2) (33“ Length)
17Dampener
18WPL 998024
19Motor, Fan
20WP488130 Whirlpool Air Conditioner Nut
21Nut, Hex (4)
22Wheel, Blower
23Blade, Fan
24WPL 647824
25WP489069 Whirlpool Compactor Screw
26WPL 649609
27WPL 649610
28Clamp, Restrictor Tube
29Anticipator, Temperature
30Clip, Anticipator
31Cover, Terminal
32Strap, Terminal Cover
33Gasket, Terminal Cover
34WPL 647971
35Cover, Tube Opening
36WP965173 Whirlpool Dishwasher Screw
37WPL 647850
38Clip, Balancing
39Setscrew, 5/16 x 1/4
40Harness, Wiring
41Washer, Repair (4)
50Relay (Component Of Start Kit)
51Capacitor (Component Of Start Kit)
52cap, capacitor (component of start kit)
53Bracket, Capacitor (Component Of Start Kit)
54Screw, 10 x 5/8 (Component Of Start Kit)
55488660 Whirlpool Refrigerator Nut
57Multiplier, Terminal (Component Of Start Kit)
58978027 Whirlpool Refrigerator Primary Valve
58978026 Whirlpool Refrigerator Primary Valve
58Clip, Terminal (Component Of Start Kit)
58VALVE, ACCESS (5/8“)
58978030 Whirlpool Refrigerator Valve
58WP978025 Whirlpool Refrigerator Valve
58Kit, Compressor Start
58VALVE, ACCESS (1/2“)
58Oil, Turbine 1 Fl. Oz.
58Kit, Evaporator Repair (Aluminum Epoxy)
58WPL 484220
58No Drip Tape (For Sweating Tubes)
