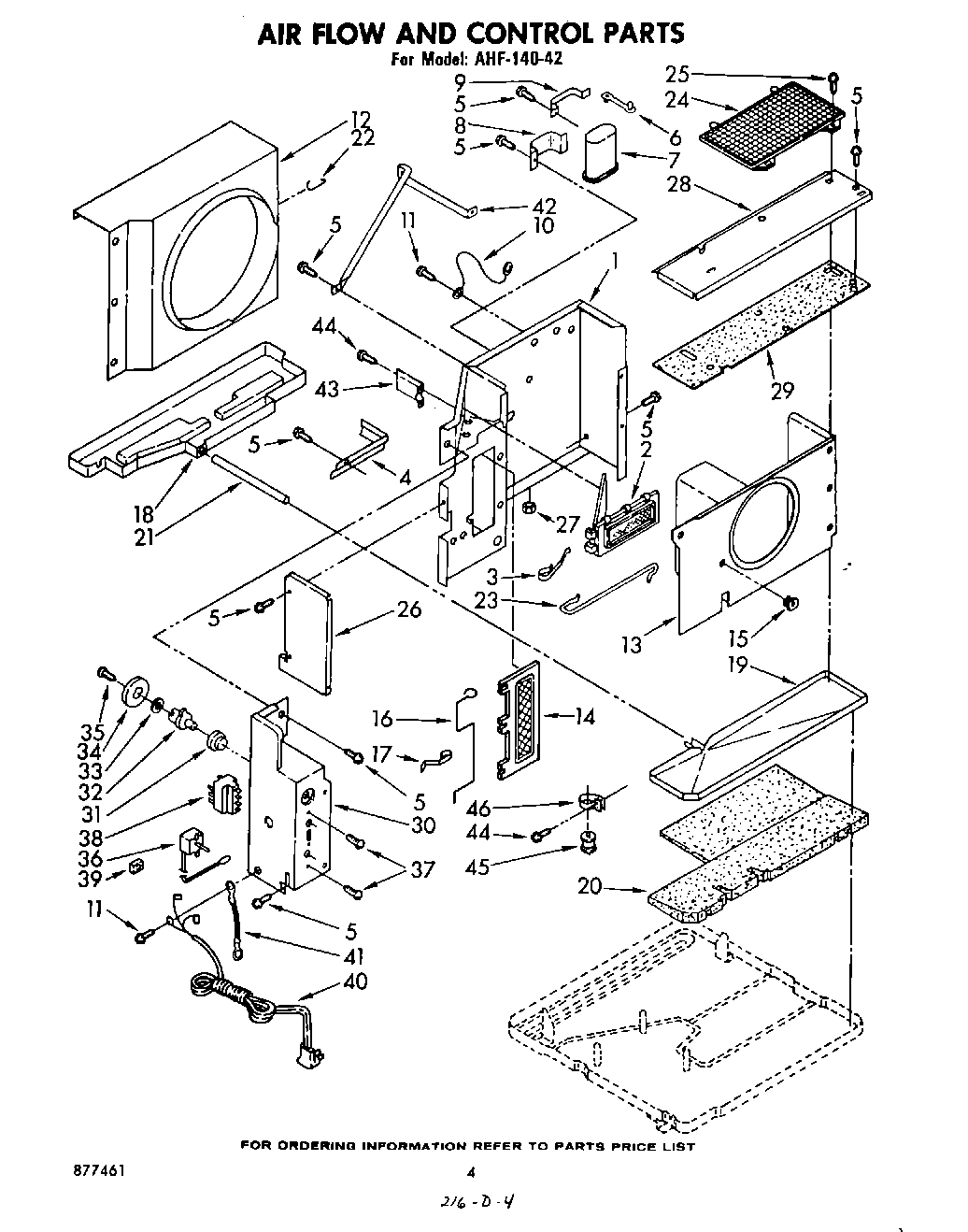

AHF14042 03 – AIRFLOW AND CONTROL , LIT/OPTIONAL

Products

Position	Product
1	Wall, Dividing (Requires Insulation No. 469938)
2	Door, Exhaust
3	Spring, Door
4	Channel, Wiring
5	Screw, Repair
5	WP489069 Whirlpool Compactor Screw
6	Clamp, Cable
7	Capacitor, Running
8	Bracket (Upper)
9	Bracket (Lower)
10	Wire, Ground
11	WPW10141604 Whirlpool Screw
12	Shroud, Condenser
13	Housing, Blower Wheel
14	Door, Fresh Air
15	Fastener, snap (2)
16	Actuator, Fresh Air Door
17	Spring, Fresh Air Door
18	Pan, Condenser Condensate
19	Pan, Evaporator Condensate
20	Insulation, Condensate Pan
21	Tube, Condensate
22	Clip, Shroud (3)
23	Wire, C
23	Wire, Fresh Air Control
24	Guard, Evaporator Impeller
25	WP488729 Whirlpool Refrigerator Door Screw
26	Dividing Wall Assembly, L.S.
27	Clip, Speed
28	Cover, Evaporator
29	Insulation, Evaporator Cover
30	Box, Control
31	Bushing, Shaft
32	Shaft, Fresh Air & Exhaust
33	Washer
34	Cam, Exhaust
35	Screw, 7-18 x 5/8
36	Switch, Rotary
37	Screw, 6-32 x .175
38	Control, Tempetature
39	Grommet
40	Cable
41	Wire, Ground
42	Support, Unit
43	Cover, Wall
44	WP965173 Whirlpool Dishwasher Screw
45	WPL 949177
46	WPL 947670
46	WPL 877461
46	WPL 948441
46	WPL 997588
46	WPL 799351
46	WPL 647847
46	Cover, Winter (27 x 19 x 6 to 27“)
46	Insulation, Fiberglass (1/4“ x 24“ x 48“)
46	WPL 647848
46	Wire, Red, (25 Ft.)
46	Lacquer, Starlight Gray (1/2 Pt. Uncut)
46	Clamp, Mounting
46	WPL 947596
46	Wire, 25“ Roll (Black 12 GA.)
46	Wire, 25“ Roll (White 12 GA.)
46	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
46	WP854334 Whirlpool Air Conditioner Sealing Strip
46	WPL 647846
46	212643 Whirlpool Refrigerator Permagum Sealer
