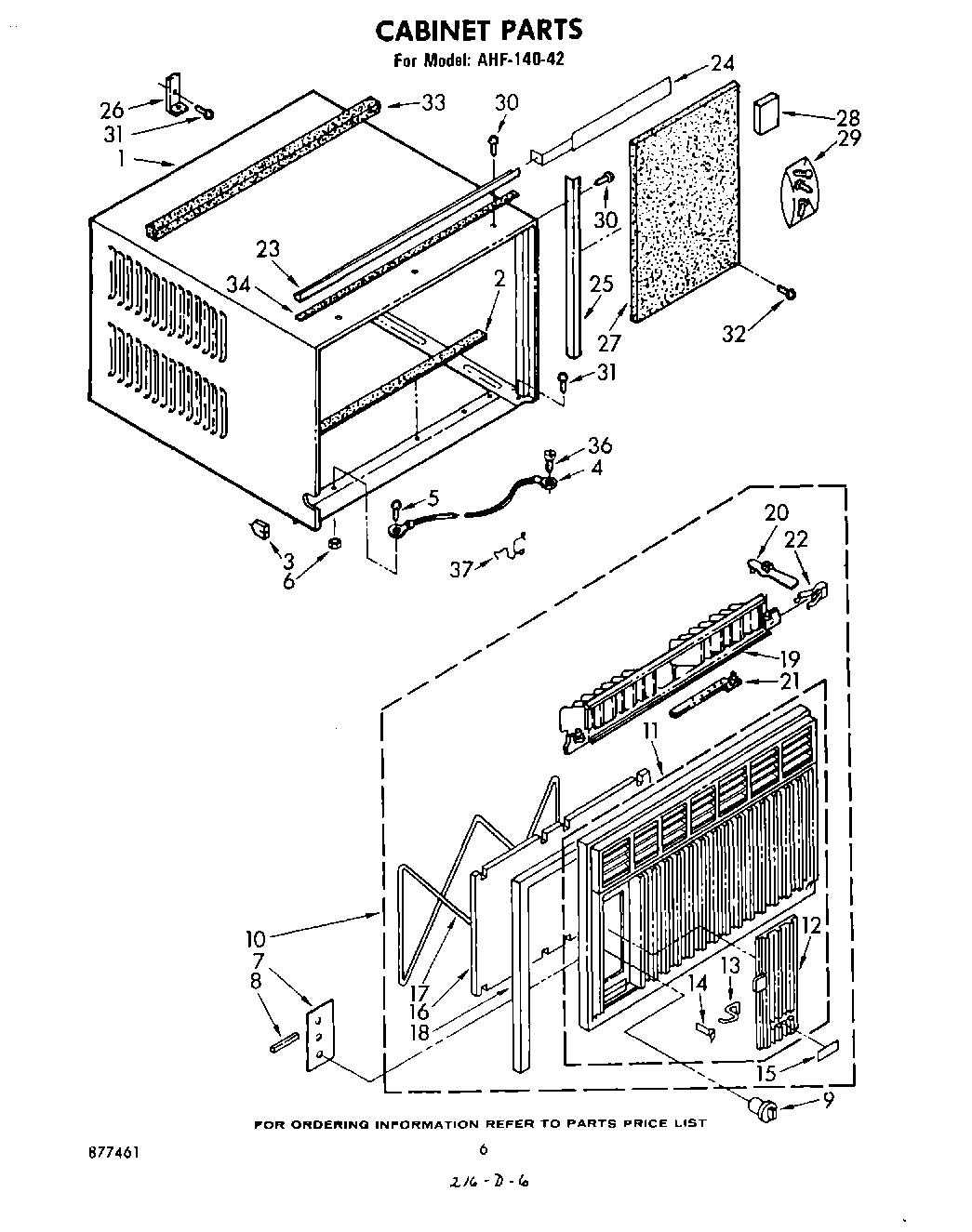

AHF14042 04 – CABINET

Products

Position	Product
1	Cabinet
2	Seal
3	Grommet, Appliance Cable
4	Wire, Ground
5	Screw, 8 x 3/8
6	WP486255 Whirlpool Air Conditioner Nut
7	Escutcheon
8	Spacer, Escutcheon Plate (3)
9	Knob, Control
10	Cabinet Front (Complete)
11	Cabinet Cabinet Front (Includes Items 31, 31 & 32)
12	Door, Control
13	Pin, Hinge
14	Spring, Catch
15	Nameplate
16	Filter
17	Retainer, Filter
18	WP854334 Whirlpool Air Conditioner Sealing Strip
18	Seal
19	Louver, Vertical
20	Handle, Vertical Louver (2)
21	Link, Vertical Louver (2)
22	Detent Spring (2)
23	Angle, Top
24	Bracket, R.S.
24	Bracket, L.S.
25	Angle (2)
26	Bracket
27	Bracket, R.S.
28	Spacer, Block (4)
29	Bag, Accessory
30	WP308685 Whirlpool Microwave Screw
31	Screw, Wood 8-15 x .750
32	WP965173 Whirlpool Dishwasher Screw
33	Gasket, Meeting Rail
34	Strip, Seal
36	Screw, 8 x 3/8
37	Clip, Mtg. (2) (Base to Front)
