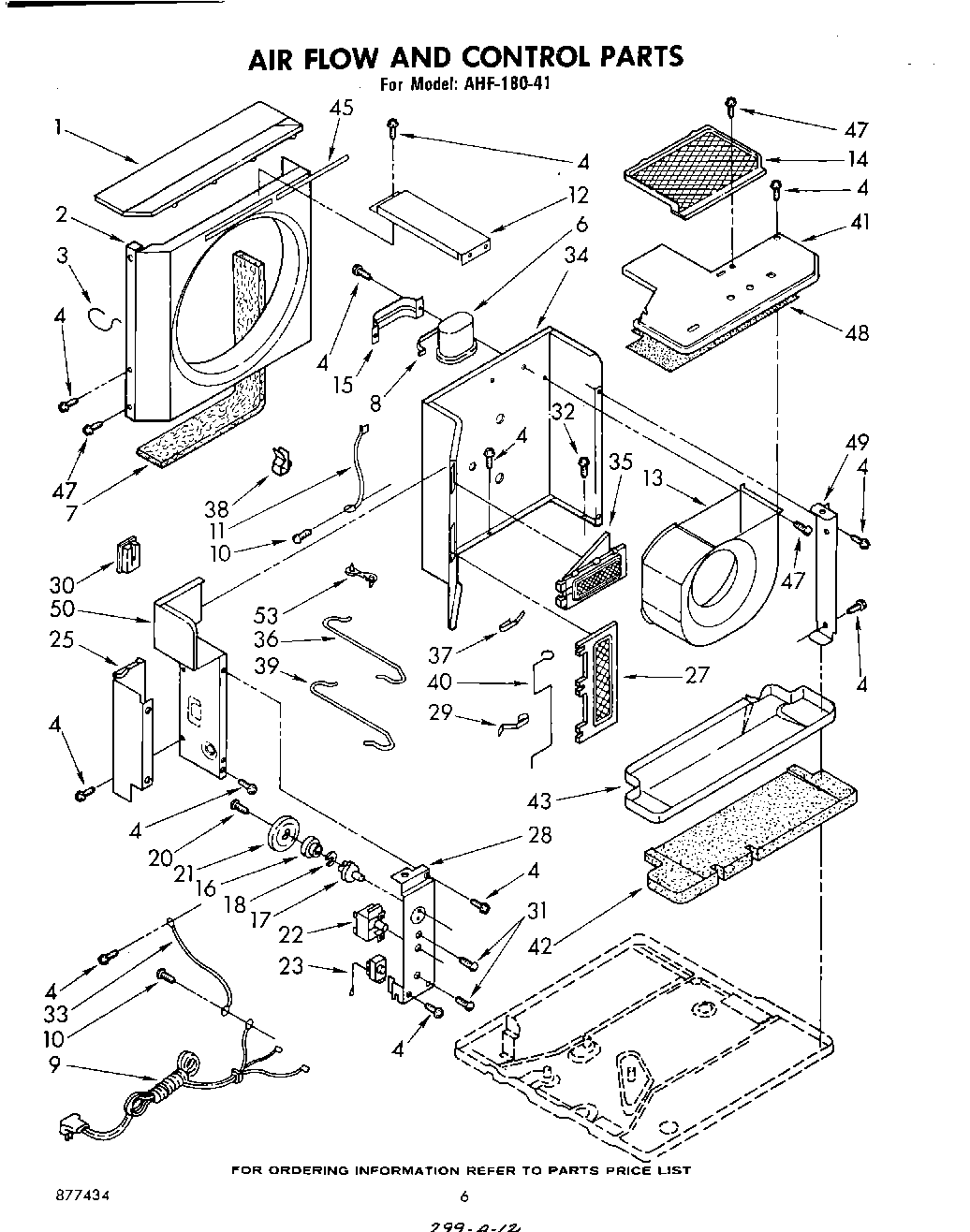

AHF18041 04 – AIR FLOW AND CONTROL, LIT/OPTIONAL

Products

Position	Product
1	Cover, Condenser Shroud
2	Shroud (Requires Insulation No. 469938)
3	Clip, Shroud (2)
4	WP489069 Whirlpool Compactor Screw
4	WP308685 Whirlpool Microwave Screw
6	Capacitor, Running
7	Seal, Condenser Fin
8	Bracket (Upper)
9	Cable, Appliance
10	WPW10141604 Whirlpool Screw
11	Wire, Ground (2)
12	Support, Unit
13	Housing, Blower Wheel
14	Guard, Evaporator Impeller
15	Bracket (Lower)
16	Bushing, Shaft
17	Shaft, Control
18	Washer
20	Screw, 7-18 x 5/8
21	Cam, Exhaust
22	Switch, Rotary
23	Control, Temperature
25	Cover, Control Access
27	Door, Fresh Air
28	Panel, Control
29	Spring, Door
30	Seal, Tube
31	Screw, 6-32 x .175
32	Screw, 8 x 3/8
33	Ground Wire
34	Wall, Dividing (Requires Insulation No. 469938)
35	Door, Exhaust
36	Wire, C
37	Spring, Door
38	Clamp, Cable
39	Wire, Control
40	Actuator, Door
41	Cover, Evaporator
42	Insulation, Pan
43	Pan, Condensate
45	seal, strip (shroud) (side)
45	WP854334 Whirlpool Air Conditioner Sealing Strip
47	WP488729 Whirlpool Refrigerator Door Screw
48	Insulation, Evaporator Cover
49	Adapter, Evaporator Header Plate
50	Extension, Dividing Wall
53	212643 Whirlpool Refrigerator Permagum Sealer
53	WPL 877434
53	WPL 947824
53	WPL 948446
53	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
53	Clamp, Cable
53	Cover, Winter (27 x 19 x 6 to 27“)
53	WPL 854937
53	WPL 854938
53	WPL 855438
53	WPL 947598
53	Insulation, Base
53	Lacquer, Starlight Gray (1/2 Pt. Uncut)
53	Wire, Red, (25 Ft.)
53	WPL 799351
53	Wire, 25“ Roll (White 12 GA.)
53	Wire, 25“ Roll (Black 12 GA.)
53	WPL 998166
