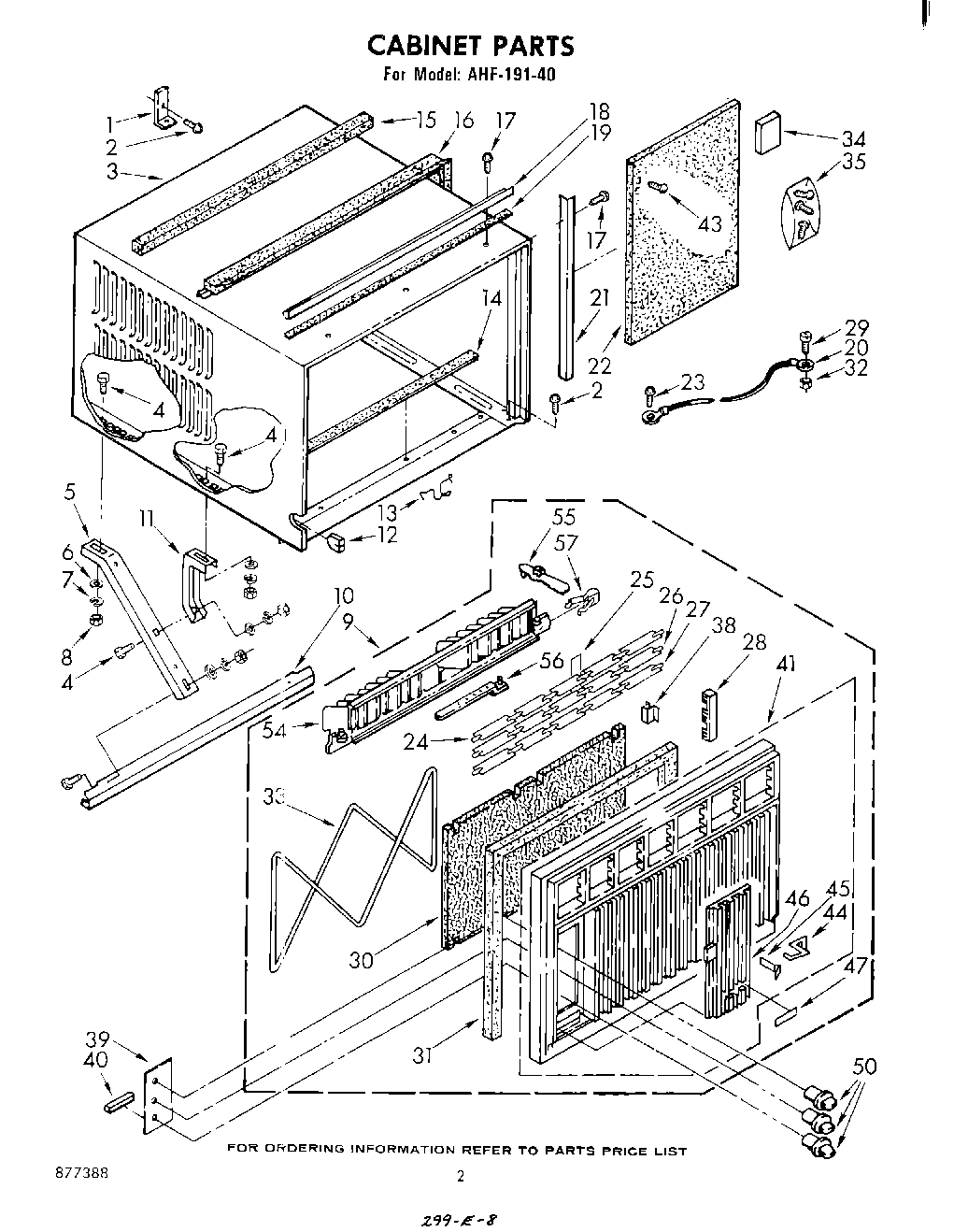

AHF19140 02 – CABINET

AHF19140 02 – CABINET

Written by

in

AHF19140 02 – CABINET

Products

PositionProduct
1Bracket
2Screw (Window Lock Bracket)
3Cabinet Also order Insulation NO.1157053 (3)
4Bolt, 1/4 x 3/4 (6)
5Support, Cabinet (2)
6WP120393 Whirlpool Washer Assembly
7Lockwasher (6)
8Nut, Hex (6)
9Front, Cabinet (Complete)
10Bracket, Support
11Support, Retainer (2)
12Grommet, Appliance Cable
13Clip, Mtg. (3)
14Seal, Bottom
15Gasket, Meeting Rail
16Gasket, Sash
17WP308685 Whirlpool Microwave Screw
18Angle, Top Mounting
19Strip, Seal
20Wire, Ground
21Angle (2)
22Board, Filler
23Screw, 8 x 3/8
24Louver, Horizontal (4)
25Retainer (4)
26Louver, Horizontal (Handle)
27Louver, Horizontal (Relieved)
28Rack, Louver (2)
29Screw, 8 x 3/8
30Filter, Air
31Seal, Front (Top & Sides)
31Seal, Front (Bottom)
32WP486255 Whirlpool Air Conditioner Nut
33Retainer, Filter
34Spacer, Block (4)
35Bag, Accessory
38Clip, Retainer (4)
39Plate, Escutcheon
40Spacer, Escutcheon Plate (2)
41Frame, Front (Includes Illus. 44, 45 & 46)
43WP965173 Whirlpool Dishwasher Screw
44Pin, Hinge
45Spring, Catch
46Door, Control
47Nameplate
50Knob, Control
54Louver, Vertical
55Handle, Vertical Louver (2)
56Link, Vertical Louver (2)
57Detent Spring (2)
