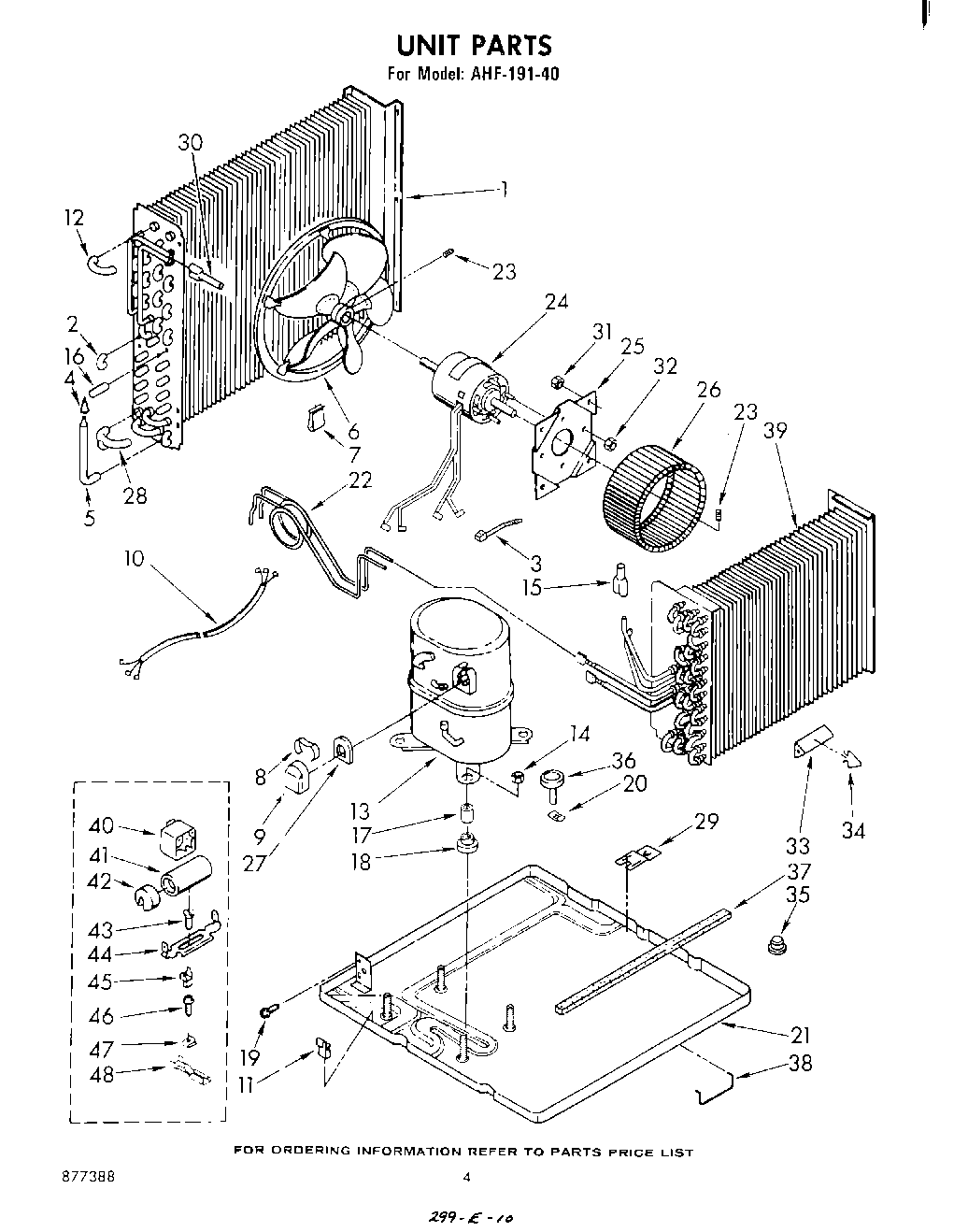

AHF19140 03 – UNIT
Written by
in
AHF19140 03 – UNIT
Products
Position
Product
1
Condenser
2
Bend, Return Evaporator (11)
3
WPW10339879 Whirlpool Wire Tie
4
Strainer
5
Tube & Strainer (Includes Item 23)
6
Blade, Fan
7
Clip, Balancing
8
Strap, Terminal Cover
9
Cover, Terminal
10
Harness, Wiring
11
Clamp (2)
12
Bend, Return Condenser (3) Evaporator (1)
13
Compressor
14
Locknut (3)
15
Tube, Flow Divider
16
WP855199 Whirlpool Bend Return
17
Sleeve (4)
18
Grommet (4)
19
WP488729 Whirlpool Refrigerator Door Screw
20
Speed Nut
21
Base
22
Tube Restrictor (3)
23
Setscrew, 5/16 x 1/4
24
Motor, Fan
25
WPL 998024
26
Wheel, Blower
27
Gasket, Terminal Cover
28
Bend, Return (3-Way)
29
Holder, Cup
30
Tube, Flow Divider
31
Nut, Hex (4)
32
WP488130 Whirlpool Air Conditioner Nut
33
Anticipator
34
Clip (2)
35
Bushing, Base
36
Cup, Condensate Drain
37
Seal
38
WPL 647971
39
Evaporator
40
xRelay
41
xCapacitor
42
xCap, Capacitor
43
Screw, 10 x 5/8 (Component Of Start Kit)
44
xMultiplier, Terminal
45
Multiplier, Terminal (Component Of Start Kit)
46
WP965173 Whirlpool Dishwasher Screw
47
488660 Whirlpool Refrigerator Nut
48
Clip, Terminal (Component Of Start Kit)
48
VALVE, ACCESS (5/8“)
48
978027 Whirlpool Refrigerator Primary Valve
48
978026 Whirlpool Refrigerator Primary Valve
48
WP978025 Whirlpool Refrigerator Valve
48
Hard Start Kit
48
WPL 484220
48
VALVE, ACCESS (1/2“)
48
Oil, Turbine 1 Fl. Oz.
48
Kit, Evaporator Repair (Aluminum Epoxy)
48
No Drip Tape (For Sweating Tubes)
48
978030 Whirlpool Refrigerator Valve
←
