AHF19140 04 – AIR FLOW AND CONTROL, LIT/OPTIONAL
Written by
in

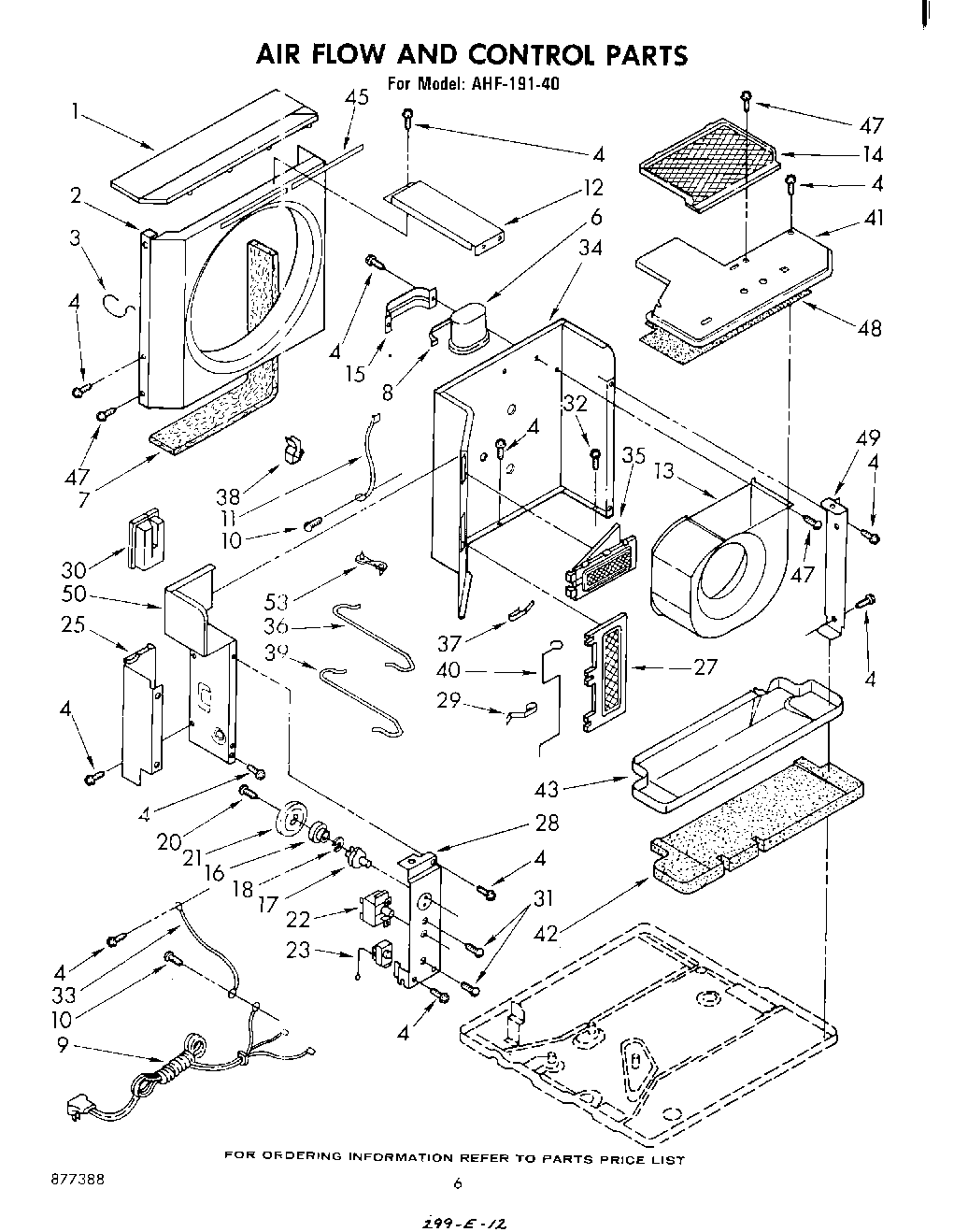

AHF19140 04 – AIR FLOW AND CONTROL, LIT/OPTIONAL
Products
Position
Product
1
Cover, Condenser Shroud
2
Shroud (Requires Insulation No. 469938)
3
Clip, Shroud (2)
4
WP489069 Whirlpool Compactor Screw
4
WP308685 Whirlpool Microwave Screw
6
Capacitor, Running
7
Seal, Condenser Fin
8
Bracket (Lower)
9
WPL 648411
10
WPW10141604 Whirlpool Screw
11
Wire, Ground (2)
12
Support, Unit
13
Housing, Blower Wheel
14
Guard, Evaporator Impeller
15
Bracket (Upper)
16
Bushing, Shaft
17
Shaft, Control
18
Washer
20
Screw, 7-18 x 5/8
21
Cam, Exhaust
22
Switch, Rotary
23
Control, Temperature
25
Cover, Control Access
27
Door, Fresh Air
28
Panel, Control
29
Spring, Door
30
Seal, Tube
31
Screw, 6-32 x .175
32
Screw, 8 x 3/8
33
Ground Wire
34
Wall, Dividing (Requires Insulation No. 469938)
35
Door, Exhaust
36
Wire, C
37
Spring, Door
38
Clamp, Cable
39
Wire, Control
40
Actuator, Door
41
Cover, Evaporator
42
Insulation, Pan
43
Pan, Condensate
45
seal, strip (shroud) (side)
45
WP854334 Whirlpool Air Conditioner Sealing Strip
47
WP488729 Whirlpool Refrigerator Door Screw
48
Insulation, Evaporator Cover
49
Adapter, Evaporator Header Plate
50
Extension Assembly, Divider Wall
53
WPL 948937
53
WPL 877388
53
WPL 949728
53
Wire, 25“ Roll (Black 12 GA.)
53
Clamp, Cable
53
Wire, 25“ Roll (White 12 GA.)
53
212643 Whirlpool Refrigerator Permagum Sealer
53
WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
53
Insulation, Base
53
Lacquer, Starlight Gray (1/2 Pt. Uncut)
53
WPL 854937
53
WPL 854938
53
WPL 947598
53
Wire, Red, (25 Ft.)
53
WPL 855438
53
WPL 799351
53
WPL 949729
←
