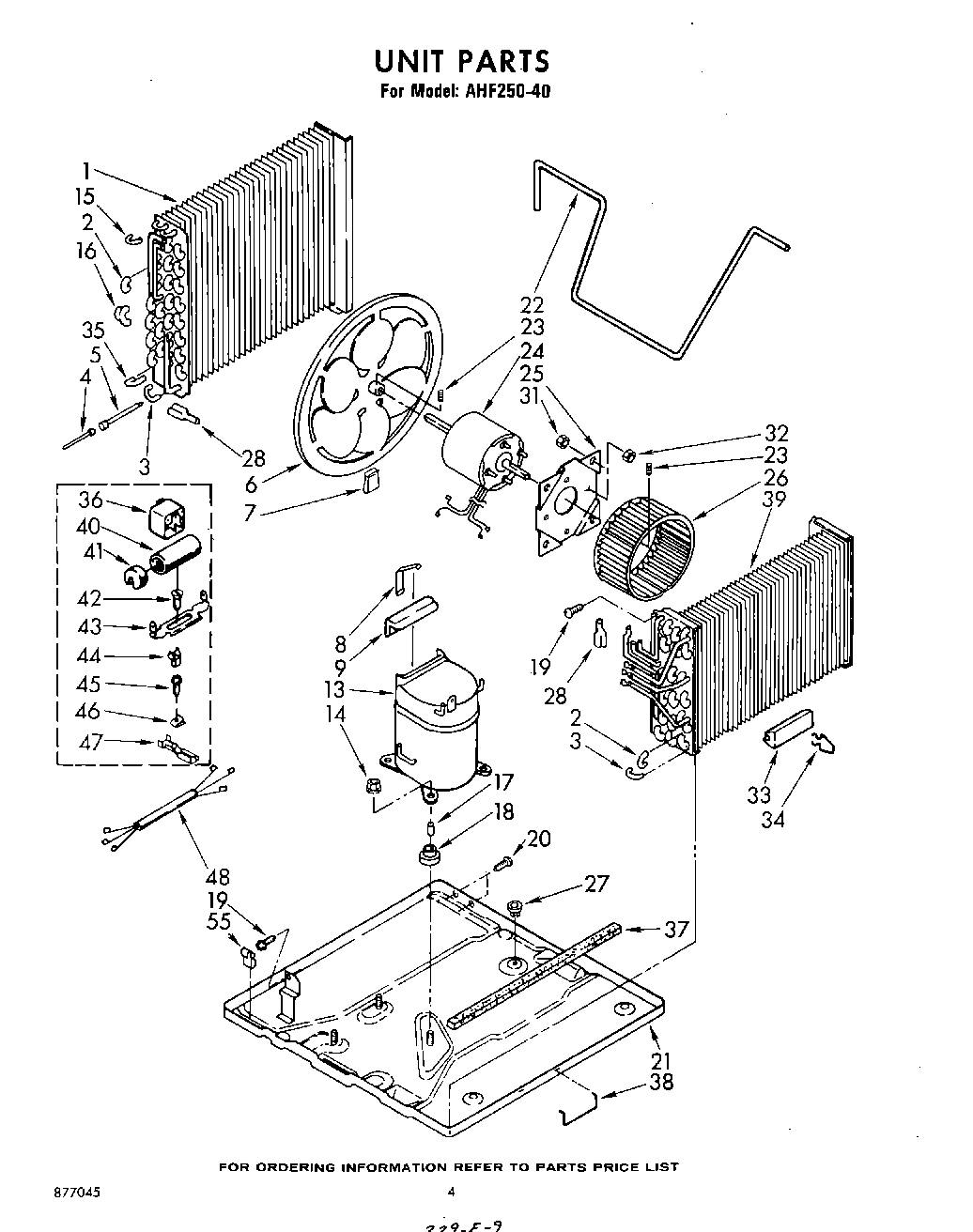

AHF25040 03 – UNIT

Products

Position	Product
1	WPL 997227
2	Bend, Return Evaporator (11)
3	Bend, Return Evaporator (4)
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Blade, Fan
7	Clip, Balancing
8	Retainer, Cover
9	Cover, Terminal
13	Compressor
14	Locknut (3)
15	Bend, Return Evaporator (4)
16	Bend, Return (3-Way)
17	Sleeve (4)
18	Grommet (4)
19	WP489069 Whirlpool Compactor Screw
19	WP308685 Whirlpool Microwave Screw
20	WP488729 Whirlpool Refrigerator Door Screw
21	Base
22	Tube, Restrictor (3)
23	Setscrew, 5/16 x 1/4
24	Motor, Fan
25	WPL 998024
26	Wheel, Blower
27	Bushing, Base
28	Tube, Flow Divider
31	Nut, Hex (4)
32	WP488130 Whirlpool Air Conditioner Nut
33	Anticipator
34	Clip (2)
35	Return Bend (2)
36	Relay
37	Seal
38	WPL 647971
39	Evaporator
40	xCapacitor
41	xCap, Capacitor
42	Screw, 10 x 5/8 (Component Of Start Kit)
43	xMultiplier, Terminal
44	WP965173 Whirlpool Dishwasher Screw
45	Multiplier, Terminal (Component Of Start Kit)
46	488660 Whirlpool Refrigerator Nut
47	Clip, Terminal (Component Of Start Kit)
48	Harness, Wiring
55	Clamp (2)
