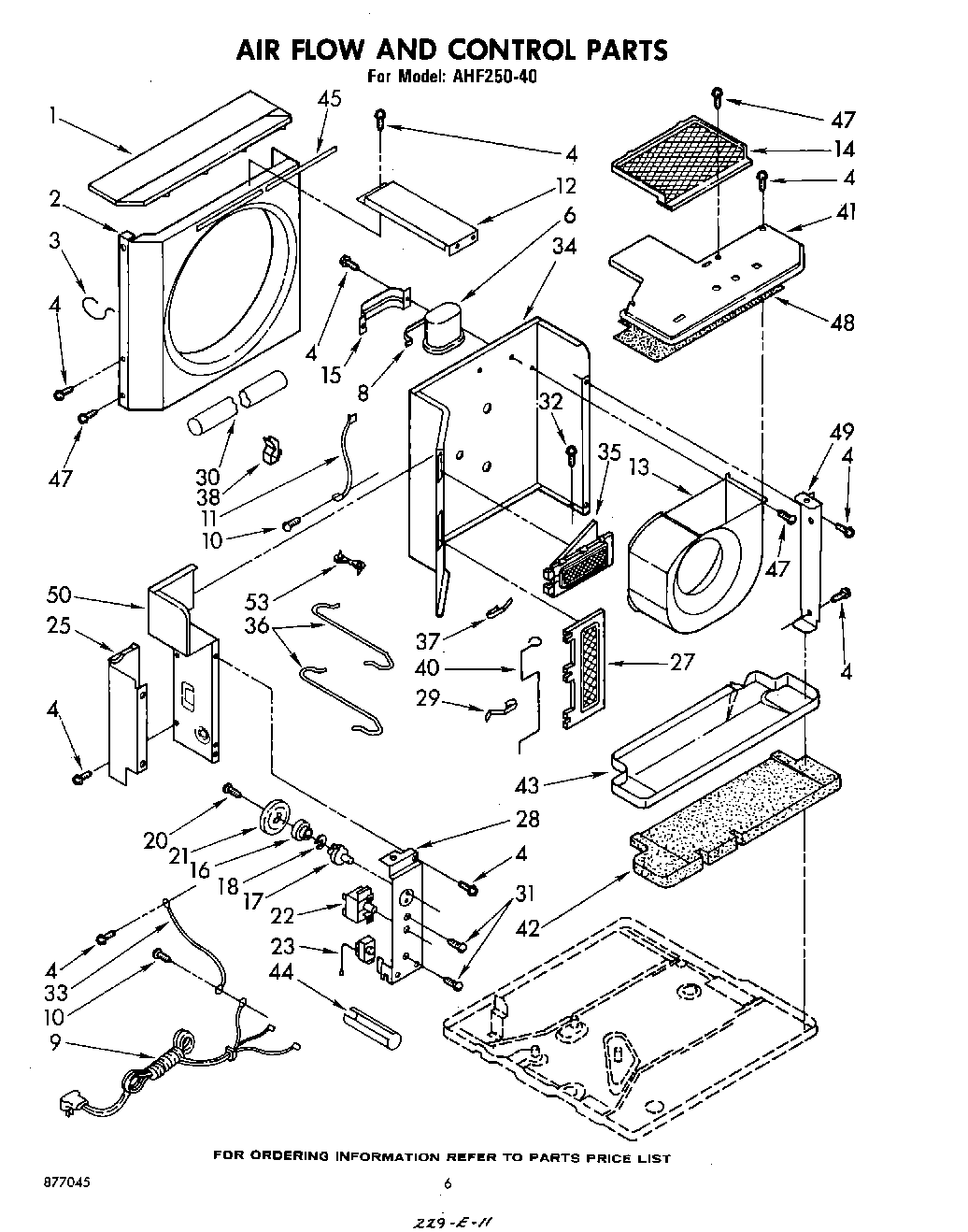

AHF25040 04 – AIRFLOW AND CONTROL , LITERATURE AN

Products

Position	Product
1	Cover, Condenser Shroud
2	Shroud (Requires Insulation No. 469938)
3	Clip, Shroud (2)
4	WP308685 Whirlpool Microwave Screw
4	WP489069 Whirlpool Compactor Screw
6	Capacitor, Running
8	Bracket (Lower)
9	Cable, Appliance
10	WPW10141604 Whirlpool Screw
11	Wire, Ground (2)
12	Support, Unit
13	Housing, Blower Wheel
14	Guard, Evaporator Impeller
15	Bracket (Upper)
16	Bushing, Shaft
17	Shaft, Control
18	Washer
20	WP488787 Whirlpool Refrigerator Screw
21	Cam, Exhaust
22	Switch, Rotary
23	Control, Temperature
25	Cover, Control Access
27	Door, Fresh Air
28	Panel, Control
29	Spring, Door
30	Sealer, Tube
31	Screw, 6-32 x .175
32	Screw, 8 x 3/8
33	Ground Wire
34	Wall, Dividing (Requires Insulation No. 469938)
35	Door, Exhaust
36	Wire, Control
36	Wire, C
37	Spring, Door
38	Clamp, Cable
40	Actuator, Door
41	Cover, Evaporator
42	Insulation, Pan
43	Pan, Condensate
44	Insulation, Sleeve
45	Seal, Strip
45	WP854334 Whirlpool Air Conditioner Sealing Strip
45	seal, strip (shroud) (side)
47	WP488729 Whirlpool Refrigerator Door Screw
48	Insulation, Evaporator Cover
49	Adapter, Evaporator Header Plate
50	Extension Assembly, Divider Wall
53	WPL 947598
53	WP978025 Whirlpool Refrigerator Valve
53	978030 Whirlpool Refrigerator Valve
53	978027 Whirlpool Refrigerator Primary Valve
53	VALVE, ACCESS (1/2“)
53	978026 Whirlpool Refrigerator Primary Valve
53	WPL 978317
53	WPL 998179
53	212643 Whirlpool Refrigerator Permagum Sealer
53	VALVE, ACCESS (5/8“)
53	WPL 877045
53	Wire, 25“ Roll (Black 12 GA.)
53	Wire, 25“ Roll (White 12 GA.)
53	WPL 855438
53	Insulation, Base
53	WPL 484220
53	Clamp, Cable
53	Cover, Winter (27 x 19 x 6 to 27“)
53	No Drip Tape (For Sweating Tubes)
53	Lacquer, Starlight Gray (1/2 Pt. Uncut)
53	Wire, Red, (25 Ft.)
53	Insulation, Fiberglass (1/4“ x 24“ x 48“)
53	Oil, Turbine 1 Fl. Oz.
53	WPL 799351
53	Start Kit, Compressor
53	WPL 948449
