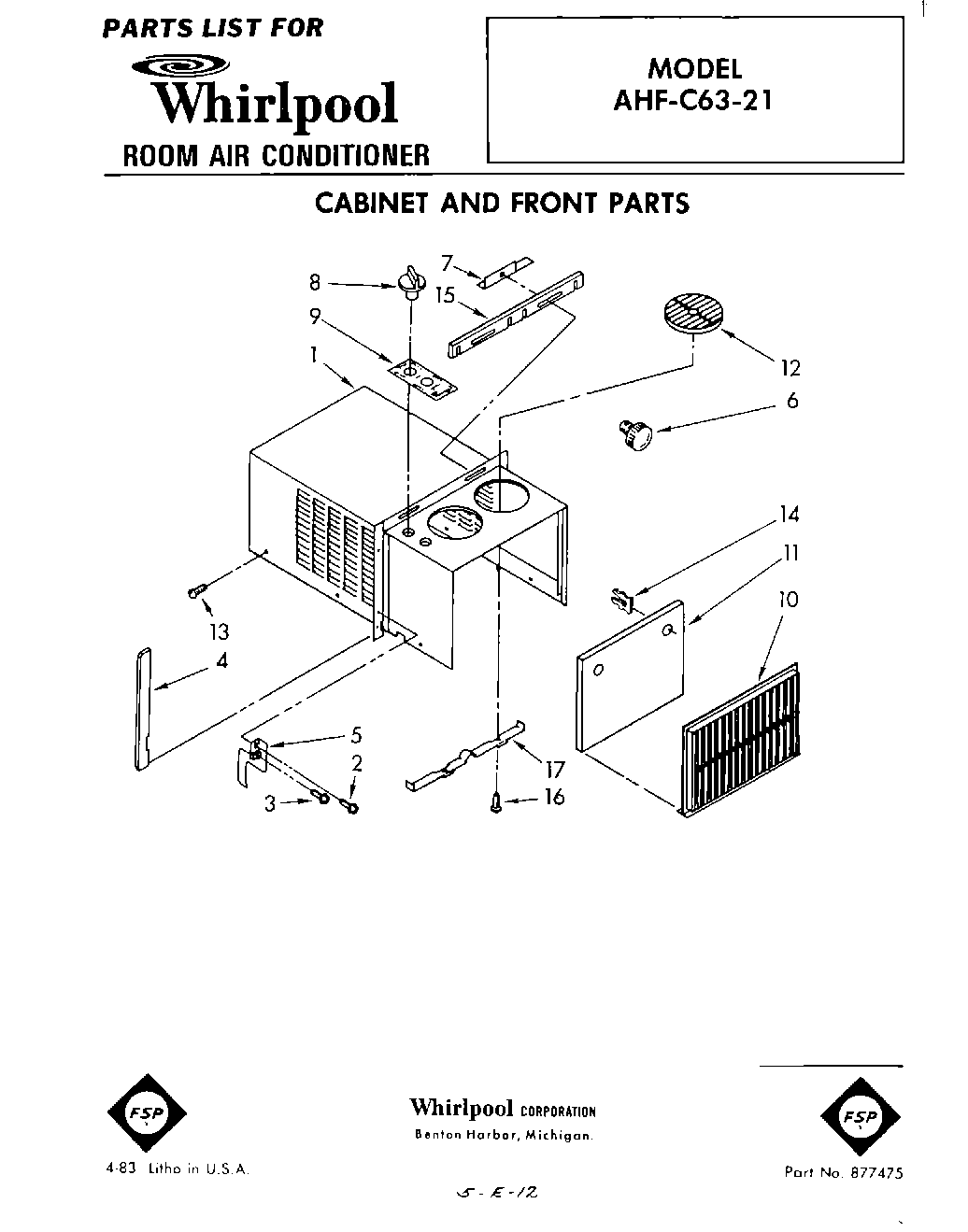

| 1 | Cabinet |
| 2 | Screw (Repair) |
| 3 | Bolt, 10 x 3/8 |
| 4 | Seal, L.H. Cabinet |
| 4 | Seal, R.H. Cabinet |
| 5 | clip, window l.h. |
| 5 | Clip, Window R.H. |
| 6 | Knob, Top Slide Adjustable (2) |
| 7 | Slide, Top L.H. |
| 7 | Slide, Top R.H. |
| 8 | Knob (3) |
| 9 | Escutcheon, Control |
| 10 | Frame, Front |
| 11 | Filter |
| 12 | Wheel, Air Deflection (2) |
| 13 | WP965173 Whirlpool Dishwasher Screw |
| 14 | Retainer, Filter (2) |
| 15 | Seal, Top Cabinet |
| 16 | Screw, 6-20 x 3/8 (2) |
| 17 | Retainer, Deflector |
