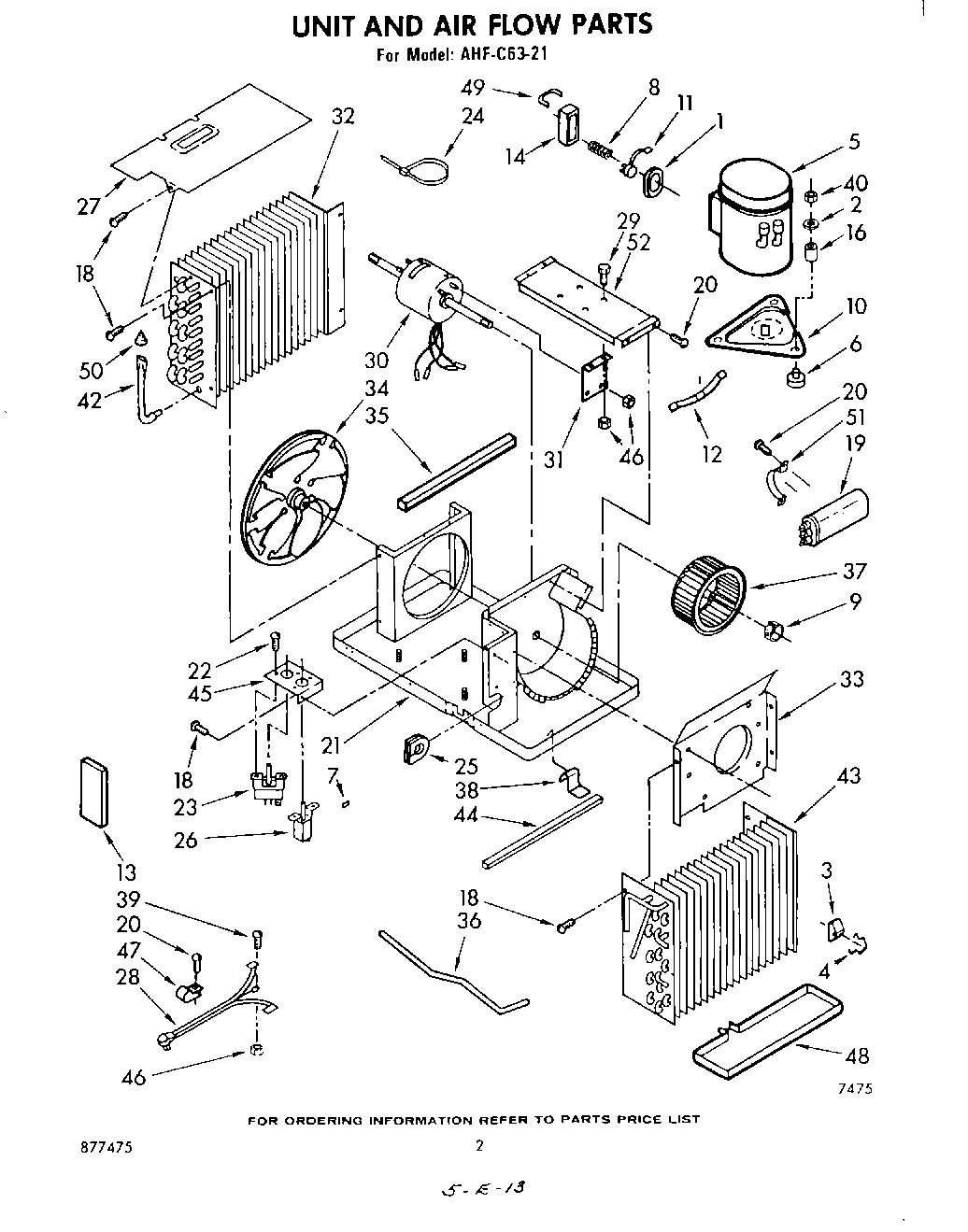

AHFC6321 02 – SECTION

Products

Position	Product
1	Gasket, Cover
2	WP486255 Whirlpool Air Conditioner Nut
3	Anticipator, Temperature
4	Clip, Temperature Anticipator
5	Compressor
6	Grommet (4)
7	Pad, Protector
8	Spring, Overload
9	Clip, Wheel Mounting
10	Plate, Compressor Mounting
11	Overload
12	spring, compressor mounting
13	Seal, Strip
14	Cover, Terminal
16	Sleeve (4)
18	WP965173 Whirlpool Dishwasher Screw
19	Capacitor
20	WP488729 Whirlpool Refrigerator Door Screw
21	Base Assembly
22	Screw, Machine 6-32 x .175 (4)
23	Switch, Rotary
25	Grommet, Tube
26	Control, Temperature
27	Cover, Shroud Condenser
28	Cord, Power
29	WP999367 Whirlpool Refrigerator Screw
30	Motor, Fan
31	Bracket, Motor
32	Condenser
33	Cover, Housing
34	Fan, Slinger
35	Seal, Strip
36	Tube, Restrictor
37	Wheel, Blower
38	Clip, Front Mounting (2)
39	WP489128 Whirlpool Refrigerator Screw
40	Nut, 5/16-18 (3)
42	Tube, Strainer
43	Evaporator
44	Seal, Cabinet Bottom
45	Plate, Switch
46	WP488130 Whirlpool Air Conditioner Nut
47	Clamp, Cord
48	Pan, Condensate
49	Retainer, Cover
50	Strainer, Tube
51	Bracket, Capacitor
52	212643 Whirlpool Refrigerator Permagum Sealer
52	Wire, 25“ Roll (Black 12 GA.)
52	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
52	VALVE, ACCESS (1/2“)
52	978030 Whirlpool Refrigerator Valve
52	WP978025 Whirlpool Refrigerator Valve
52	978027 Whirlpool Refrigerator Primary Valve
52	978026 Whirlpool Refrigerator Primary Valve
52	Wire, 25“ Roll (White 12 GA.)
52	WPL 980715
52	Lacquer, Starlight Gray (1/2 Pt. Uncut)
52	Kit, Evaporator Repair (Aluminum Epoxy)
52	Wire, Red, (25 Ft.)
52	Insulation, Fiberglass (1/4“ x 24“ x 48“)
52	WPL 877475
52	WPL 977913
52	WPL 977914
52	WPL 977916
52	VALVE, ACCESS (5/8“)
52	WPL 799351
52	WPL 977989
52	WPL 977938
