AHFE1440 01 – SECTION

Products

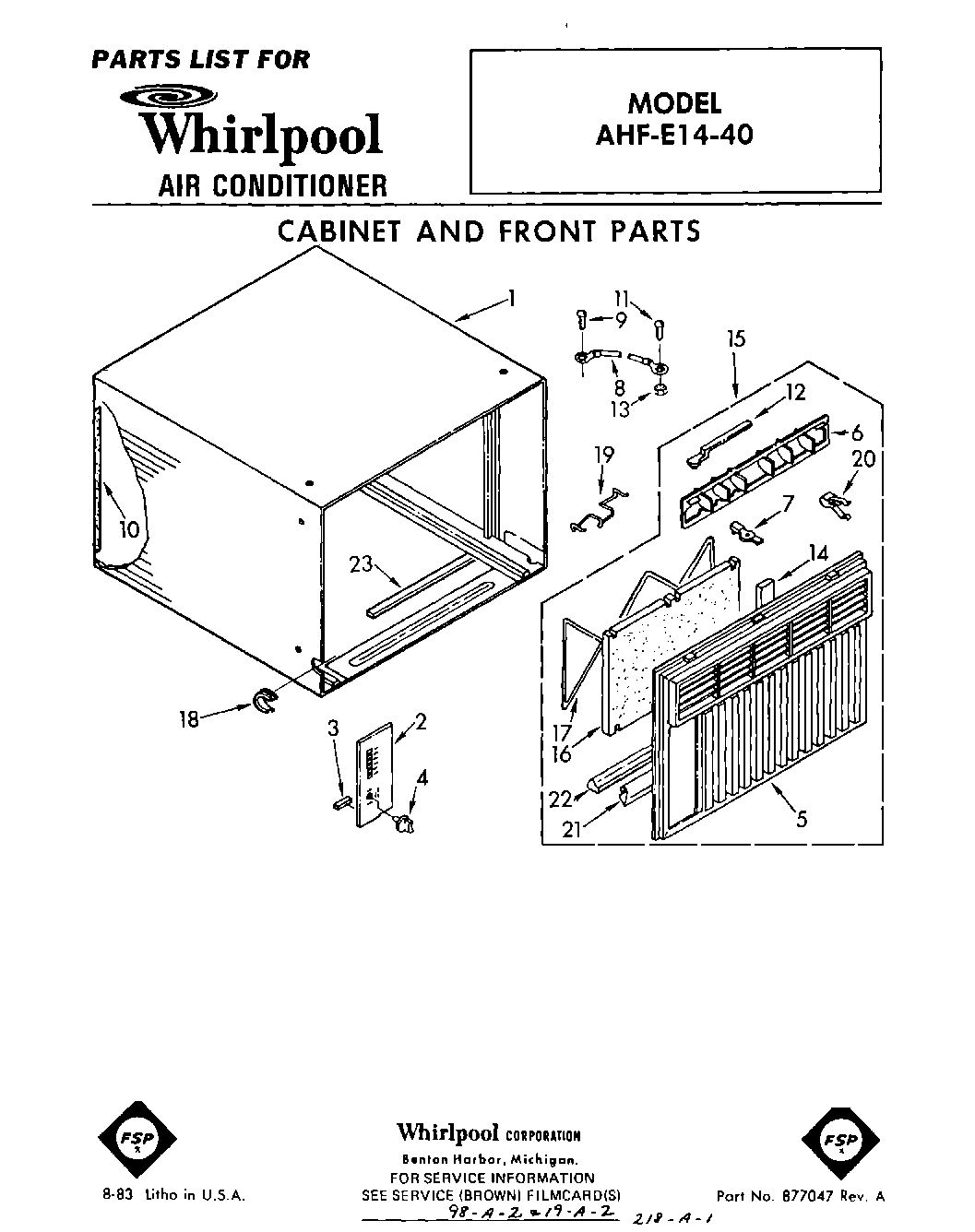

PositionProduct
1Cabinet
2Escutcheon, Plate
3Spacer, Escutcheon Plate (3)
4Knob, Control
5Front, Cabinet
6Louver, Vertical
7Handle, Vertical Louver (2)
8Wire, Ground
9Screw, 8 x 3/8
11Screw, 8 x 3/8
12Link, Vertical Louver (2)
13WP486255 Whirlpool Air Conditioner Nut
14Seal
15Front, Complete
16Filter
17Retainer, Filter
18Grommet, Appliance Cable
19Clip, Mtg. (2) (Base to Front)
20Detent Spring (2)
21WP854334 Whirlpool Air Conditioner Sealing Strip
22Seal
23Seal
