AHFE1440 02 – SECTION

AHFE1440 02 – SECTION

Written by

in

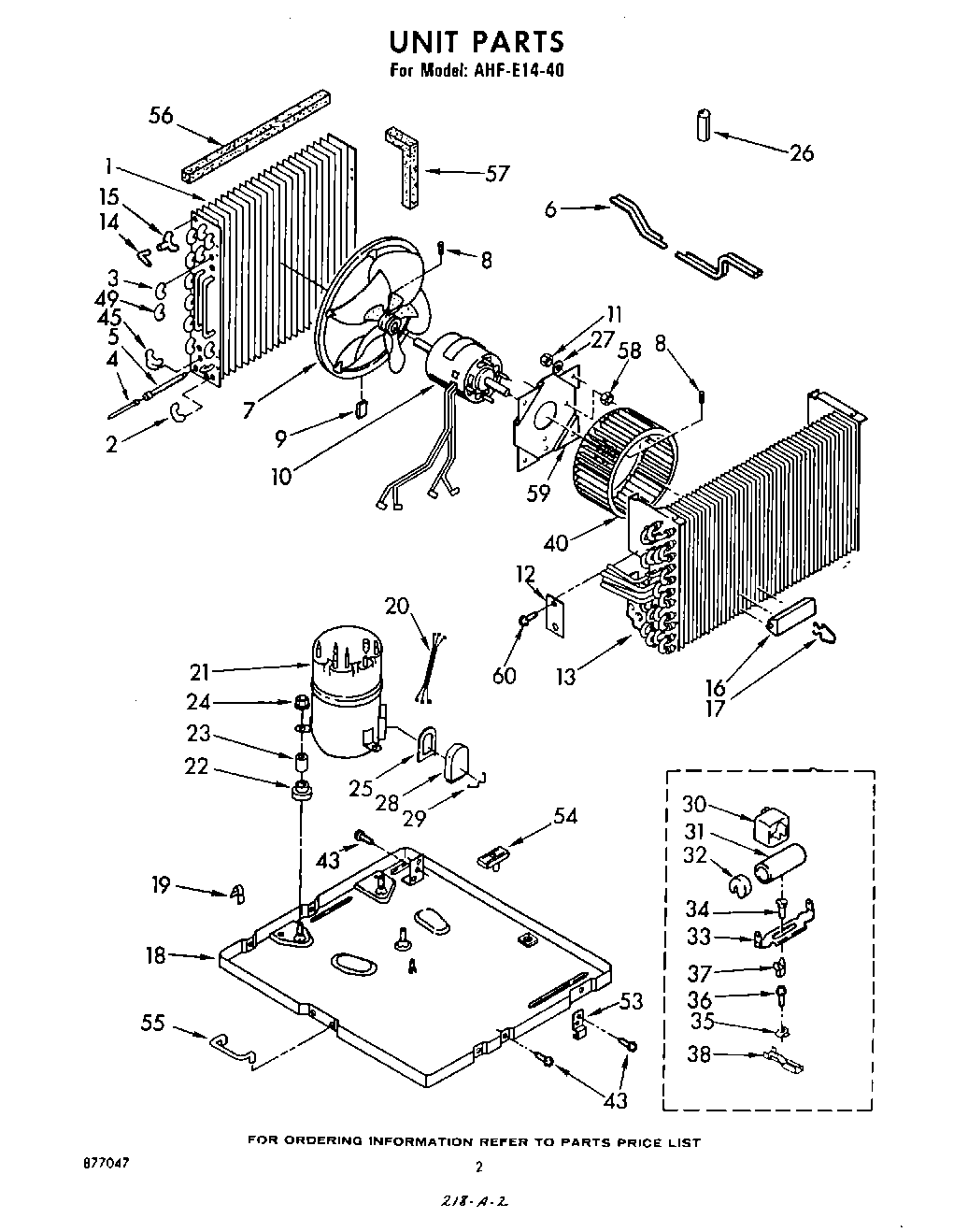

AHFE1440 02 – SECTION

Products

Position	Product
1	Condenser Assembly
2	Bend, Return Evaporator (4)
3	Bend, Return Evaporator (11)
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Tube, Restrictor (2) (33“ Length)
7	Blade, Fan
8	Setscrew, 5/16 x 1/4
9	Clip, Balancing
10	Motor, Fan
11	Nut, Hex (4)
12	Cover, Tube Opening
13	Evaporator
14	Tube Inlet
15	Bend, Return (3-Way)
16	Anticipator
17	Clip, Anticipator
18	Base
19	Clamp, Restrictor Tube
20	Harness, Wiring
21	Compressor
22	Grommet, Compressor (3)
23	Sleeve, Compressor (3)
24	Locknut (3)
25	Gasket, Terminal Cover
26	Dampener
27	Washer, Repair (4)
28	Cover, Terminal
29	Strap, Terminal Cover
30	Relay (Component Of Start Kit)
31	Capacitor (Component Of Start Kit)
32	cap, capacitor (component of start kit)
33	Bracket, Capacitor (Component Of Start Kit)
34	Screw, 10 x 5/8 (Component Of Start Kit)
35	488660 Whirlpool Refrigerator Nut
37	Multiplier, Terminal (Component Of Start Kit)
38	Clip, Terminal (Component Of Start Kit)
40	Wheel, Blower
43	Screw, Repair
43	WP489069 Whirlpool Compactor Screw
45	Bend, Return 3-Way
49	Bend, Return Evaporator (4)
53	WPL 647824
54	WPL 647850
55	WPL 647971
56	WPL 649609
57	WPL 649610
58	WP488130 Whirlpool Air Conditioner Nut
59	WPL 998024
60	WPL 998459
60	Kit, Compressor Start
60	WPL 948439
60	WPL 877047
60	WPL 647846
60	Wire, 25“ Roll (White 12 GA.)
60	Wire, 25“ Roll (Black 12 GA.)
60	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
60	WP978025 Whirlpool Refrigerator Valve
60	978030 Whirlpool Refrigerator Valve
60	978027 Whirlpool Refrigerator Primary Valve
60	978026 Whirlpool Refrigerator Primary Valve
60	212643 Whirlpool Refrigerator Permagum Sealer
60	WP965173 Whirlpool Dishwasher Screw
60	WPL 799351
60	Oil, Turbine 1 Fl. Oz.
60	Wire, Red, (25 Ft.)
60	VALVE, ACCESS (1/2“)
60	WPL 947599
60	WPL 649939
60	WPL 647848
60	WPL 647847
60	WPL 484220
60	Cover, Winter (27 x 19 x 6 to 27“)
60	No Drip Tape (For Sweating Tubes)
60	Lacquer, Starlight Gray (1/2 Pt. Uncut)
60	VALVE, ACCESS (5/8“)
