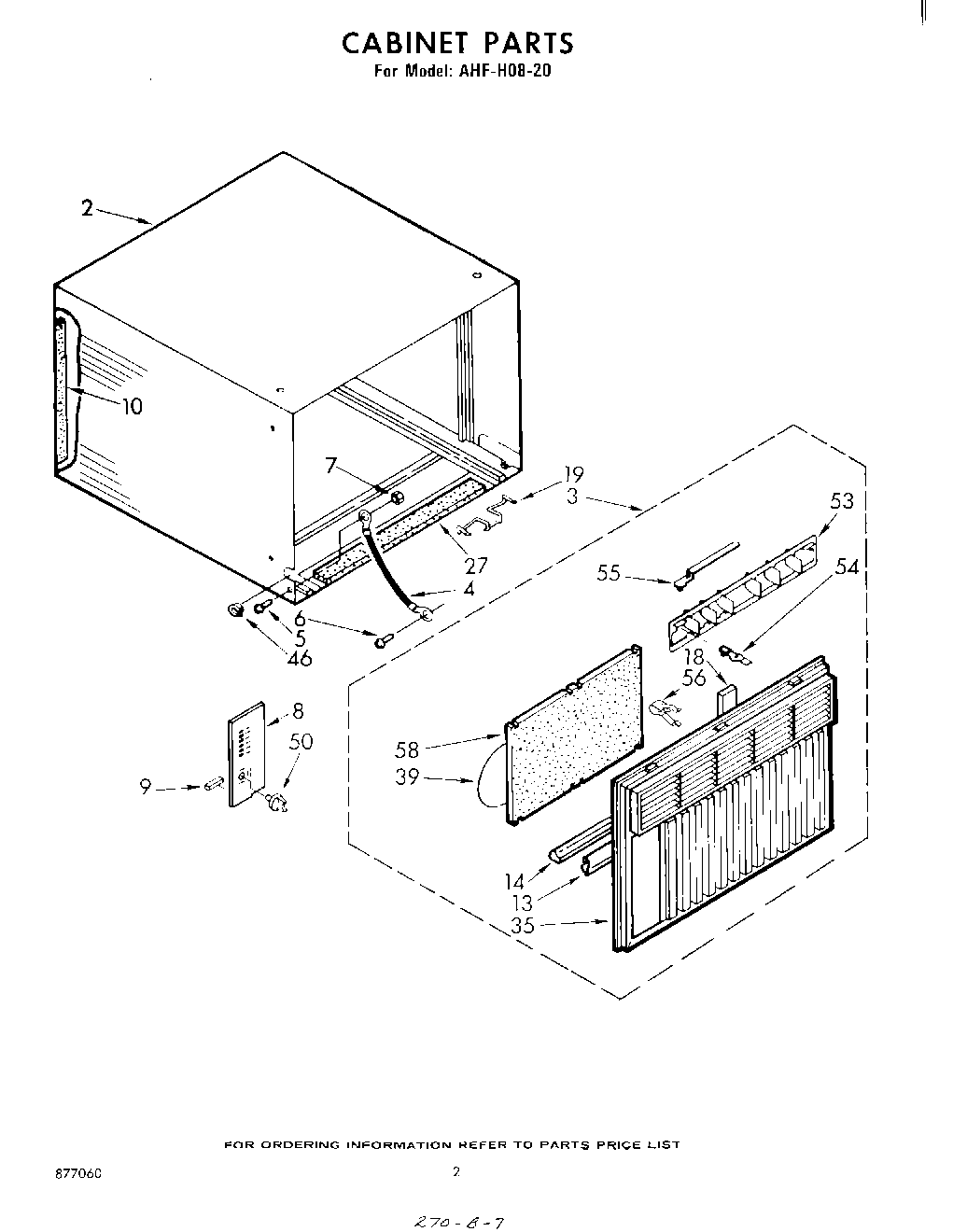

| 2 | Cabinet |
| 3 | Front, Complete |
| 4 | Wire, Ground |
| 5 | Screw, 8 x 3/8 |
| 6 | Screw, 8 x 3/8 |
| 7 | WP486255 Whirlpool Air Conditioner Nut |
| 8 | Escutcheon, Plate |
| 9 | Spacer, Escutcheon Plate (3) |
| 13 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 14 | Seal |
| 18 | Seal |
| 19 | Clip (2) |
| 27 | Seal |
| 35 | Front, Cabinet |
| 39 | Retainer, Filter |
| 46 | Grommet, Appliance Cable |
| 50 | Knob, Control |
| 53 | Louver, Vertical |
| 54 | Handle, Vertical Louver (2) |
| 55 | Link, Vertical Louver (2) |
| 56 | Detent Spring (2) |
| 58 | Filter |
