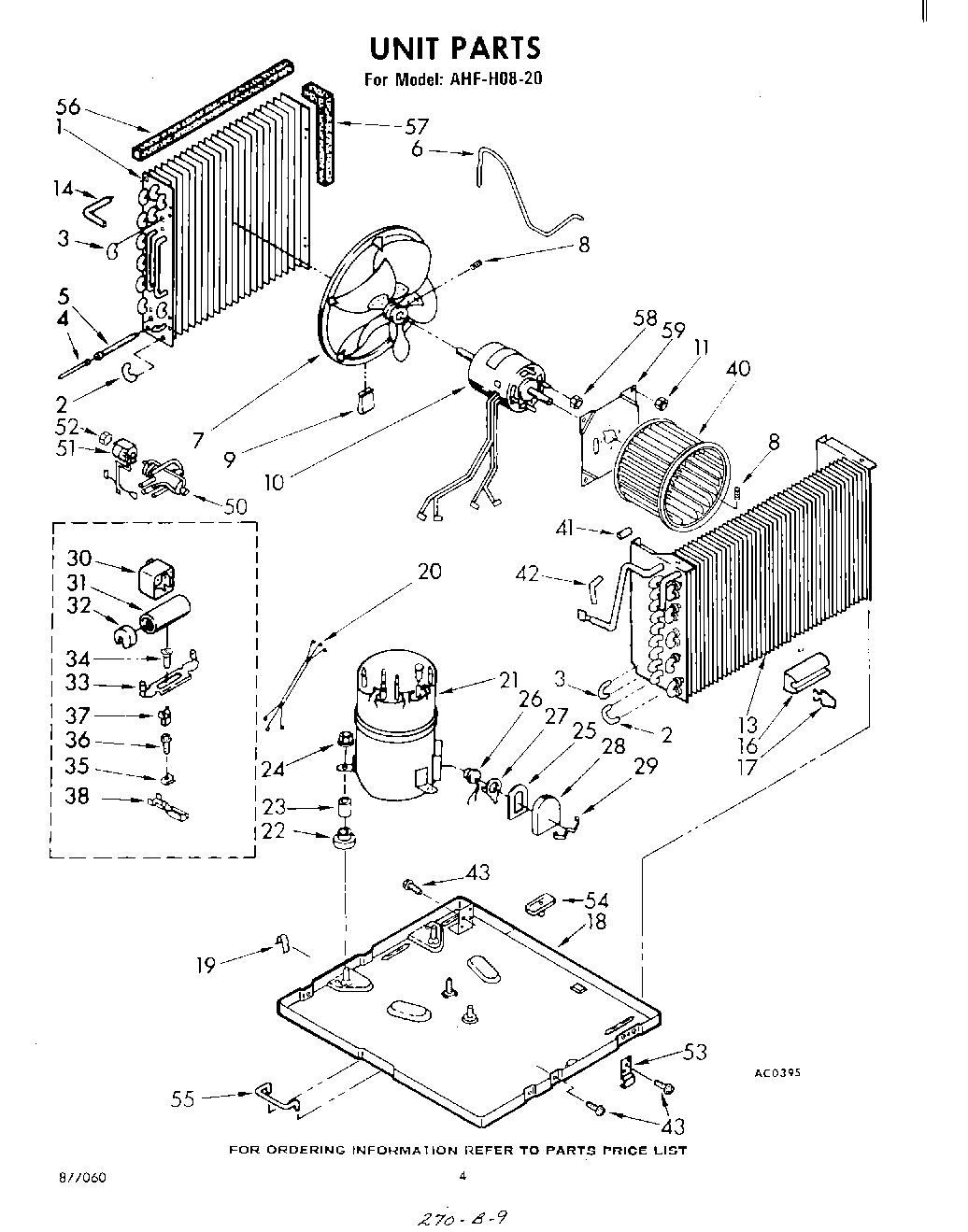

AHFH0820 03 – UNIT , LIT/OPTIONAL

Products

Position	Product
1	Condenser
2	Bend, Return Evaporator (4)
3	Bend, Return Evaporator (11)
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Tube, Restrictor
7	Blade, Fan
8	Setscrew, 5/16 x 1/4
9	Clip, Balancing
10	Motor, Fan
11	Nut, Hex (4)
13	Evaporator
14	Tube Inlet
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	Clamp (2)
20	Harness, Wiring
21	Compressor
22	Grommet, Compressor (3)
23	Sleeve, Compressor (3)
24	Locknut (3)
25	Gasket, Terminal Cover
26	Overload
27	Spring, Overload
28	Cover, Terminal
29	Strap, Terminal Cover
30	Relay (Component Of Start Kit)
31	capacitor (component of start kit)
32	cap, capacitor (component of start kit)
33	Bracket, Capacitor (Component Of Start Kit)
34	Screw, 10 x 5/8 (Component Of Start Kit)
35	488660 Whirlpool Refrigerator Nut
36	WP965173 Whirlpool Dishwasher Screw
37	Multiplier, Terminal (Component Of Start Kit)
38	Clip, Terminal (Component Of Start Kit)
40	Wheel, Blower
41	Strainer
42	Bend, 90~
43	WP489069 Whirlpool Compactor Screw
43	Screw, Repair
50	Reversing Valve (Use W/852978)
50	Reversing Valve (Use W/996215)
51	Solenoid, Coil (Use W/996213)
51	Solenoid Coil (Use W/467396)
52	WP488826 Whirlpool Nut
53	WPL 647824
54	WPL 647850
55	WPL 647971
56	WPL 649609
57	WPL 649610
58	WP488130 Whirlpool Air Conditioner Nut
59	VALVE, ACCESS (1/2“)
59	WPL 647846
59	Oil, Turbine 1 Fl. Oz.
59	WPL 799351
59	Wire, 25“ Roll (White 12 GA.)
59	Wire, 25“ Roll (Black 12 GA.)
59	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
59	WP978025 Whirlpool Refrigerator Valve
59	978030 Whirlpool Refrigerator Valve
59	978027 Whirlpool Refrigerator Primary Valve
59	978026 Whirlpool Refrigerator Primary Valve
59	212643 Whirlpool Refrigerator Permagum Sealer
59	Wire, Red, (25 Ft.)
59	Kit, Evaporator Repair (Aluminum Epoxy)
59	Lacquer, Starlight Gray (1/2 Pt. Uncut)
59	WPL 998024
59	WPL 947599
59	WPL 877060
59	WPL 649939
59	WPL 647848
59	WPL 647847
59	WPL 485608
59	WPL 484220
59	Cover, Winter (27 x 19 x 6 to 27“)
59	No Drip Tape (For Sweating Tubes)
59	VALVE, ACCESS (5/8“)
