AHFK24BAW1 ROOM AIR CONDITIONER

Products

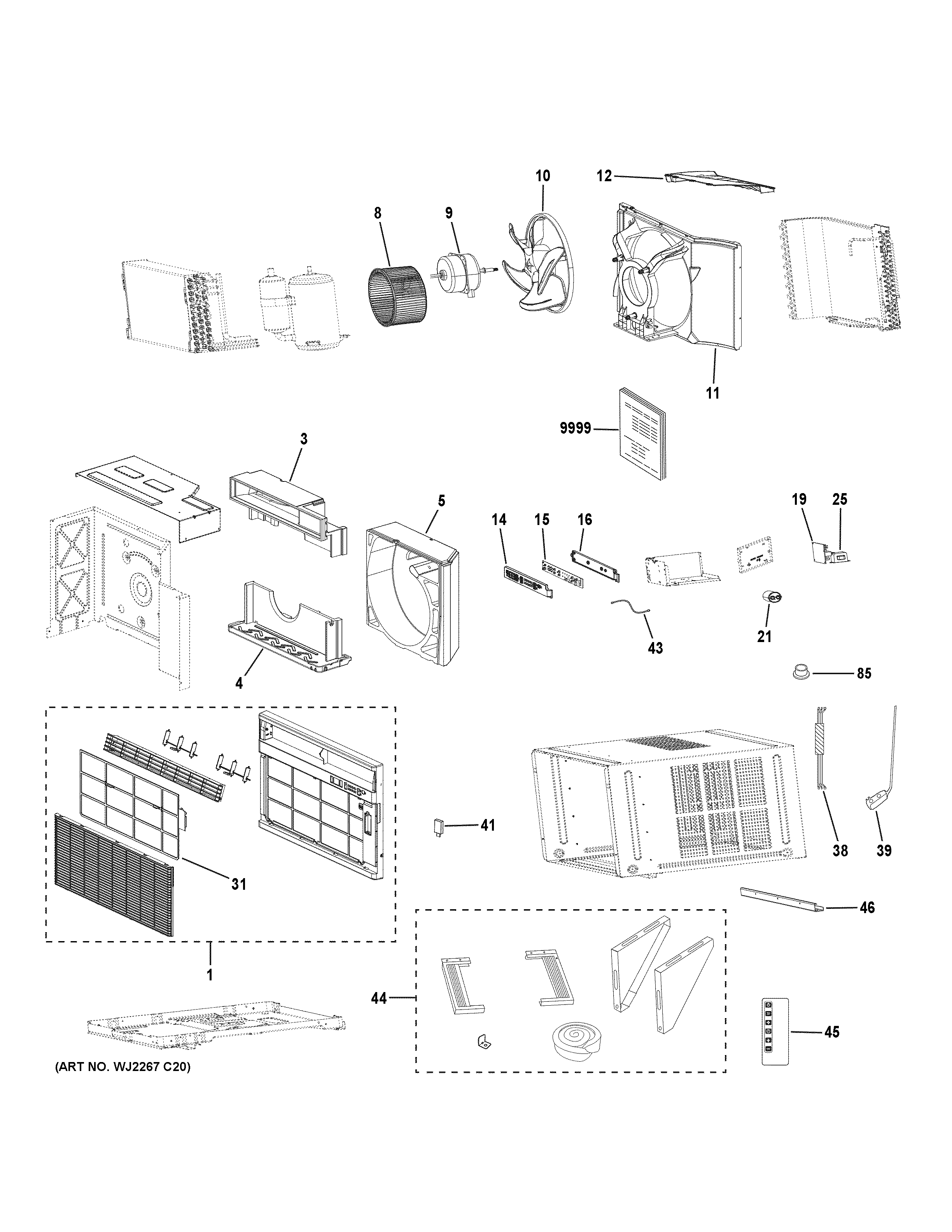

PositionProduct
1WJ71X24435 GE Air Conditioner FrontPanel Assembly
3WJ76X25899 GE Upper Indoor Fan Shroud
4WJ76X25900 GE Indoor Fan Shroud
5WJ76X25901 GE Indoor Fan Shroud Lower
8WJ73X25902 GE Indoor Fan Blade
9WJ94X25904 GE Air Conditioner Fan Motor
10WJ73X20130 GE Air Conditioner Axial Fan
11WJ76X23948 GE Outdoor Shroud Fan
12WJ76X20154 GE Rear Cover Board
14WJ26X23868 GE Air Conditioner UI Board Cover
15WJ26X29233 GE UI Board
16WJ26X23867 GE Air Conditioner UI Board Support
19WJ26X27741 GE Air Conditioner Main Control Board
21WJ20X24430 GE Capacitor
25WJ27X26685 GE Transformer
31WJ85X23947 GE Air Conditioner Filter
38WJ36X10023 GE Harness
39POWER CORD
41WJ26X28017 GE Wi-Fi Module
43WJ35X23134 GE Wiring Harness
44WJ01X25911 GE Air Conditioner Installation Parts
45WJ26X27734 GE Remote
46TOP RAIL
85WJ05X20122 GE Plug
9999PM MINI MANUAL AND WIRING
9999PM OWNERS MANUAL
