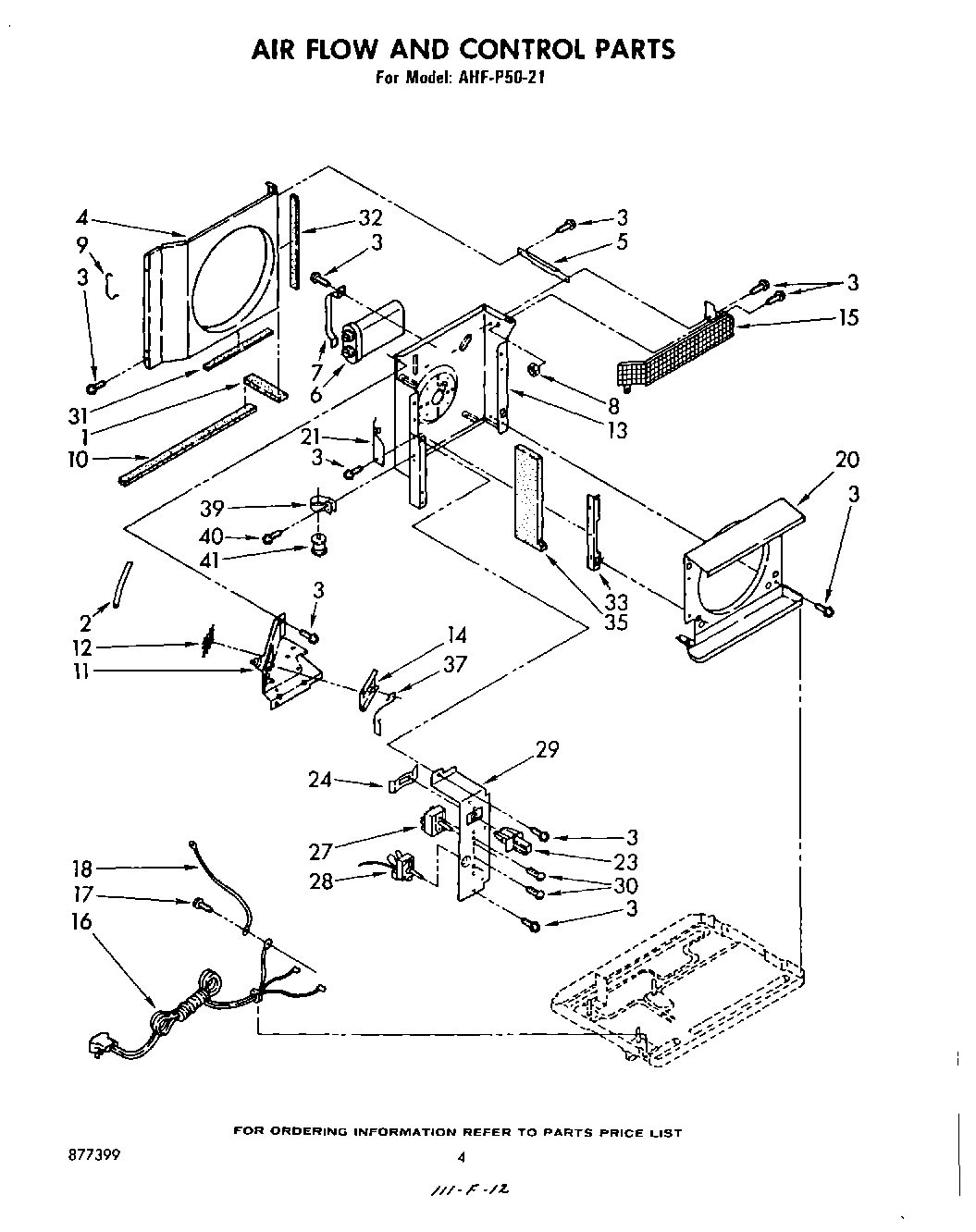

AHFP5021 03 – SECTION

Products

Position	Product
1	Seal, Condensate
3	WP489069 Whirlpool Compactor Screw
3	Screw, Repair
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Nut, Speed No.8A
9	Clip, Shroud (2)
10	Seal, Strip
11	Extension, Dividing Wall (Requires Insulation Part No. 469938)
12	Screen, Exhaust Door
13	Wall, Dividing Assembly (Requires Insulation Part No. 469938)
14	Door, Exhaust
15	Guard, Evaporator Impeller
16	Cord, Appliance
17	WPW10141604 Whirlpool Screw
18	Wire, Ground
20	Shroud, Evaporator
21	Plate, Dividing Wall
23	Actuator, Exhaust Door
24	Retainer, Detent Spring
27	Switch, Rotary
28	Control, Temperature
29	Panel, Control
30	Screw, 6-32 x .175
31	Seal, Condenser
32	Seal, Condenser (R.S.)
33	Bracket, Evaporator Mounting
35	Cut-Off, Evaporator Fan
37	Arm, Exhaust Door
39	Clamp, Mounting
40	WP965173 Whirlpool Dishwasher Screw
41	WPL 947596
41	WPL 948414
41	WPL 949177
41	WPL 877399
41	WPL 947561
41	WPL 649939
41	WPL 799351
41	No Drip Tape (For Sweating Tubes)
41	Lacquer, Starlight Gray (1/2 Pt. Uncut)
41	Wire, Red, (25 Ft.)
41	Insulation, Fiberglass (1/4“ x 24“ x 48“)
41	Oil, Turbine 1 Fl. Oz.
41	Wire, 25“ Roll (White 12 GA.)
41	Wire, 25“ Roll (Black 12 GA.)
41	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
41	212643 Whirlpool Refrigerator Permagum Sealer
41	WPL 949810
