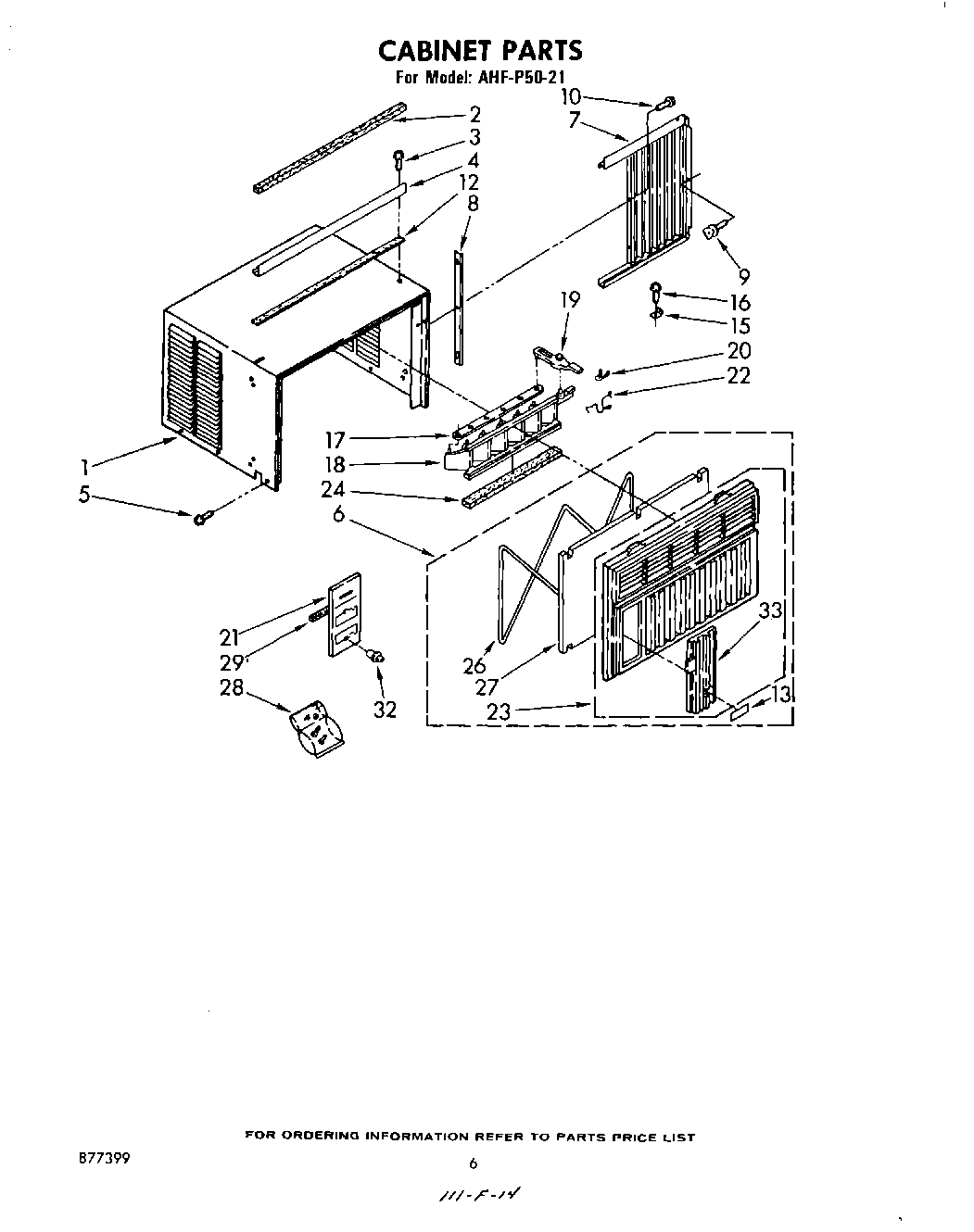

| 1 | Cabinet |
| 2 | Gasket, Meeting Rail |
| 3 | WP308685 Whirlpool Microwave Screw |
| 4 | Channel, Top |
| 5 | WP489128 Whirlpool Refrigerator Screw |
| 6 | Cabinet Front Assembly |
| 7 | Housing, Curtain (L.S.) |
| 7 | Housing, Curtain (R.S.) |
| 8 | Retainer, Curtain (2) |
| 9 | Thumbscrew (2) |
| 10 | Screw, 8 x 7/16 |
| 12 | Seal, Strip |
| 13 | Nameplate |
| 15 | Bracket |
| 16 | Screw, Wood 8-15 x .750 |
| 17 | Link, Louver (2) |
| 18 | Louver, Vertical |
| 19 | Handle, Louver (2) |
| 20 | Detent Spring (2) |
| 21 | Plate, Escutcheon |
| 22 | Clip, Mtg. (2) (Base to Front) |
| 23 | Front Cabinet (Includes Illus. 33) |
| 24 | Seal, Vertical Louver |
| 26 | Retainer, Filter |
| 27 | Filter |
| 28 | Bag, Accessory |
| 29 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 32 | Knob, Control |
| 33 | Door, Control |
