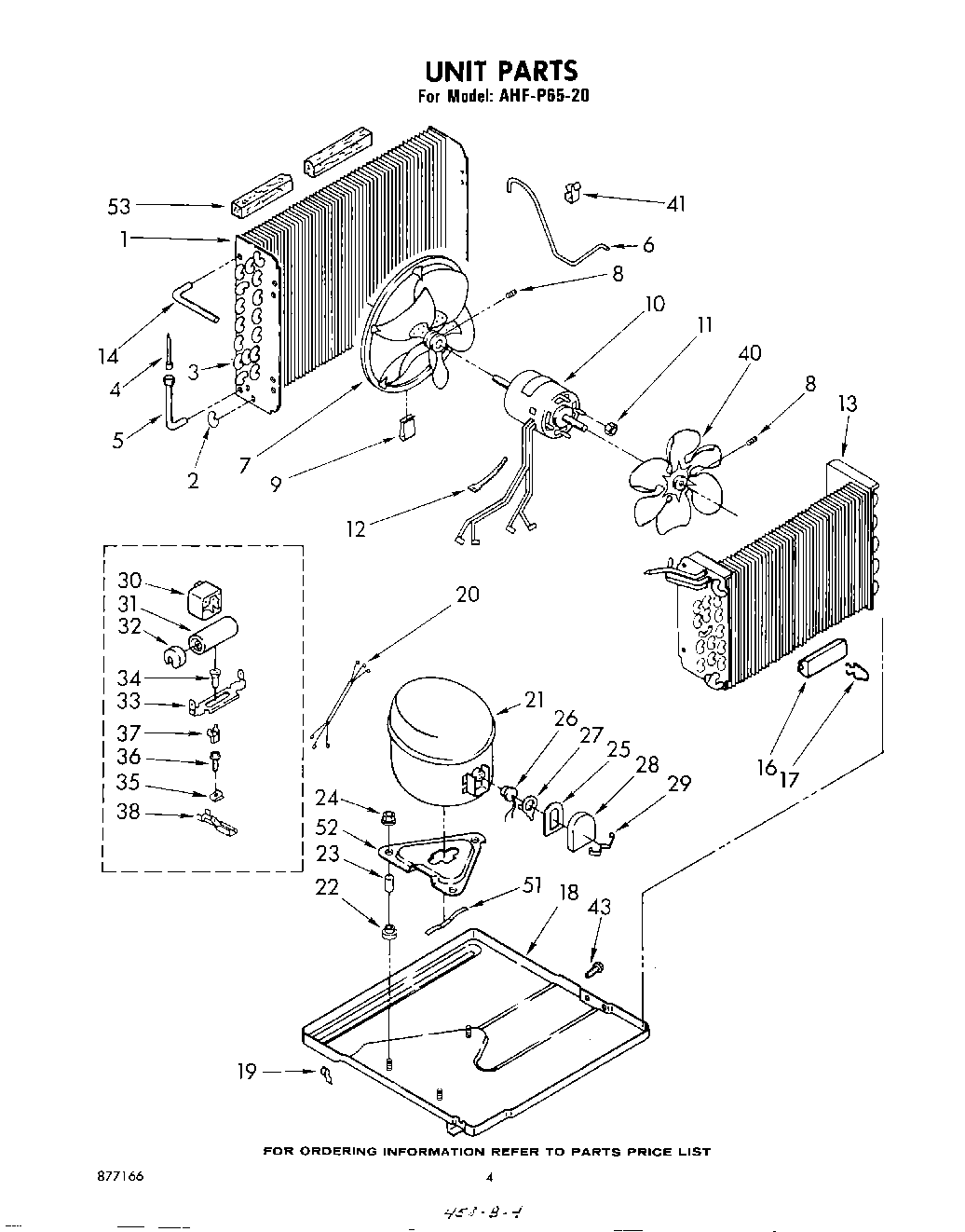

AHFP6520 03 – SECTION

Products

Position	Product
1	Condenser
2	Bend, Return Evaporator (4)
3	Bend, Return Evaporator (11)
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Tube, Restrictor (Length 29.75“)
7	Blade, Fan (Condenser)
8	Setscrew, 5/16 x 1/4
9	Clip, Balancing
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Tube, 90~ Connect
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	Clamp, Tube (2)
20	Harness, Wiring
21	Compressor
22	Grommet, Compressor (3)
23	Sleeve, Compressor (3)
24	Locknut (3)
25	Gasket, Terminal Cover
26	Overload
27	Spring, Overload
28	Cover, Terminal
29	Retainer, Terminal Cover
30	xRelay
31	Capacitor (Component Of Start Kit)
32	Cap, Capacitor (Component Of Start Kit)
33	Bracket, Capacitor (Component Of Start Kit)
34	Screw, 10 x 5/8 (Component Of Start Kit)
35	488660 Whirlpool Refrigerator Nut
36	WP965173 Whirlpool Dishwasher Screw
37	Multiplier, Terminal (Component Of Start Kit)
38	WP90028 Whirlpool Terminal
40	Blade, Fan (Evaporator)
41	Clamp, Wiring
43	WP308685 Whirlpool Microwave Screw
43	WP489069 Whirlpool Compactor Screw
51	Spring, Clip
52	Plate, Compressor
53	212643 Whirlpool Refrigerator Permagum Sealer
53	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
53	VALVE, ACCESS (1/2“)
53	Seal, Condenser Top
53	WP978025 Whirlpool Refrigerator Valve
53	Start Kit
53	WPL 877166
53	978027 Whirlpool Refrigerator Primary Valve
53	978026 Whirlpool Refrigerator Primary Valve
53	978030 Whirlpool Refrigerator Valve
53	Wire, 25“ Roll (Black 12 GA.)
53	Wire, 25“ Roll (White 12 GA.)
53	WPL 649939
53	WPL 484220
53	484184 Whirlpool Air Conditioner Winter Cover
53	No Drip Tape (For Sweating Tubes)
53	Lacquer, Starlight Gray (1/2 Pt. Uncut)
53	WPL 947596
53	Kit, Evaporator Repair (Aluminum Epoxy)
53	Wire, Red, (25 Ft.)
53	Insulation, Fiberglass (1/4“ x 24“ x 48“)
53	Oil, Turbine 1 Fl. Oz.
53	VALVE, ACCESS (5/8“)
53	WPL 799351
53	WPL 948851
