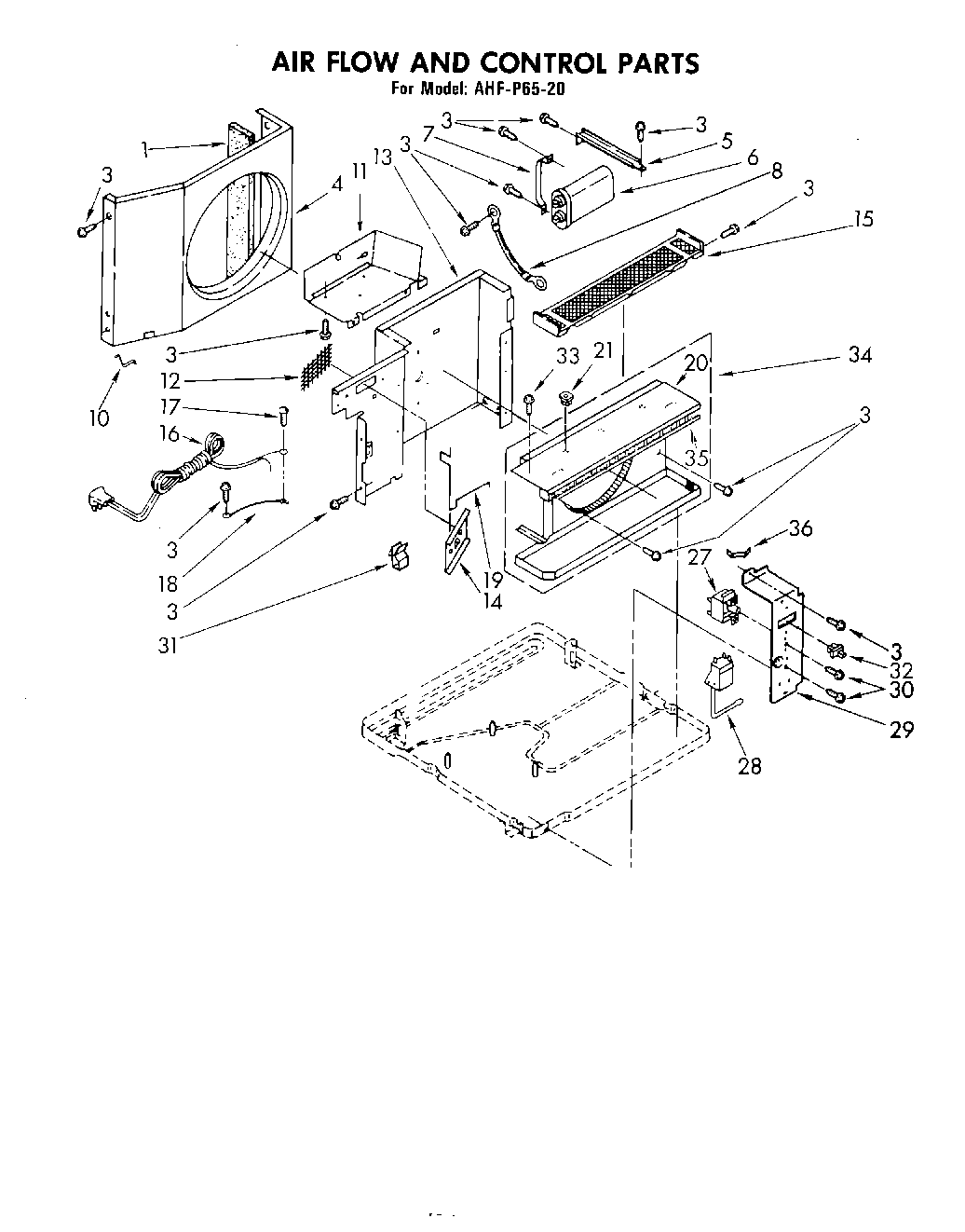

AHFP6520 04 – SECTION

Products

PositionProduct
1WP854334 Whirlpool Air Conditioner Sealing Strip
3WP489069 Whirlpool Compactor Screw
3WP308685 Whirlpool Microwave Screw
4Shroud, Condenser
5support, unit (2)
6Capacitor, Running
7Bracket (Upper)
8Wire, Ground
10Clip, Retainer
11Extension, Dividing Wall (Requires Insulation Part No. 469938)
12Screen, Exhaust Door
13Dividing Wall Assembly (Requires Insulation Part No. 469938)
14Door, Exhaust
15Guard, Evaporator Impeller
16Cord, Appliance
17WPW10141604 Whirlpool Screw
18Wire, Ground
19Arm, Door
20Shroud, Evaporator
21Fastener, snap (2)
27Switch, Rotary
28Control, Temperature
29Panel, Control
30Screw, 6-32 x .175
31Clip, Wiring
32Actuator, Exhaust Door
33WP488729 Whirlpool Refrigerator Door Screw
34Shro\ud,\ Evaporator (Includes Item 11)
35Insulation, Evaporator Cover
36Spring, Retainer
