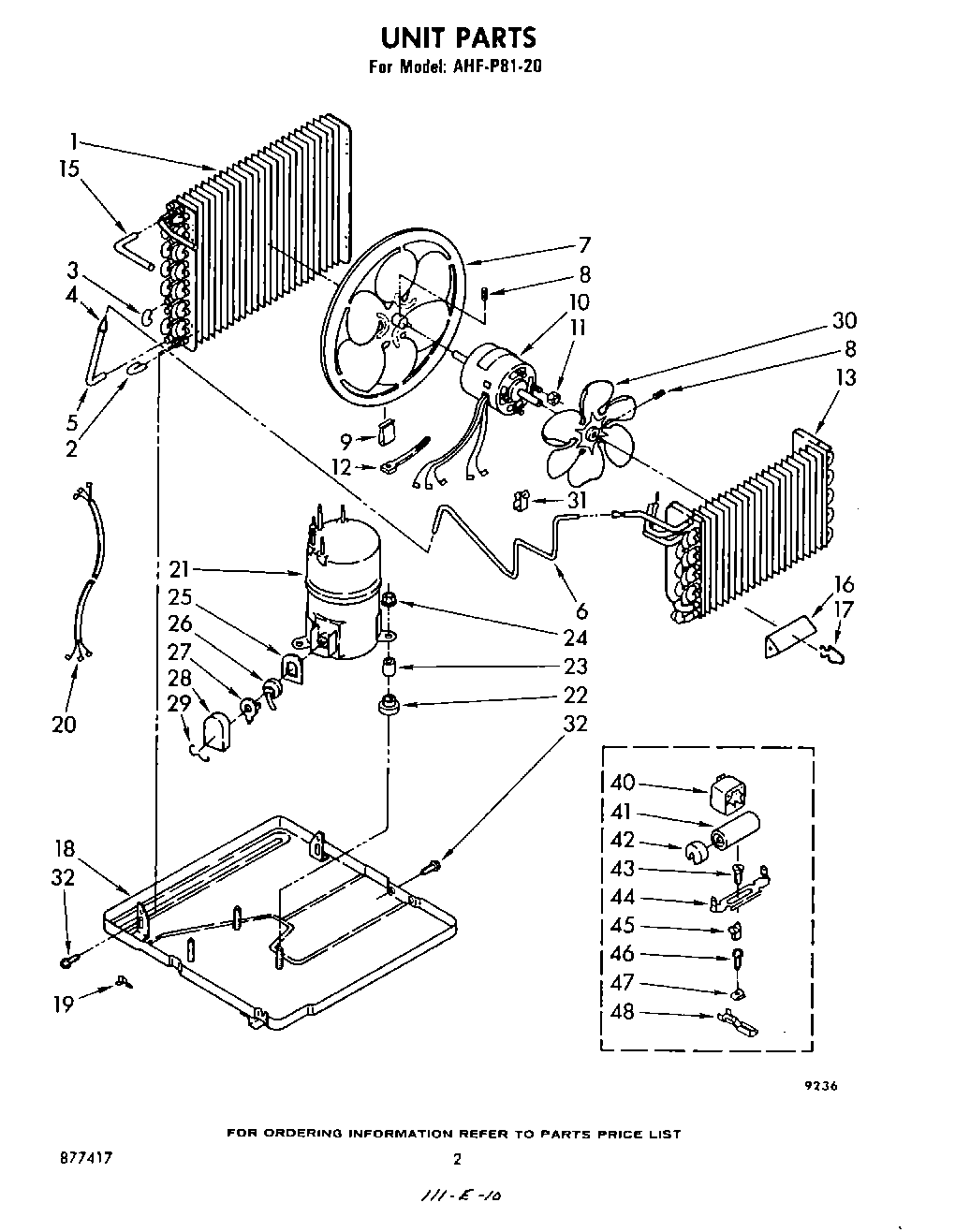

AHFP8120 02 – SECTION

Products

Position	Product
1	Condenser
2	Bend, Return Evaporator (4)
3	Bend, Return Evaporator (11)
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Tube, Restrictor
7	Blade, Fan (Condenser)
8	Setscrew, 5/16 x 1/4
9	Clip, Balancing
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
15	Tube, Outlet Or Inlet (2)
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	Clamp, Tube (2)
20	Harness, Wiring
21	Compressor
22	Grommet, Compressor (3)
23	Sleeve, Compressor (3)
24	Locknut (3)
25	Gasket, Terminal Cover
26	Overload
27	Spring, Overload
28	Cover, Terminal
29	Strap, Terminal Cover
30	Blade, Fan (Evaporator)
31	Clamp, Wiring
32	WP489069 Whirlpool Compactor Screw
32	Screw, Repair
40	Relay (Component Of Start Kit)
41	capacitor (component of start kit)
42	cap, capacitor (component of start kit)
43	Screw, 10 x 5/8 (Component Of Start Kit)
44	Bracket, Capacitor (Component Of Start Kit)
45	Multiplier, Terminal (Component Of Start Kit)
46	WP965173 Whirlpool Dishwasher Screw
47	488660 Whirlpool Refrigerator Nut
48	WP978025 Whirlpool Refrigerator Valve
48	978030 Whirlpool Refrigerator Valve
48	978026 Whirlpool Refrigerator Primary Valve
48	978027 Whirlpool Refrigerator Primary Valve
48	VALVE, ACCESS (1/2“)
48	VALVE, ACCESS (5/8“)
48	Clip, Terminal (Component Of Start Kit)
48	Oil, Turbine 1 Fl. Oz.
48	Kit, Evaporator Repair (Aluminum Epoxy)
48	No Drip Tape (For Sweating Tubes)
48	484184 Whirlpool Air Conditioner Winter Cover
48	WPL 484220
48	WPL 485608
