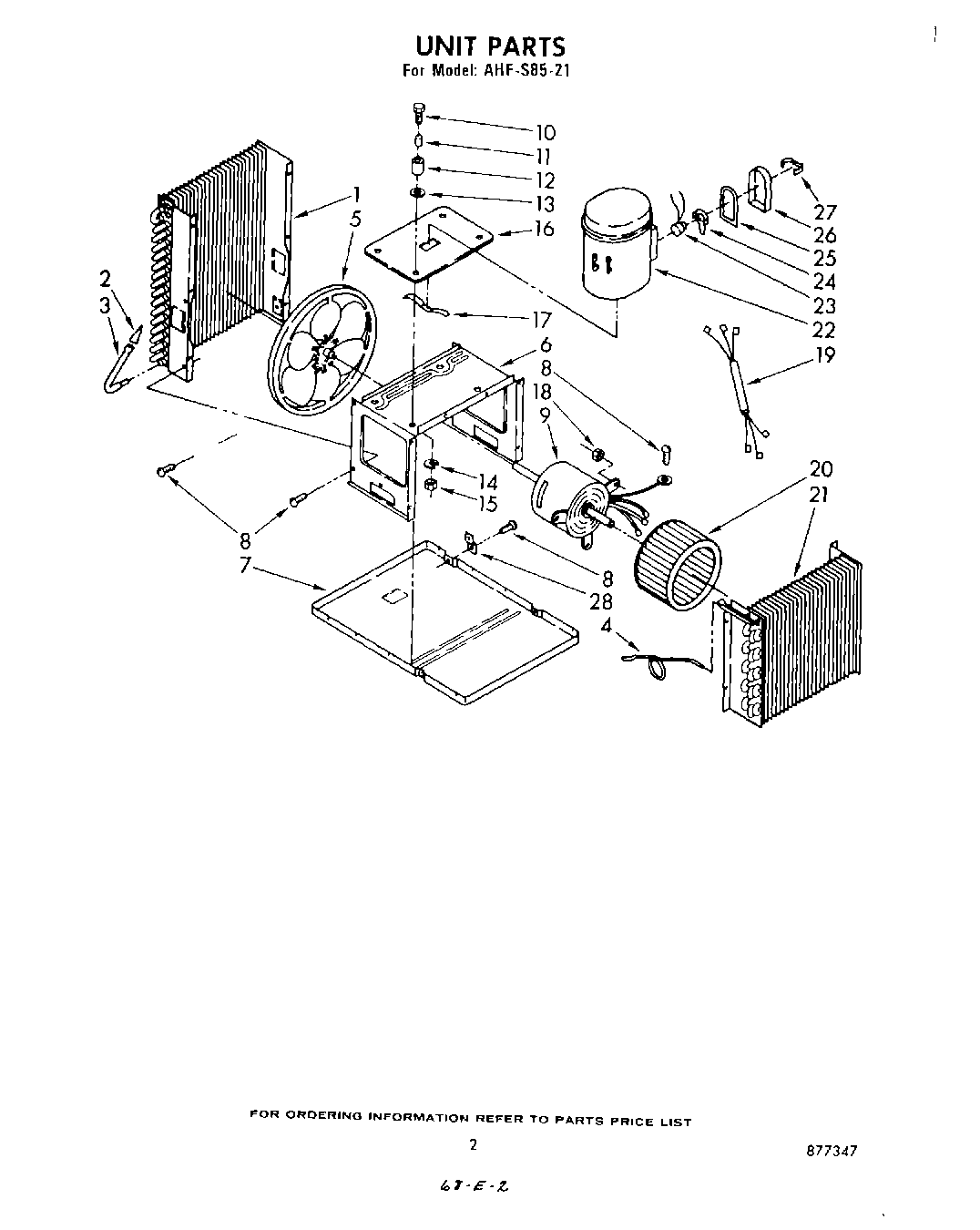

| 1 | CONDENSER |
| 2 | Strainer, Tube |
| 3 | Tube, Strainer |
| 4 | Tube, Restrictor |
| 5 | Fan, Slinger |
| 6 | Mount, Compressor |
| 7 | Base, Assembly |
| 8 | WP965173 Whirlpool Dishwasher Screw |
| 9 | Motor, Fan |
| 10 | Bolt, 5/16 x 1-1/2 (4) |
| 11 | Sleeve (4) |
| 12 | Grommet (4) |
| 13 | WP120393 Whirlpool Washer Assembly |
| 14 | Lockwasher (2) |
| 15 | Nut, 5/16-18 (3) |
| 16 | Plate, Compressor Base |
| 17 | spring, compressor mounting |
| 18 | Nut, Hex No. 1/4 (3) |
| 19 | Harness, Wiring |
| 20 | Wheel, Blower |
| 21 | Evaporator |
| 22 | Compressor |
| 23 | Overload |
| 24 | Spring, Overload |
| 25 | gasket, terminal cover |
| 26 | cover, terminal |
| 27 | Retainer, Terminal |
| 28 | VALVE, ACCESS (5/8``) |
| 28 | No Drip Tape (For Sweating Tubes) |
| 28 | VALVE, ACCESS (1/2``) |
| 28 | WP978025 Whirlpool Refrigerator Valve |
| 28 | 978030 Whirlpool Refrigerator Valve |
| 28 | 978027 Whirlpool Refrigerator Primary Valve |
| 28 | 978026 Whirlpool Refrigerator Primary Valve |
| 28 | Bracket, Condenser Shroud |
