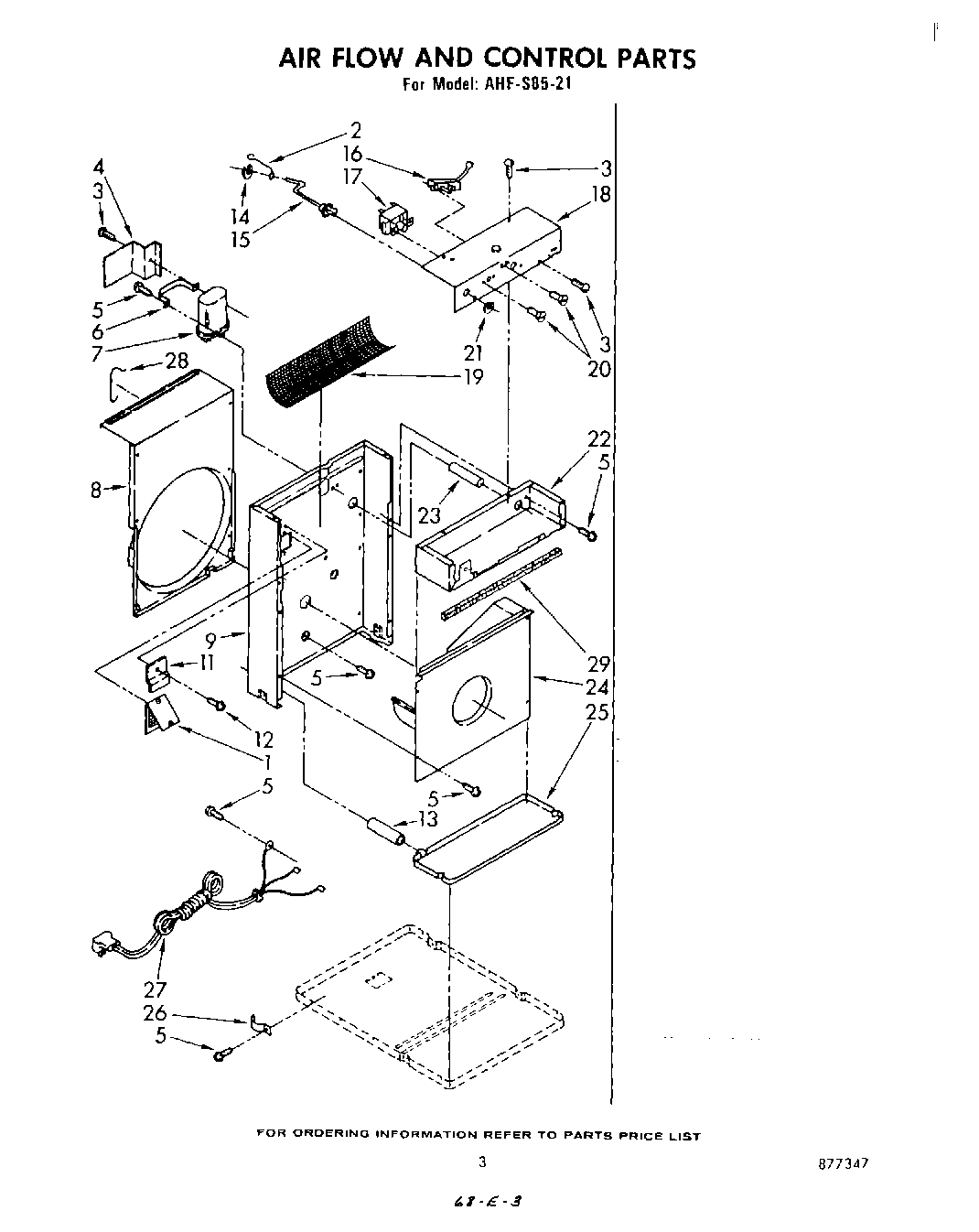

AHFS8521 03 – SECTION

Products

Position	Product
1	Door, Exhaust
2	Link, Wire
3	WP965173 Whirlpool Dishwasher Screw
4	Bracket, Capacitor
5	WP488729 Whirlpool Refrigerator Door Screw
6	Clamp, Capacitor
7	Capacitor, Running (15 MFD)
8	Shroud, Condenser
9	Wall, Dividing Assembly
11	Stop, Exhaust Door
13	Tube, Drain
14	Clip
15	Control, Exhaust Assembly
16	Control, Temperature
17	Switch, Rotary
18	Cover, Control Box
19	Guard, Hazard
20	Screw, Machine 6-32 x .175 (4)
21	Clip, Retainer
22	Box, Control
23	Tube, Wire Guard
24	Housing, Blower Wheel
25	Pan, Drain
26	Clamp
27	Cable, Appliance
28	Retainer, Shroud Cover
29	List, Repair Parts
29	Seal, Strip
29	Guide, Use & Care
29	Sheet, Tech & Wiring Diagram
29	Wire, Red, (25 Ft.)
29	212643 Whirlpool Refrigerator Permagum Sealer
29	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
29	Wire, 25“ Roll (Black 12 GA.)
29	Wire, 25“ Roll (White 12 GA.)
29	WPL 799351
29	Insulation, Fiberglass (1/4“ x 24“ x 48“)
29	Lacquer, Starlight Gray (1/2 Pt. Uncut)
29	Guide, Energy
