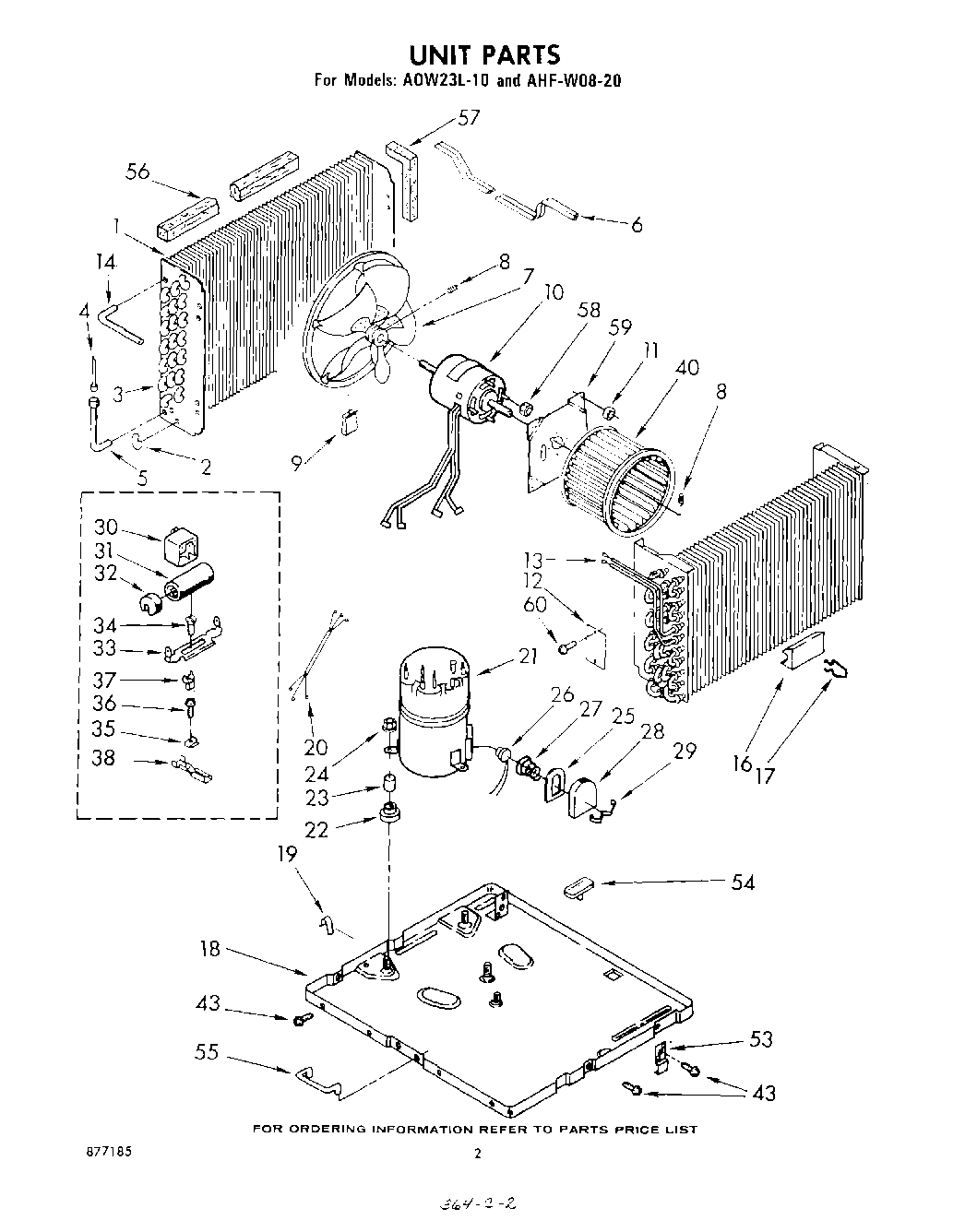

AHFW0820 02 – SECTION

Products

Position	Product
1	Condenser
2	Bend, Return Evaporator (4)
3	Bend, Return Evaporator (11)
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Tube, Restrictor (2)
7	Blade, Fan
8	Setscrew, 5/16 x 1/4
9	Clip, Balancing
10	Motor, Fan
11	Nut, Hex (4)
12	Cover, Tube Opening
13	Evaporator
14	Tube Inlet
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	Clamp, Restrictor Tube
20	Harness, Wiring
21	Compressor
22	Grommet, Compressor (3)
23	Sleeve, Compressor (3)
24	Locknut (3)
25	Gasket, Terminal Cover
26	Overload
27	Spring, Overload
28	Cover, Terminal
29	Strap, Terminal Cover
30	Relay (Component Of Start Kit)
31	capacitor (component of start kit)
32	cap, capacitor (component of start kit)
33	Bracket, Capacitor (Component Of Start Kit)
34	Screw, 10 x 5/8 (Component Of Start Kit)
35	488660 Whirlpool Refrigerator Nut
37	Multiplier, Terminal (Component Of Start Kit)
38	Clip, Terminal (Component Of Start Kit)
40	Wheel, Blower
43	Screw, Repair
43	WP489069 Whirlpool Compactor Screw
53	WPL 647824
54	WPL 647850
55	WPL 647971
56	WPL 649609
57	WPL 649610
58	WP488130 Whirlpool Air Conditioner Nut
59	WPL 998024
60	Insulation, Cabinet (L.S.)
60	WPL 949062
60	WPL 877185
60	WPL 949060
60	xInsulation, Cabinet (Top)
60	WPL 484220
60	Wire, 25“ Roll (Black 12 GA.)
60	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
60	WP978025 Whirlpool Refrigerator Valve
60	978030 Whirlpool Refrigerator Valve
60	978027 Whirlpool Refrigerator Primary Valve
60	978026 Whirlpool Refrigerator Primary Valve
60	212643 Whirlpool Refrigerator Permagum Sealer
60	WP965173 Whirlpool Dishwasher Screw
60	Wire, 25“ Roll (White 12 GA.)
60	WPL 799351
60	Oil, Turbine 1 Fl. Oz.
60	VALVE, ACCESS (1/2“)
60	WPL 647847
60	WPL 485608
60	Cover, Winter (27 x 19 x 6 to 27“)
60	No Drip Tape (For Sweating Tubes)
60	Lacquer, Starlight Gray (1/2 Pt. Uncut)
60	Kit, Evaporator Repair (Aluminum Epoxy)
60	Wire, Red, (25 Ft.)
60	VALVE, ACCESS (5/8“)
