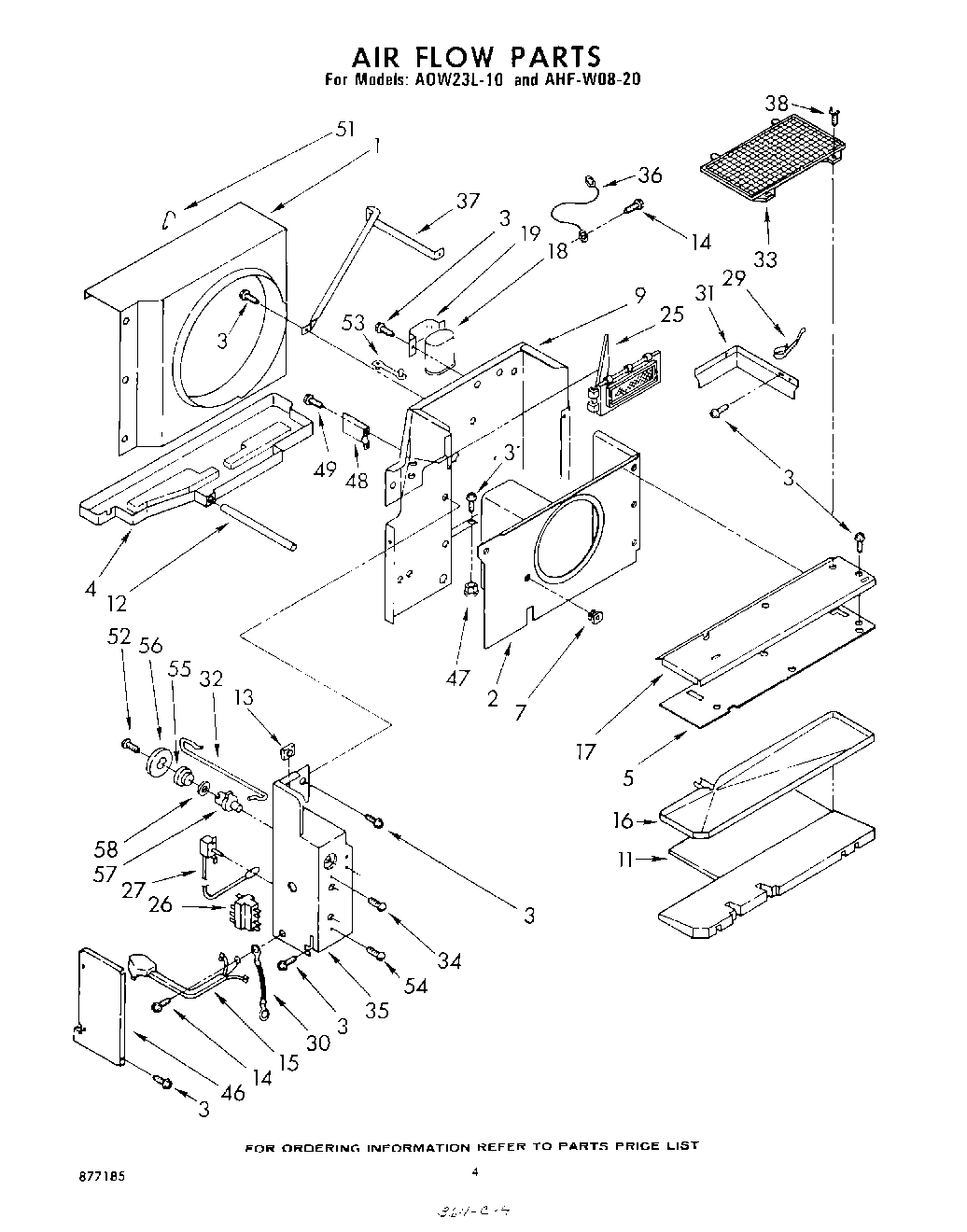

AHFW0820 03 – SECTION

Products

Position	Product
1	Shroud, Condenser
2	Housing, Blower Wheel
3	WP489069 Whirlpool Compactor Screw
3	Screw, Repair
4	Pan, Condenser Condensate
5	Insulation, Evaporator Cover
7	Fastener, snap (2)
9	Wall, Dividing (Requires 649939 Insulation)
11	Insulation, Condensate Pan
12	Tube, Condensate
13	Grommet
14	WPW10141604 Whirlpool Screw
15	Cable, Appliance
16	Pan, Evaporator Condensate
17	Cover, Evaporator
18	Capacitor, Compressor
19	Bracket (Lower)
19	Bracket (Upper)
25	Door, Exhaust
26	Switch, Pushbutton
27	Control, Temperature
29	Spring, Door
30	Wire, Ground
31	Channel, Wiring
32	Wire, C
33	Guard, Evaporator Impeller
34	Screw, 6-32 x .175
35	Box, Control
36	Wire, Ground
37	Support, Unit
38	WP488729 Whirlpool Refrigerator Door Screw
46	Dividing Wall Assembly, L.S.
47	Clip, Speed
48	Cover, Wall
49	WP965173 Whirlpool Dishwasher Screw
51	Clip, Shroud (3)
52	WP488787 Whirlpool Refrigerator Screw
53	Clamp, Cable
54	Screw, 6-20 x .362
55	Bushing, Shaft
56	Cam, Exhaust
57	Shaft, Control
58	Washer
