AHH24DZH1 ROOM AIR CONDITIONER

Products

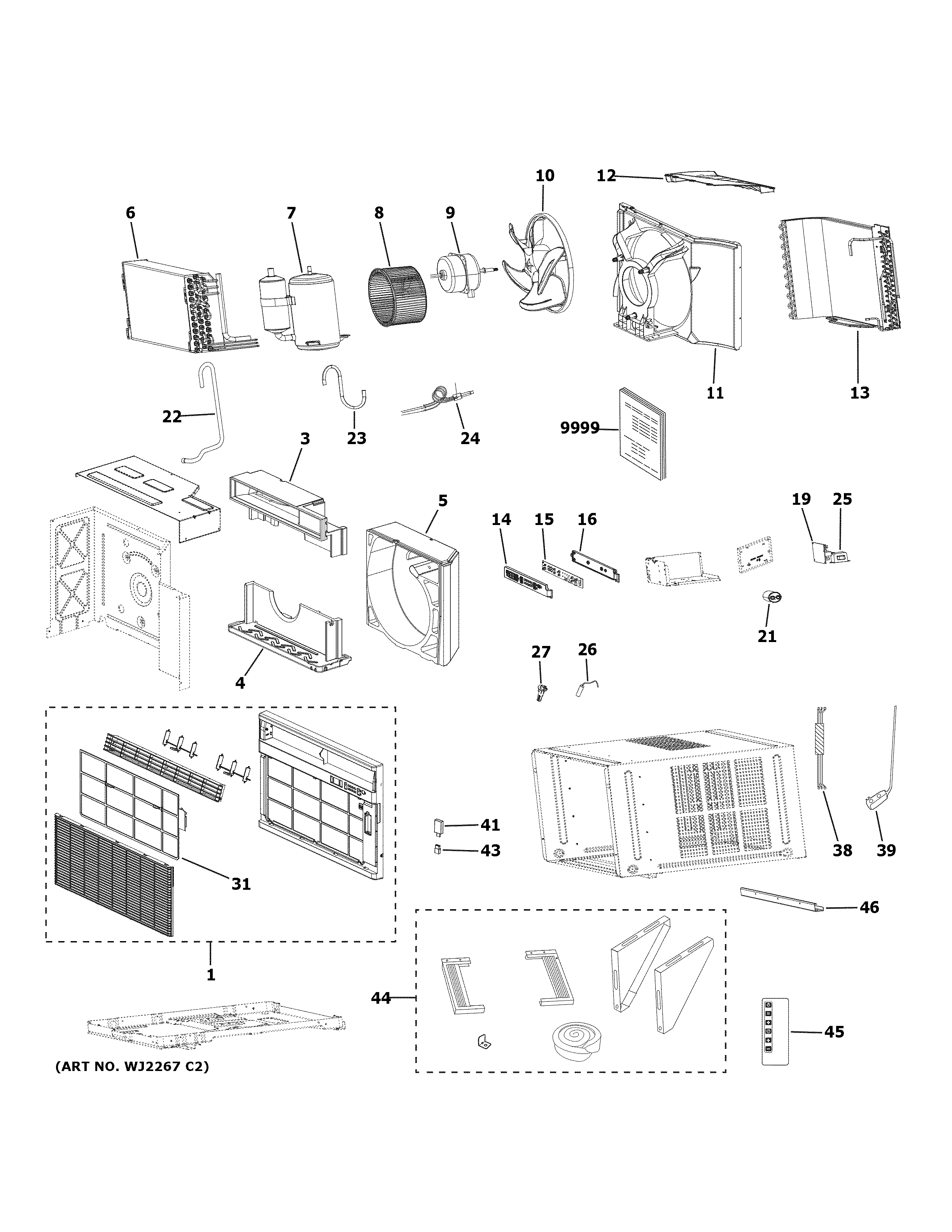

PositionProduct
1WJ71X26256 GE Front Panel Assembly
3WJ76X23950 GE Indoor Fan Shroud Upper
4WJ76X23951 GE Indoor Fan Shroud
5WJ76X23949 GE Indoor Fan Shroud Lower
6WJ87X26255 GE Evaporator
7WJ98X22128 GE Air Conditioner Compressor
8WJ76X22121 GE Indoor Fan Blade
9WJ94X22119 GE Fan Motor
10WJ73X20130 GE Air Conditioner Axial Fan
11WJ76X23948 GE Outdoor Shroud Fan
12WJ76X20154 GE Rear Cover Board
13WJ88X22944 GE Condenser Assembly
14WJ26X23868 GE Air Conditioner UI Board Cover
15WJ26X23922 GE Air Conditioner IU Control Board
16WJ26X23867 GE Air Conditioner UI Board Support
19WJ26X22123 GE Air Conditioner Main Control Board
21WJ20X23956 GE Capacitor
22WJ53X24347 GE Suction Tube
23WJ53X24757 GE Dishwasher Discharge Tube
24WJ53X22127 GE Capillary Tube
25WJ27X22872 GE Air Conditioner Transformer
26WJ26X22173 GE Air Conditioner Thermistor
27WJ01X23351 GE Induction Thermo Pipe Clip
31WJ85X23947 GE Air Conditioner Filter
38WJ36X10023 GE Harness
39POWER CORD
41WJ01X23911 GE Air Conditioner WiFi Module
43WJ35X23893 GE Wiring Harness
44WJ43X22122 GE Installation Parts
45WJ26X27734 GE Remote
46WJ86X23672 GE Top Rail
9999PM MINI MANUAL
9999PM OWNERS AND INSTALL
