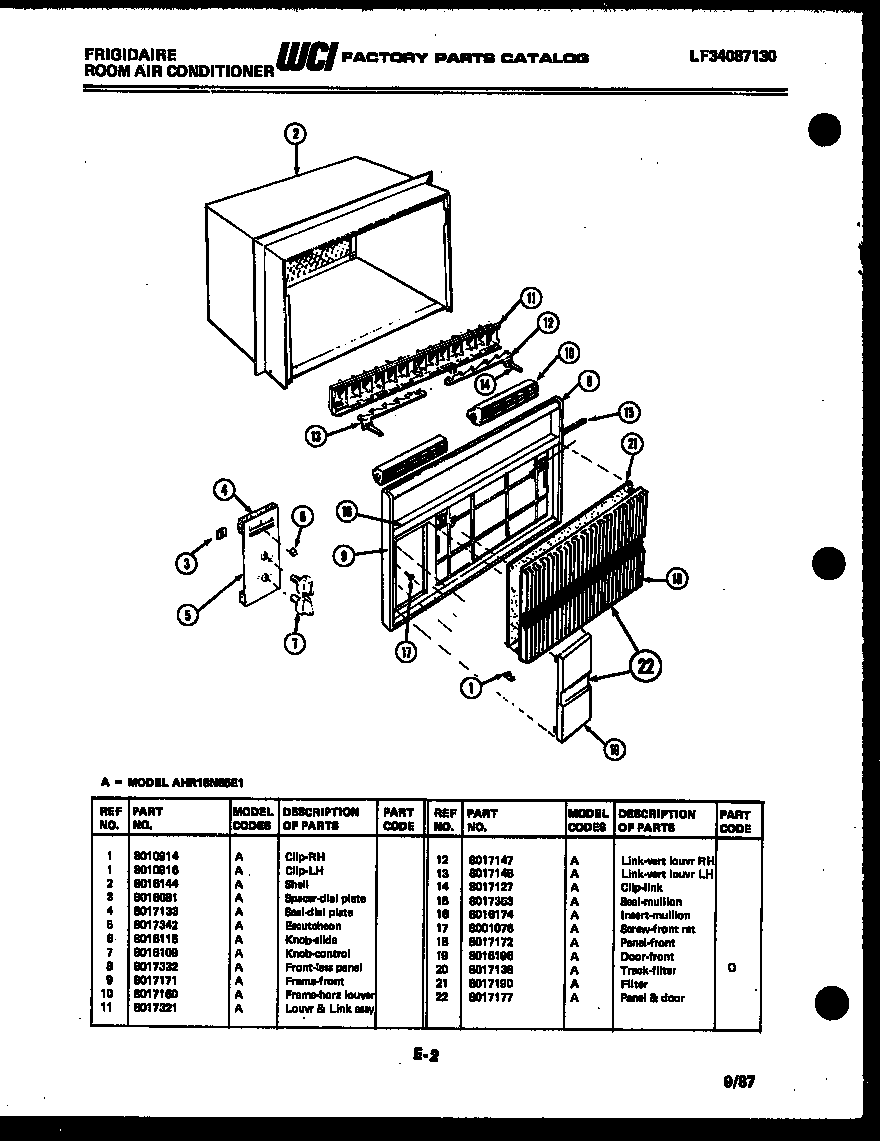

AHR18NS5E1 02 – CABINET PARTS

Products

Position	Product
1	CLIP-FRONT TO BASE
1	CLIP-FRT TO BASE LH
2	WCI 8016144
3	SPACER-DIAL PLATE
4	SEAL-DIAL PLATE
5	WCI 8017342
6	KNOB-SLIDE CONTROL
7	WCI 8016109
8	WCI 8017332
9	WCI 8017171
10	FRAME-HORIZONTAL LOUVER
11	FRM & LOUVER ASSY
12	LINK-RH
13	LINK-LH
14	CLIP-LINK DETENT
15	WCI 8017353
16	INSERT-MULLION (NON-ILLUSTRATED)
17	SCREW-FRONT
18	WCI 8017172
19	DOOR-FRONT
20	TRACK – FILTER
21	FILTER-AIR FRAMED
22	PANEL & DOOR ASSEMBLY
